NSN 3120-01-540-1977 S-48-L, S48L, 12486623
Product Details | CAM FOLLOWER PLAIN BEARING
3120-01-540-1977 A detachable assembly, which provides rolling contact with a cam or similar device, and converts reciprocating or oscillating motion to linear motion. The assembly consists of an outer ring and and integral stud. It does not employ rolling elements but may incorporate nonmetallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also CAM FOLLOWER, NEEDLE BEARING.
Part Alternates: S-48-L, S48L, 12486623, 3120-01-540-1977, 01-540-1977, 3120015401977, 015401977
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 MAY 2006 | 01-540-1977 | 42390 ( BEARING, PLAIN, CAM FOLLOWER ) |
Drawings & Photos | NSN 3120-01-540-1977
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-540-1977
Related Products | NSN 3120-01-540-1977
Technical Data | NSN 3120-01-540-1977
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

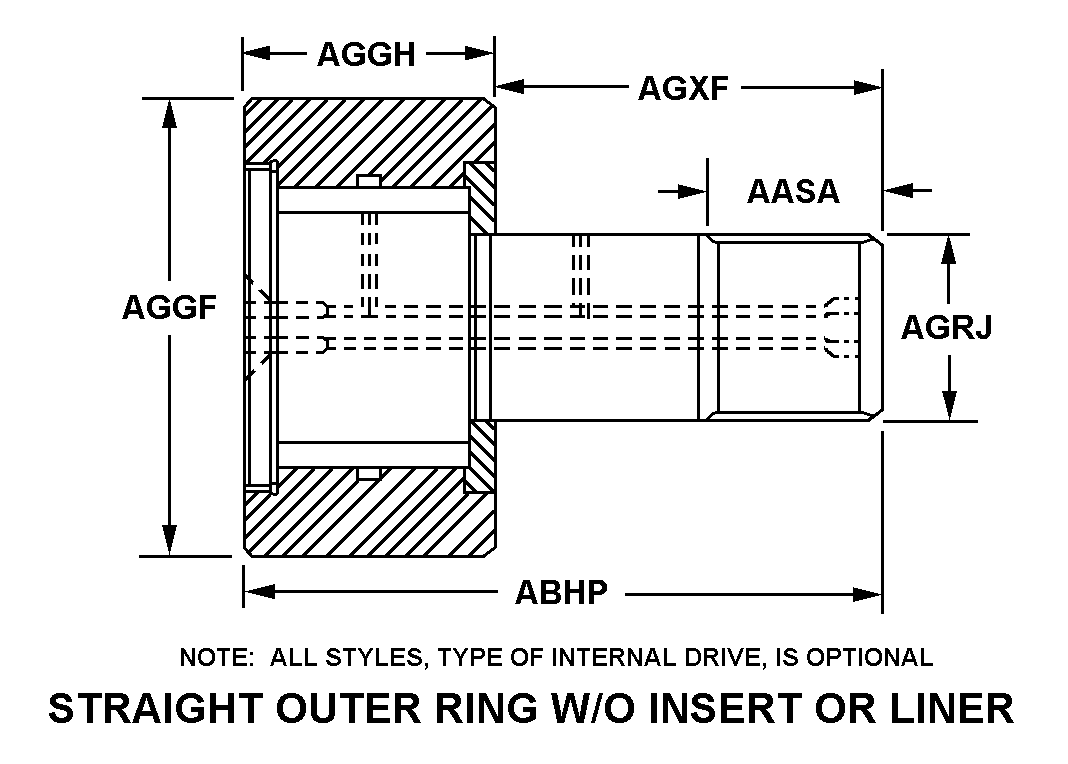

| STYLE DESIGNATOR | 35B STRAIGHT OUTER RING W/O INSERT OR LINER |
| THREAD LENGTH | 0.7500 INCHES NOMINAL |
| STUD DIAMETER | 0.6250 INCHES MINIMUM AND 0.6260 INCHES MAXIMUM |
| OVERALL LENGTH | 2.4020 INCHES MINIMUM AND 2.4070 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.4990 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| STUD LENGTH | 1.5000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | END ITEM NSN: 2330-01-508-7887; NEXT HIGHER ASSEMBLY IS 12486590 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | 1-1/2 DIA. CAM FOLLOWER |
Restrictions/Controls & Freight Information | NSN 3120-01-540-1977
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-540-1977
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
