NSN 3120-01-528-7864 BACB28AK05030, BACB28AK05-030, 01-528-7864
Product Details | SLEEVE BUSHING
3120-01-528-7864 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: BACB28AK05030, BACB28AK05-030, 3120-01-528-7864, 01-528-7864, 3120015287864, 015287864
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 MAR 2005 | 01-528-7864 | 13206 ( BUSHING, SLEEVE ) |

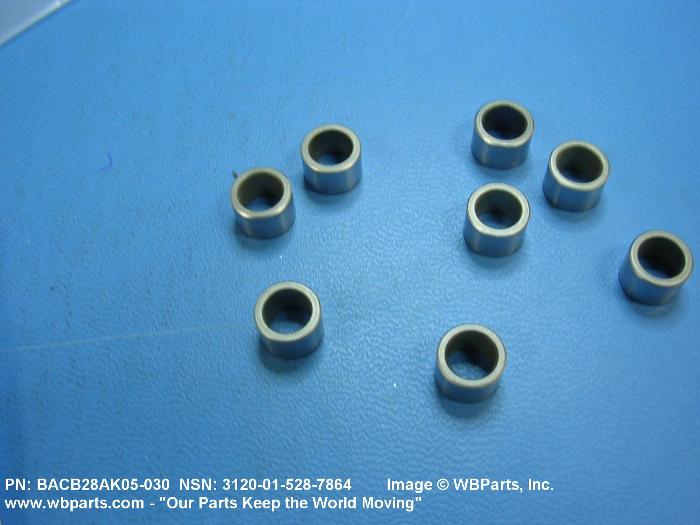

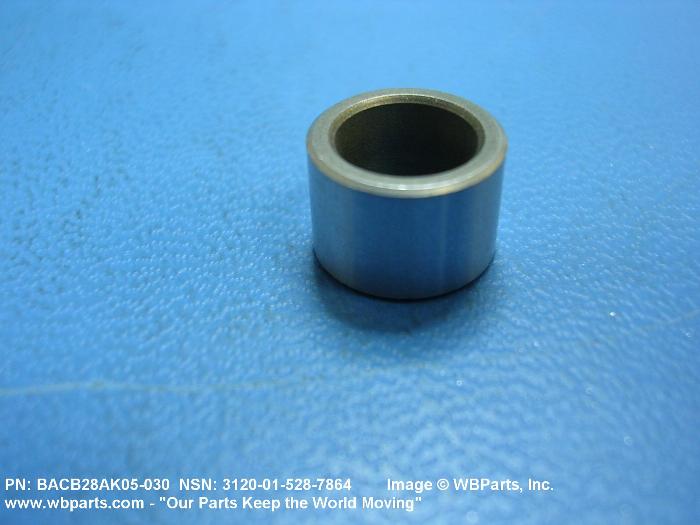

Drawings & Photos | NSN 3120-01-528-7864
Demand History | NSN 3120-01-528-7864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-528-7864 | 2018-05-135 | 261 | DIBBS |
| BACB28AK05030 | 2010-04-103 | 100 | US |
| 3120-01-528-7864 | 2008-06-154 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-528-7864
Technical Data | NSN 3120-01-528-7864
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 ASSN STD SINGLE MATERIAL RESPONSE AND AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE OUTSIDE DIAMETER SURFACE OF BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-QQ-C-320, CL 2, .001 TO .002 ASSN STD SINGLE TREATMENT RESPONSE OUTSIDE DIAMETER SURFACE OF BODY |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.3000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.4365 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.3125 INCHES MINIMUM AND 0.3130 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-528-7864
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
