NSN 3120-01-520-9283 BACB28AT06B024C, 01-520-9283, 015209283
Product Details | SLEEVE BUSHING
3120-01-520-9283 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: BACB28AT06B024C, 3120-01-520-9283, 01-520-9283, 3120015209283, 015209283
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 02 JUN 2004 | 01-520-9283 | 13206 ( BUSHING, SLEEVE ) |

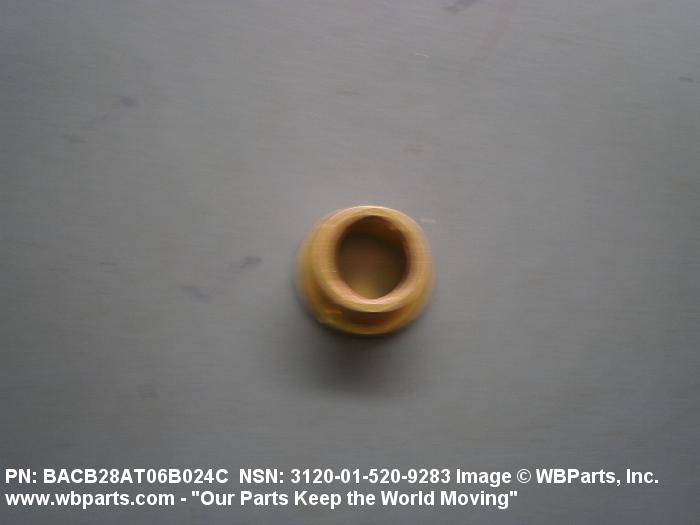

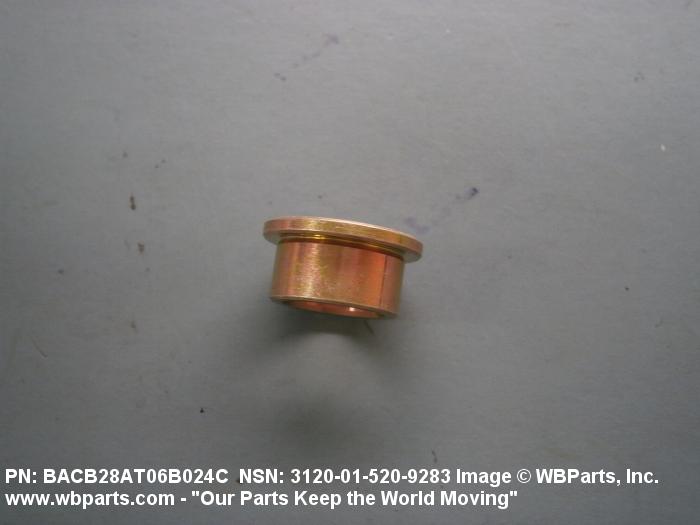

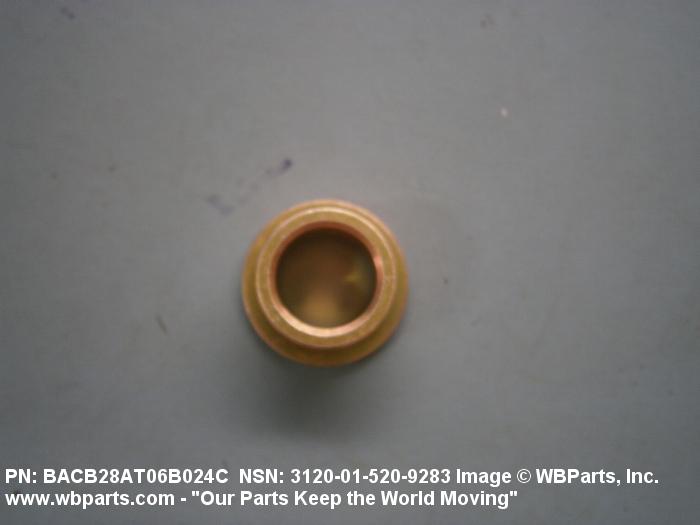

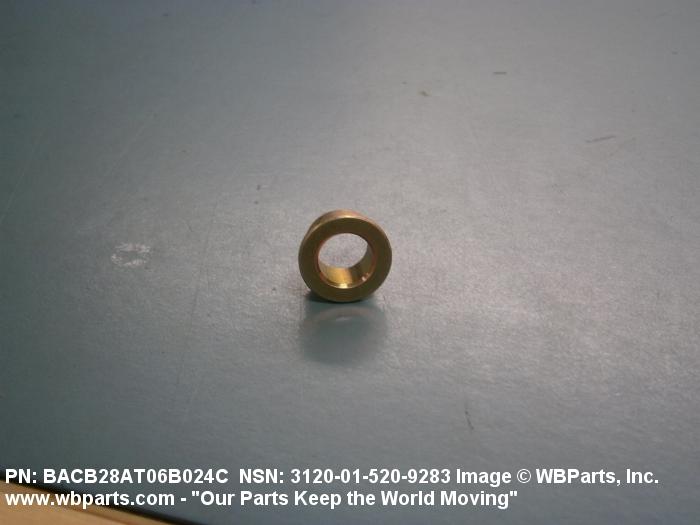

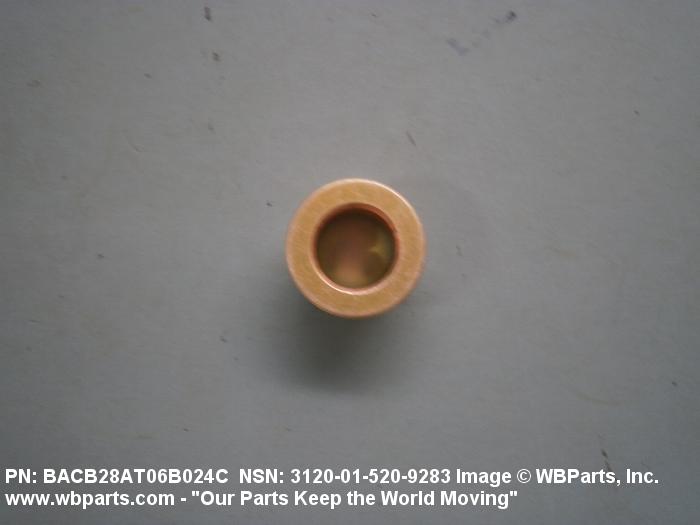

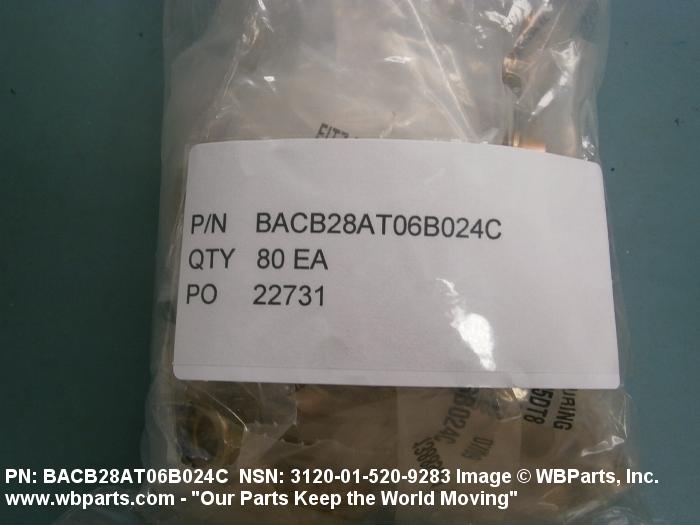

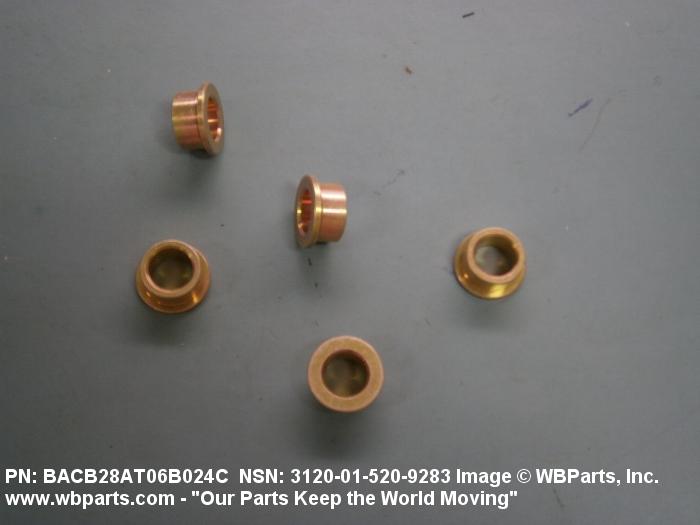

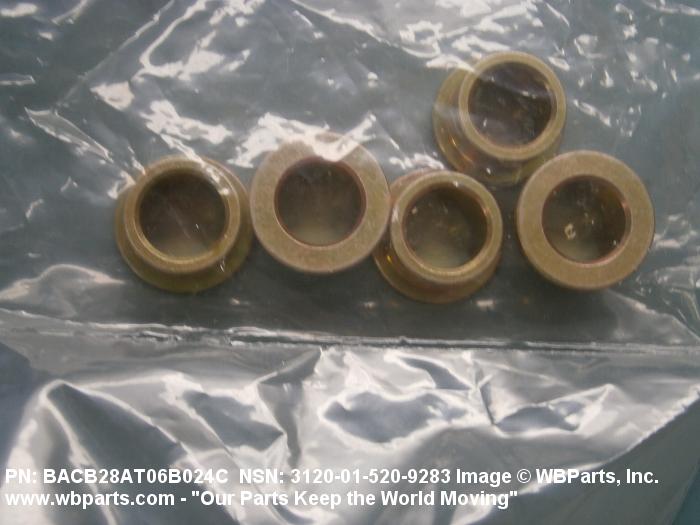

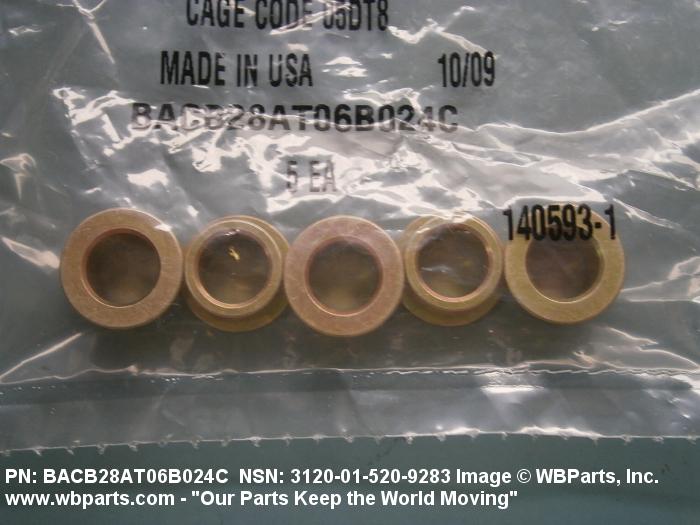

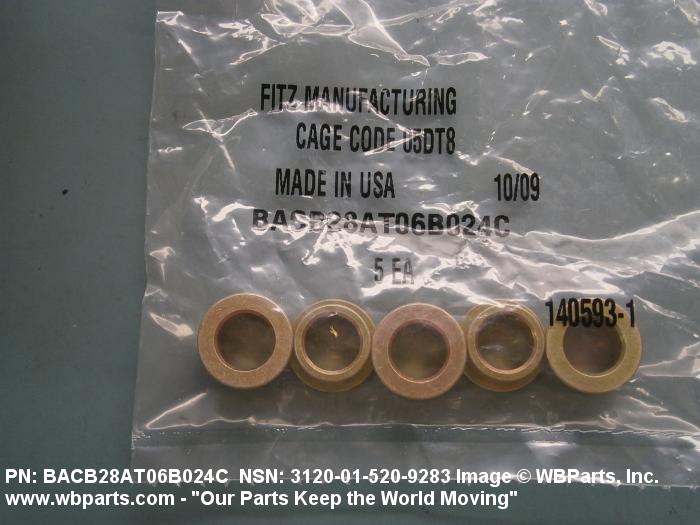

Drawings & Photos | NSN 3120-01-520-9283
Demand History | NSN 3120-01-520-9283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACB28AT06B024C | 2013-12-344 | 199 | Poland |
| BACB28AT06B024C | 2013-06-158 | 80 | United States |
Cross Reference | NSN 3120-01-520-9283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACB28AT06B024C | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-520-9283
Technical Data | NSN 3120-01-520-9283
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM AND COPPER ALLOY AND NICKEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.3000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.5010 INCHES MINIMUM AND 0.5016 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.3590 INCHES MINIMUM AND 0.3660 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.6200 INCHES MINIMUM AND 0.6300 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0600 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 250.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 63.0 MICROINCHES LEFT END SURFACE OF BODY AND FLANGE 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLANGE 63.0 MICROINCHES RIGHT END SURFACE OF BODY 63.0 MICROINCHES RIGHT END SURFACE OF LEFT FLANGE |
| SPECIFICATION/STANDARD DATA | 81205-BACB28AT MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 3120-01-520-9283
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
