NSN 3120-01-510-5609 PCR 1-3/8, PCR138, 01-510-5609
Product Details | CAM FOLLOWER PLAIN BEARING
3120-01-510-5609 A detachable assembly, which provides rolling contact with a cam or similar device, and converts reciprocating or oscillating motion to linear motion. The assembly consists of an outer ring and and integral stud. It does not employ rolling elements but may incorporate nonmetallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also CAM FOLLOWER, NEEDLE BEARING.
Part Alternates: PCR 1-3/8, PCR138, 3120-01-510-5609, 01-510-5609, 3120015105609, 015105609
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 JUL 2003 | 01-510-5609 | 42390 ( BEARING, PLAIN, CAM FOLLOWER ) |
Drawings & Photos | NSN 3120-01-510-5609
Cross Reference | NSN 3120-01-510-5609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PCR 1-3/8 | 45092 | JASON INCORPORATED DBA OSBORN INTERNATIONAL A UNIT OF |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-510-5609
Technical Data | NSN 3120-01-510-5609
| Characteristic | Specifications |
|---|---|

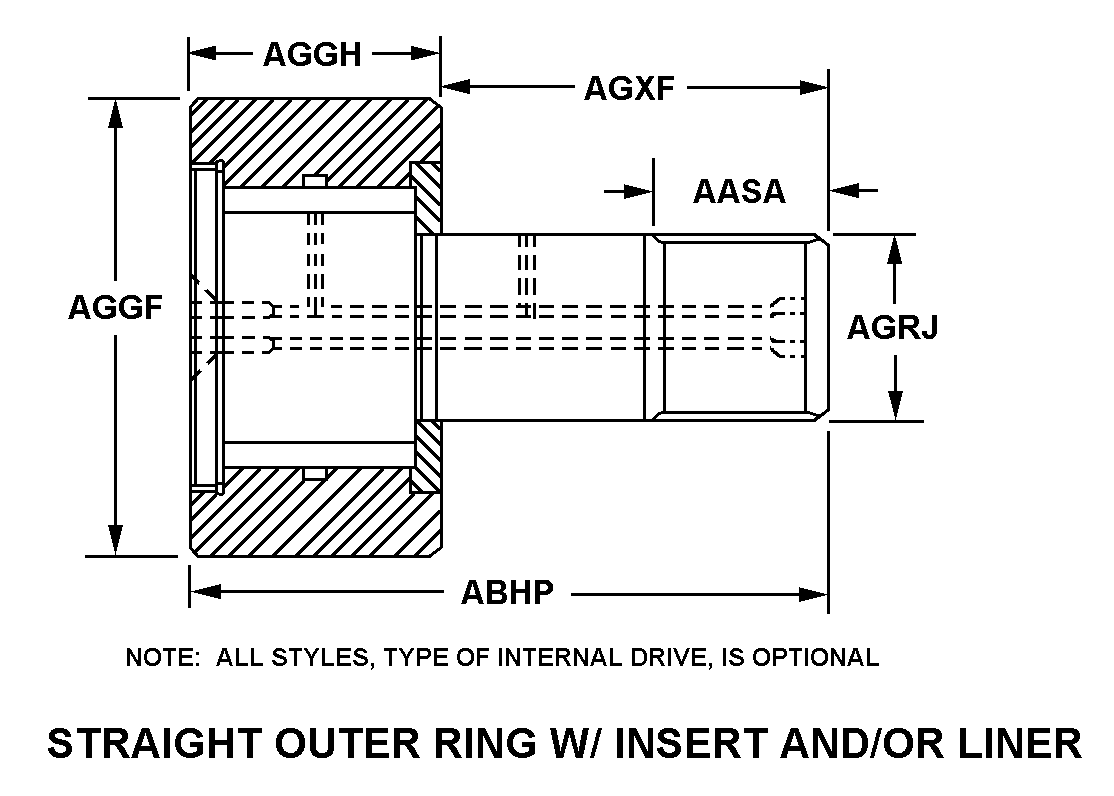

| STYLE DESIGNATOR | 35A STRAIGHT OUTER RING W/INSERT AND/OR LINER |
| THREAD LENGTH | 0.6250 INCHES NOMINAL |
| STUD DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL LENGTH | 2.0000 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 1.3750 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.7500 INCHES NOMINAL |
| STUD LENGTH | 1.2500 INCHES NOMINAL |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.5000 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | CAM RUNNERS ARE MANUFACTURED WITH TWO SYNTHETIC COMPOSITE MATERIALS FOR THE OUTER TREAD AND INNER BEARING SURFACE. THE STUD IS MADE OF STAINLESS STEEL.THERE ARE NO ROLLING ELEMENTS IN THIS CAM RUNNER.SHOULDER LENGTH IS 1/16TH INCH.DYNAMIC LOAD CAPACITY IS 1100 LBS.NOT RECOMMENDED FOR AMBIENT TEMPERATURES OVER 250 DEGREES F, ABRASSIVE APPLICATIONS OR REPEATED HEAVY SHOCK LOADS. |
| III END ITEM IDENTIFICATION | VDS SUPPORT UNIT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CAM RUNNER |
Restrictions/Controls & Freight Information | NSN 3120-01-510-5609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-510-5609
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
