NSN 3120-01-494-9921 L3053651003, L3053651-003, 01-494-9921
Product Details | SLEEVE BEARING
3120-01-494-9921 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: L3053651003, L3053651-003, 3120-01-494-9921, 01-494-9921, 3120014949921, 014949921
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 MAR 2002 | 01-494-9921 | 13205 ( BEARING, SLEEVE ) |

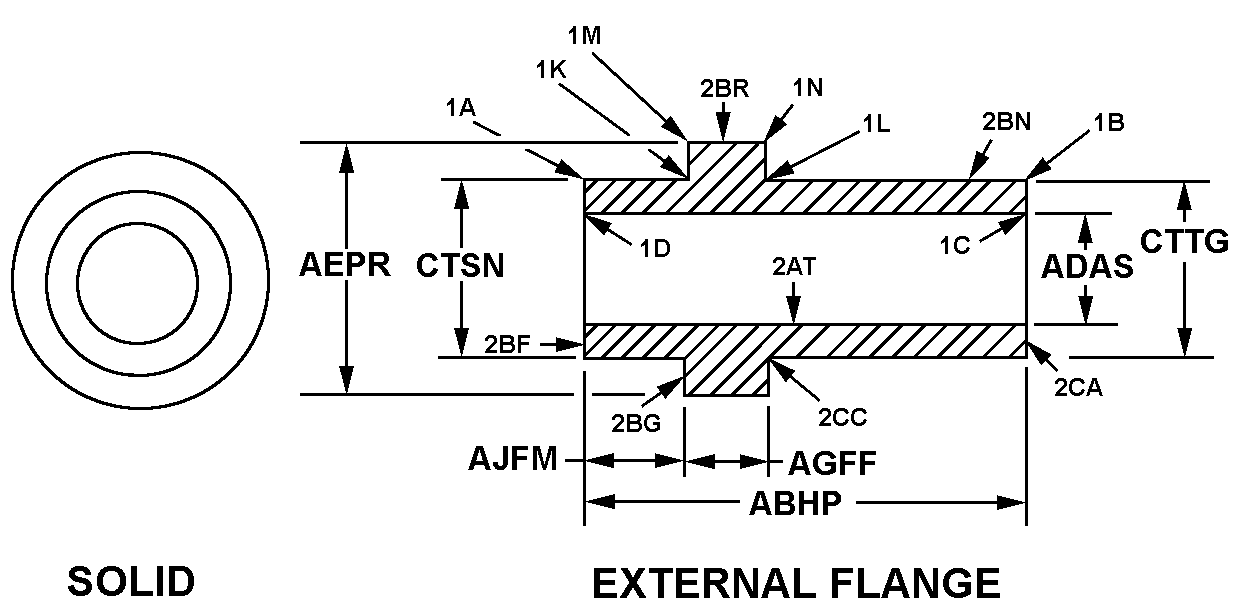

Drawings & Photos | NSN 3120-01-494-9921
Cross Reference | NSN 3120-01-494-9921
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L3053651-003 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-494-9921
Technical Data | NSN 3120-01-494-9921
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| STYLE DESIGNATOR | 21C-2 SOLID INTERIOR FLANGE(S) NOT LOCATED AT EITHER END |
| OVERALL LENGTH | 0.7840 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.1870 INCHES MINIMUM AND 1.8750 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.4370 INCHES NOMINAL |
| FLANGE WIDTH | 0.0630 INCHES NOMINAL |
| INTERIOR FLANGE HOLE DIAMETER | 1.0620 INCHES NOMINAL |
| INTERIOR FLANGE LEFT END TO CENTERLINE DISTANCE | 0.6910 INCHES NOMINAL |
| INTERIOR FLANGE WIDTH | 0.5880 INCHES MINIMUM AND 0.5980 INCHES MAXIMUM |
| END TO FLANGE DISTANCE | 0.0630 INCHES NOMINAL |
| LEFT END BODY DIAMETER | 1.3100 INCHES MINIMUM AND 1.3140 INCHES MAXIMUM |
| RIGHT END BODY DIAMETER | 1.3100 INCHES MINIMUM AND 1.3140 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SPECIAL FEATURES | INSERT3120010844834 |
| III END ITEM IDENTIFICATION | B1B |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RETAINER UPPER WING PIVOT FAIRING,ZF24.875,YF899.50,CTD,BEA RING |
Restrictions/Controls & Freight Information | NSN 3120-01-494-9921
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-494-9921
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | EK | SX:B-1 |
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
