NSN 3120-01-484-0470 74D295015, 74D2950151001, 74D295015-1001
Product Details | TRACK ROLLER PLAIN BEARING
3120-01-484-0470 A detachable assembly consisting of an outer and inner ring, designed for use in a track roller or similar application. It is used to carry a load and reduce sliding friction. It does not employ rolling elements, but may incorporate non-metallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also BEARING, BALL, TRACK ROLLER; and BEARING, ROLLER, TRACK ROLLER. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 74D295015, 74D2950151001, 74D295015-1001, 3120-01-484-0470, 01-484-0470, 3120014840470, 014840470
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 APR 2001 | 01-484-0470 | 42389 ( BEARING, PLAIN, TRACK ROLLER ) |

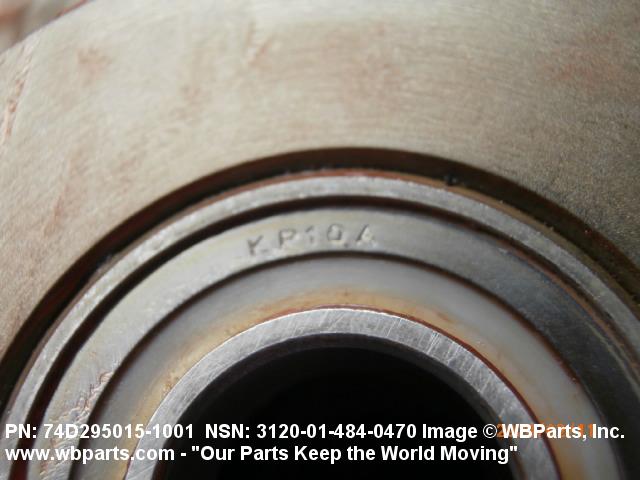

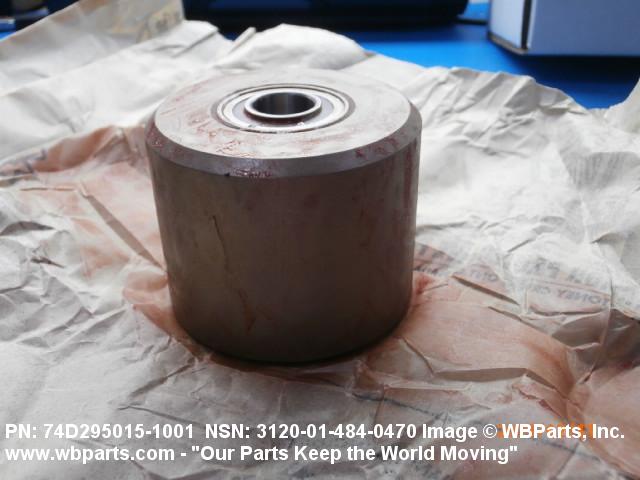

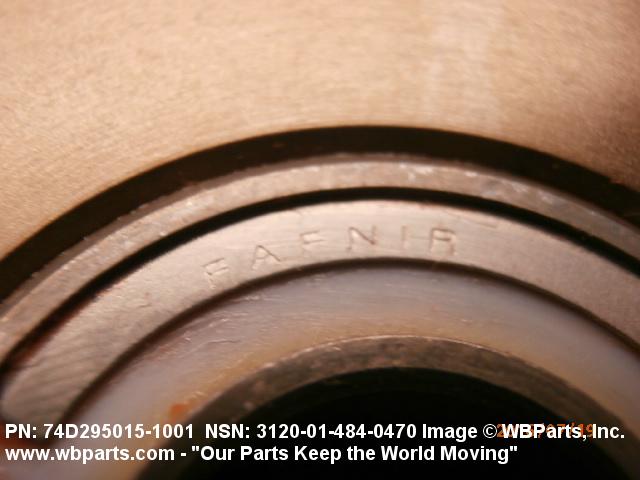

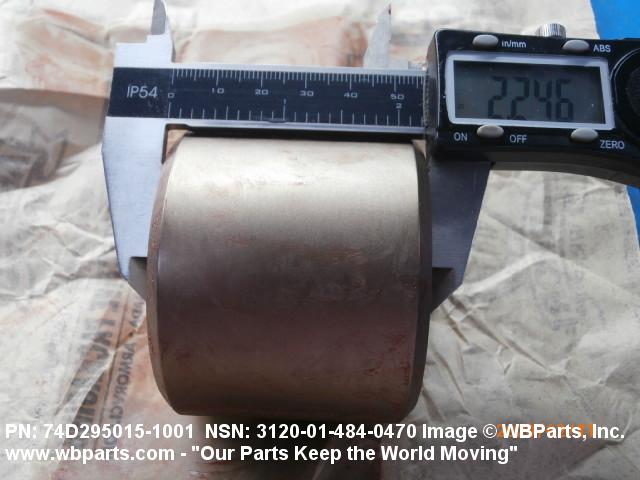

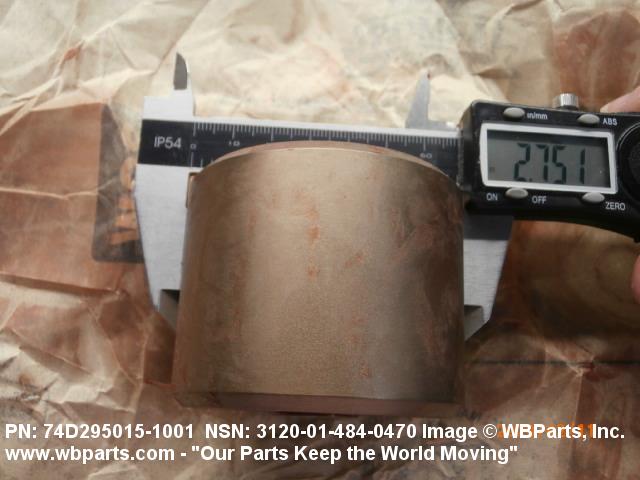

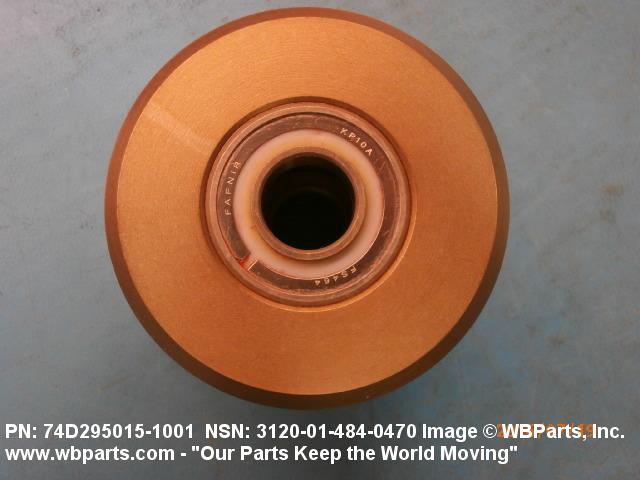

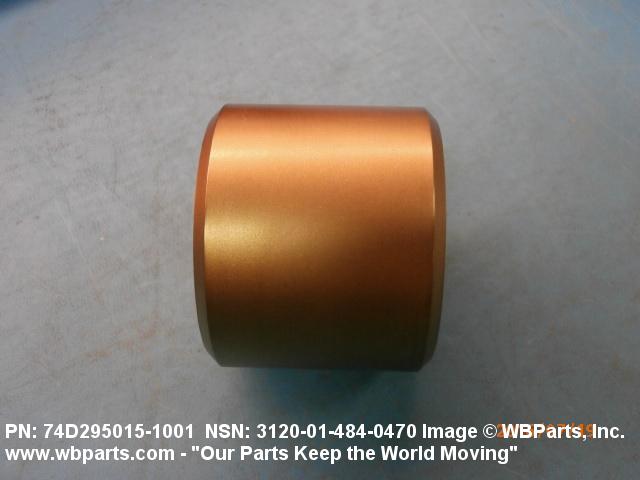

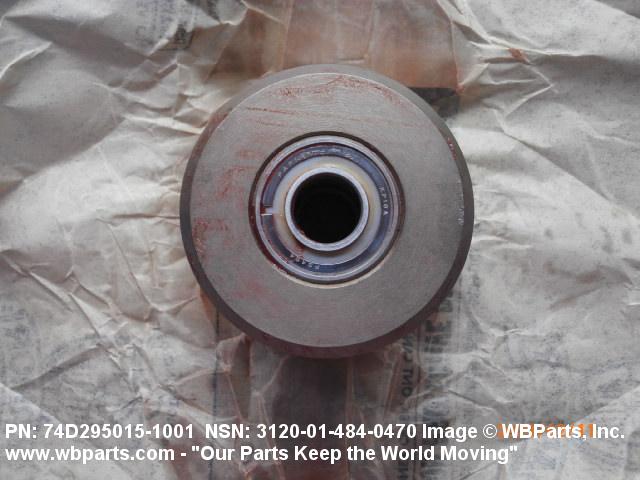

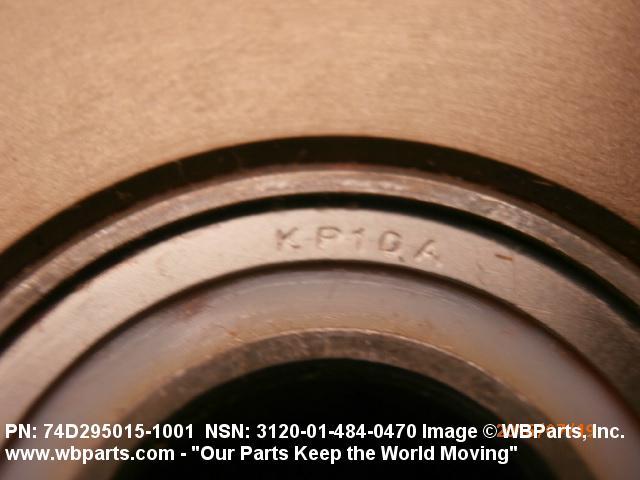

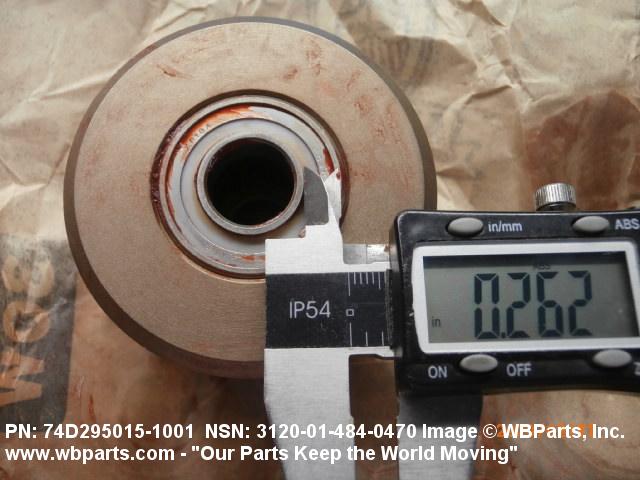

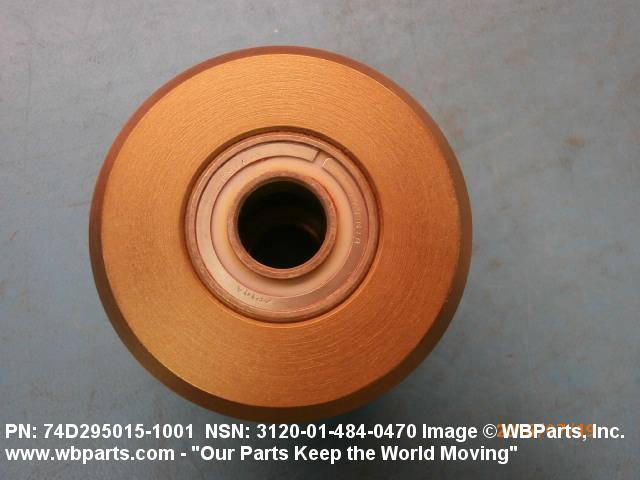

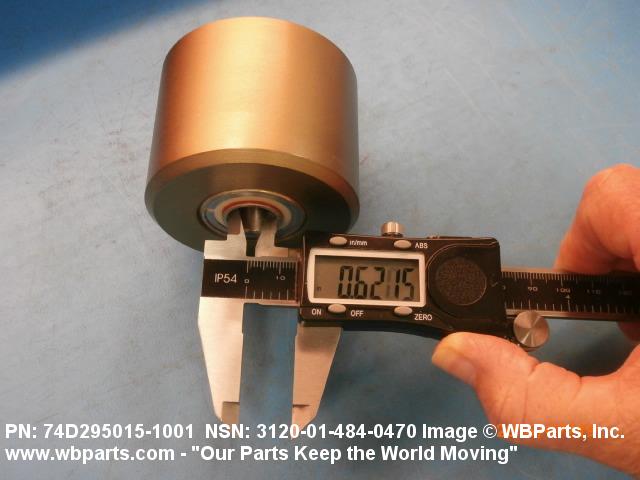

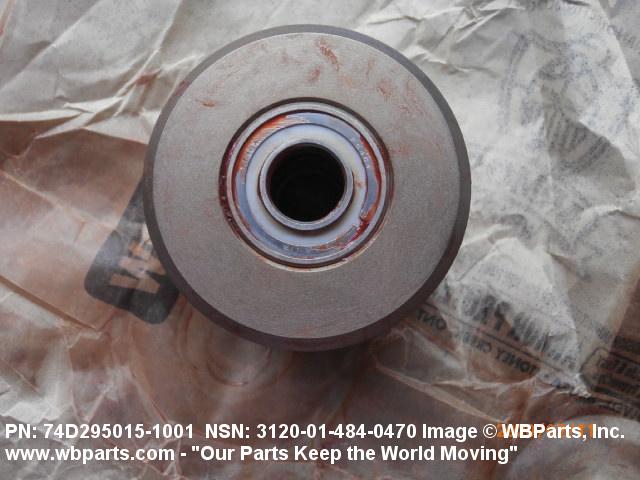

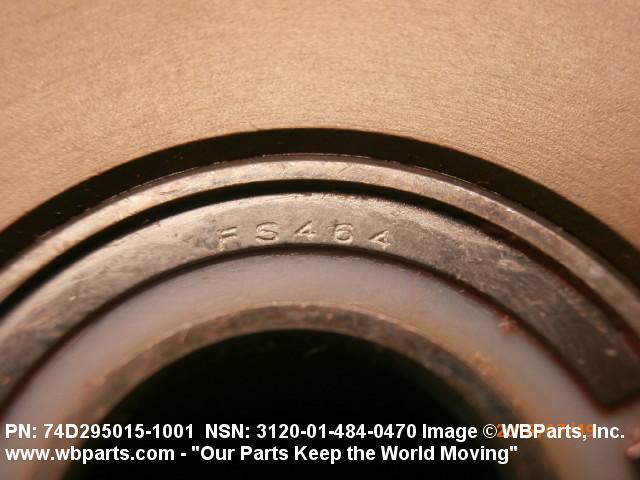

Drawings & Photos | NSN 3120-01-484-0470
Demand History | NSN 3120-01-484-0470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74D2950151001 | 2020-02-35 | 1 | United States |
| 3120-01-484-0470 | 2016-06-181 | 2 | United States |
| 3120-01-484-0470 | 2016-05-146 | 21 | DIBBS |
| 3120-01-484-0470 | 2016-05-124 | 21 | DIBBS |
| 3120-01-484-0470 | 2016-04-97 | 4 | DIBBS |
| 74D295015 | 2008-07-196 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-484-0470
Technical Data | NSN 3120-01-484-0470
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

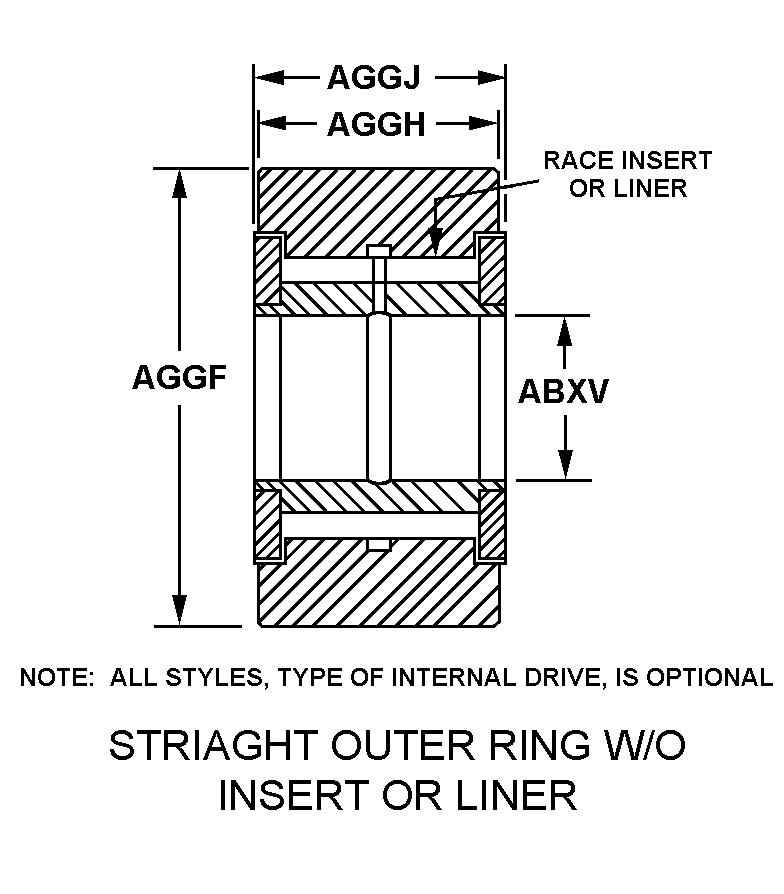

| STYLE DESIGNATOR | 38B STRAIGHT OUTER RING W/O INSERT OR LINER |
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 0.2630 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 2.7500 INCHES NOMINAL |
| INNER MEMBER WIDTH | 2.2500 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM ASSEMBLED W/TWO MS27641-10; BEARING, BALL, AIRFRAME AND ONE 74D295015-2001; WHEEL |
| III END ITEM IDENTIFICATION | ADAPTER, GRND; F/A-18E/F HORNET ACFT |
Restrictions/Controls & Freight Information | NSN 3120-01-484-0470
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-484-0470
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
