NSN 3120-01-478-5701 NAS77A5028, NAS77A5-028, NAS77A528
Product Details | SLEEVE BUSHING

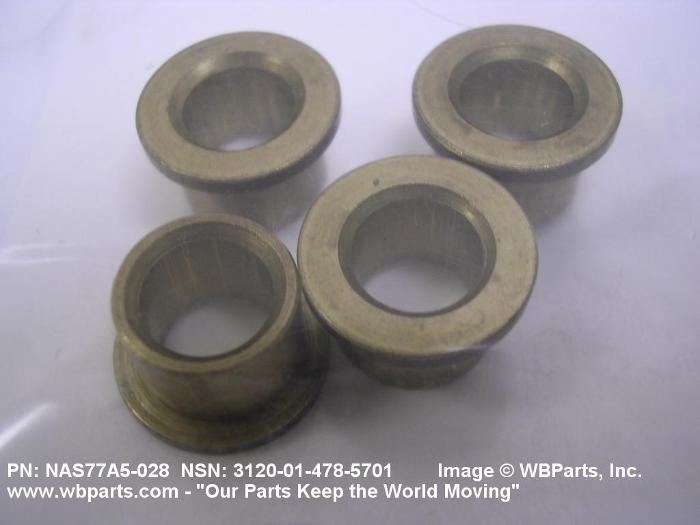

3120-01-478-5701 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77A5028, NAS77A5-028, NAS77A528, NAS77A5-28, 3120-01-478-5701, 01-478-5701, 3120014785701, 014785701
Bearings | Bearings, Plain, Unmounted
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
31 | 19 SEP 2000 | 01-478-5701 | 13206 ( BUSHING, SLEEVE ) |
Demand History | NSN 3120-01-478-5701
Part Number | Request Date | QTY | Origin |
---|---|---|---|
NAS77A528 | 2018-04-96 | 2 | US |
3120-01-478-5701 | 2014-07-211 | 100 | Taiwan |
3120-01-478-5701 | 2013-05-136 | 2 | US |
NAS77A528 | 2012-06-163 | 3 | United States |
NAS77A528 | 2012-06-163 | 6 | United States |
NAS77A528 | 2012-06-163 | 12 | United States |
NAS77A528 | 2007-03-79 | 4 | United States |
NAS77A528 | 2007-02-59 | 10 | US |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 3120-01-478-5701
Technical Data | NSN 3120-01-478-5701
Characteristic | Specifications |
---|---|
MATERIAL | COPPER ALLOY 642 OR COPPER ALLOY 630 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-465 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-B-6946 MIL SPEC SINGLE MATERIAL RESPONSE OR AMS 4640 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
STYLE DESIGNATOR | 22C SOLID |
OVERALL LENGTH | 0.3320 INCHES MINIMUM AND 0.3470 INCHES MAXIMUM |
BODY OUTSIDE DIAMETER | 0.4381 INCHES MINIMUM AND 0.4386 INCHES MAXIMUM |
BODY INSIDE DIAMETER | 0.3125 INCHES MINIMUM AND 0.3140 INCHES MAXIMUM |
FLANGE OUTSIDE DIAMETER | 0.5520 INCHES MINIMUM AND 0.5720 INCHES MAXIMUM |
FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
CORNER SHAPE | SQUARE ALL CORNERS |
SPECIFICATION/STANDARD DATA | 80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
III PART NAME ASSIGNED BY CONTROLLING AGENCY | BUSHING, FLANGED |
Restrictions/Controls & Freight Information | NSN 3120-01-478-5701
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 114800 | BEARING,ROLLER,THRUST |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 742 | unknown |
Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
