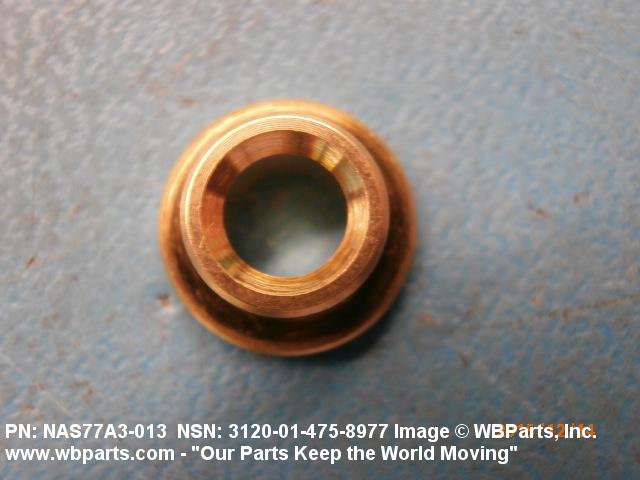

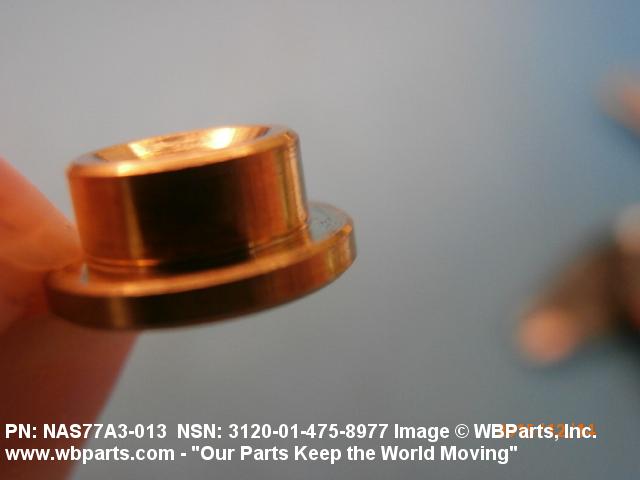

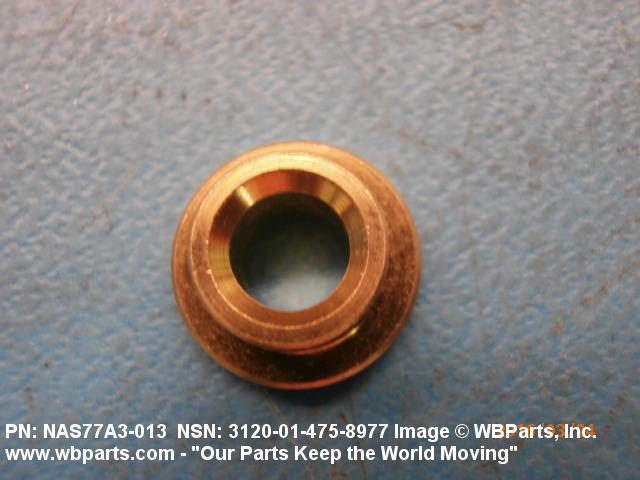

NSN 3120-01-475-8977 NAS77A3013, NAS77A3-013, 01-475-8977
Product Details | SLEEVE BUSHING
3120-01-475-8977 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77A3013, NAS77A3-013, 3120-01-475-8977, 01-475-8977, 3120014758977, 014758977
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 JUN 2000 | 01-475-8977 | 13206 ( BUSHING, SLEEVE ) |

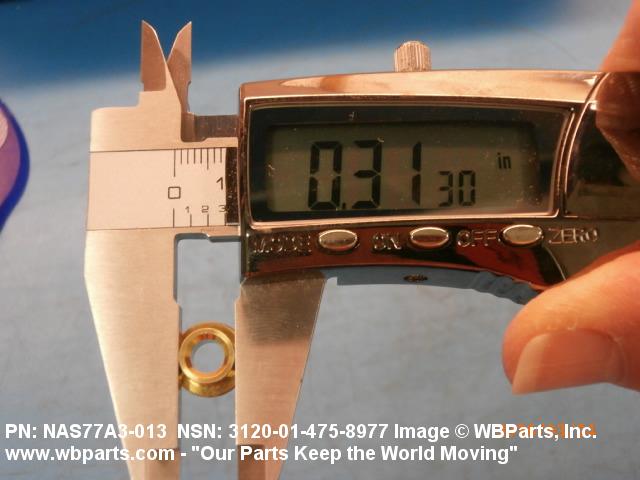

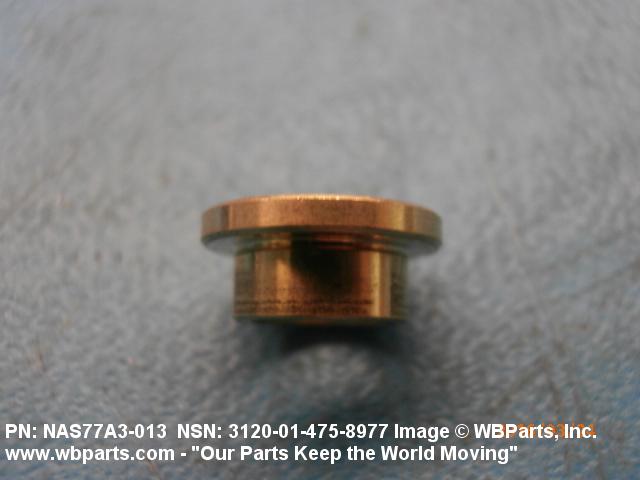

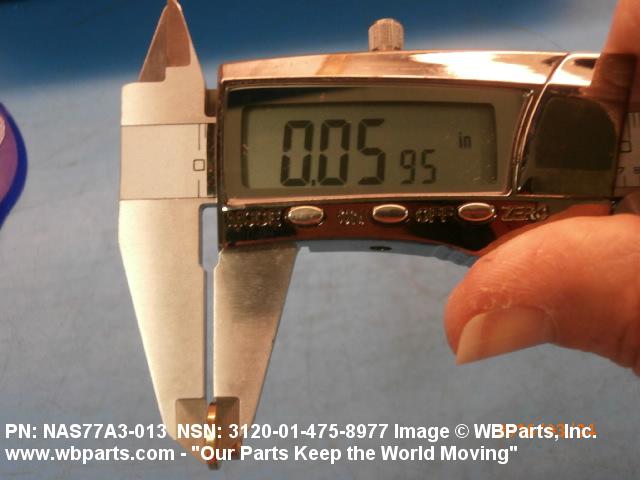

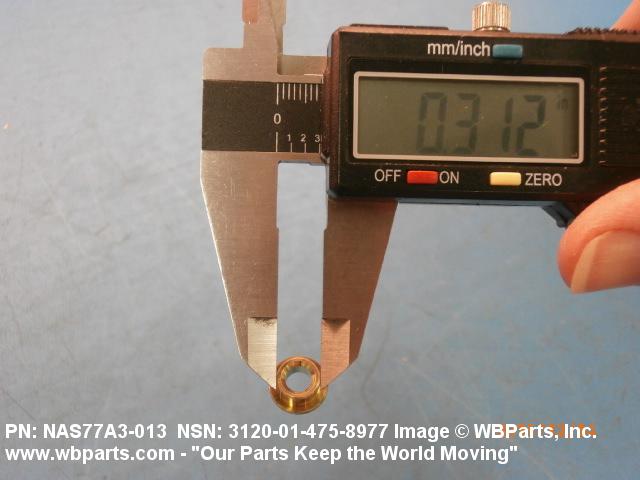

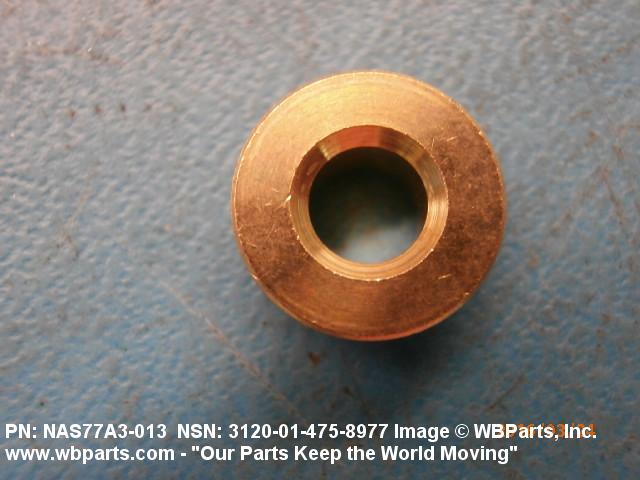

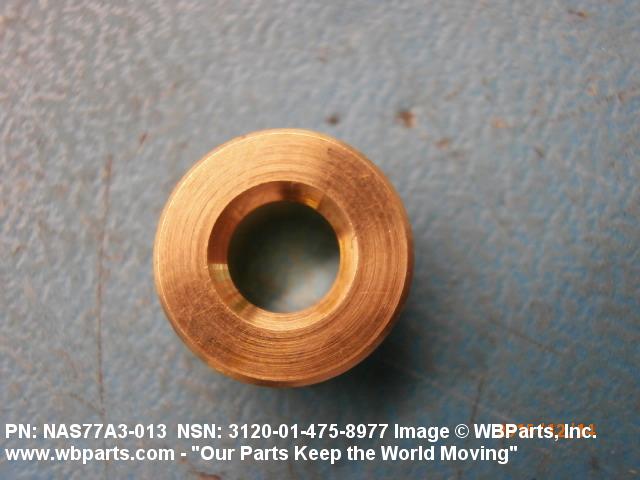

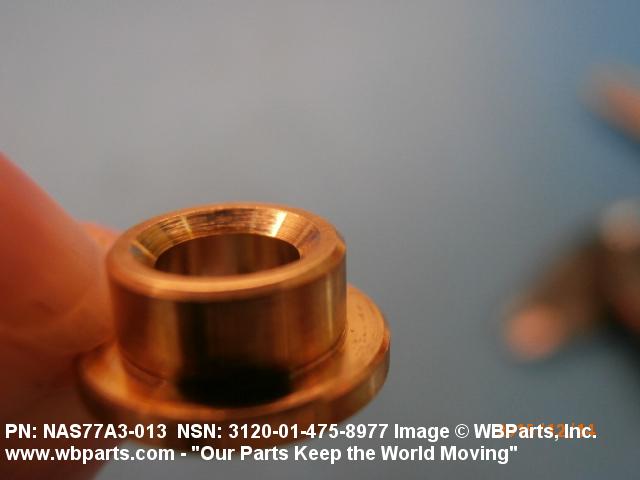

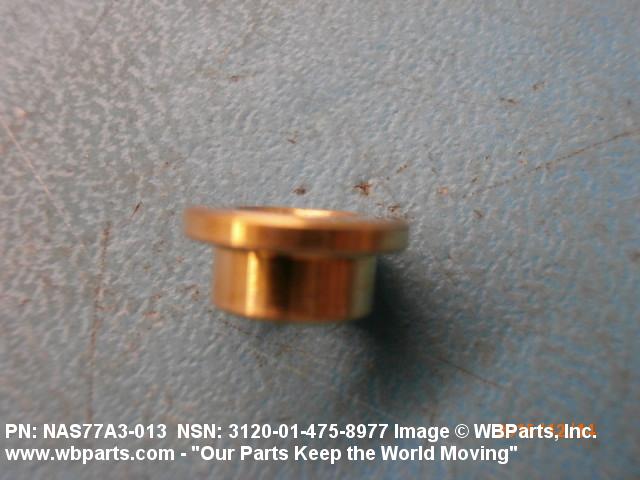

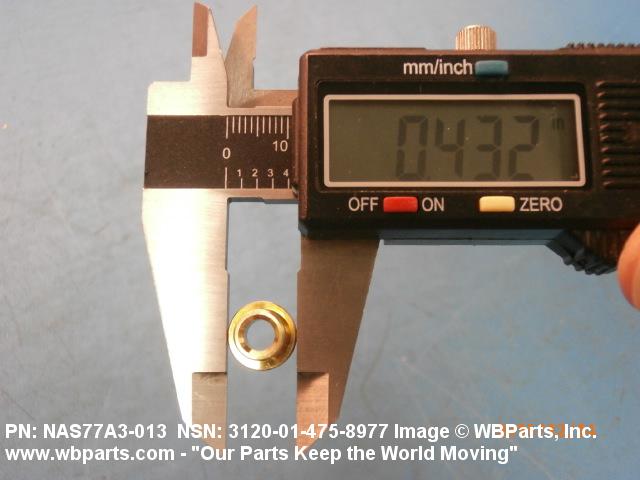

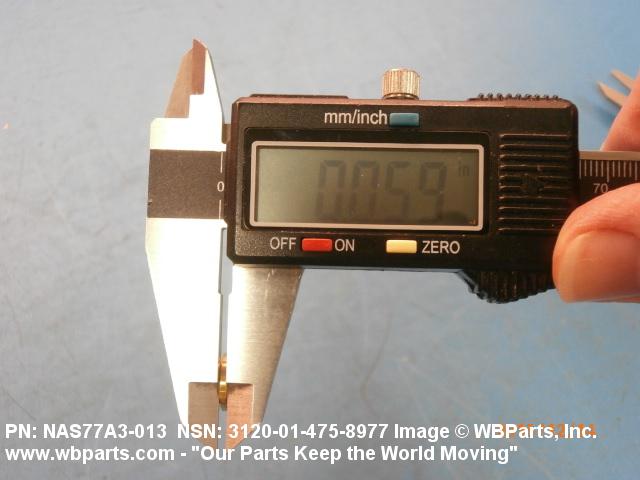

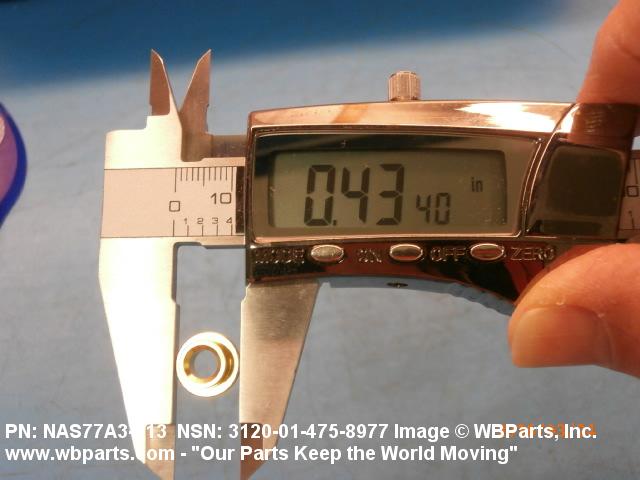

Drawings & Photos | NSN 3120-01-475-8977
Demand History | NSN 3120-01-475-8977
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS77A3013 | 2018-09-270 | 14 | United States |
| NAS77A3013 | 2016-03-70 | 50 | United States |
| NAS77A3013 | 2015-12-343 | 50 | United States |
| NAS77A3013 | 2015-12-343 | 100 | United States |
| NAS77A3013 | 2015-06-167 | 10 | United States |
| NAS77A3013 | 2014-02-34 | 50 | US |
| 3120-01-475-8977 | 2013-12-346 | 9 | DIBBS |
| 3120-01-475-8977 | 2013-11-330 | 9 | DIBBS |
| NAS77A3013 | 2010-12-342 | 682 | US |
Cross Reference | NSN 3120-01-475-8977
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS77A3-013 | 23294 | AVALON MACHINE PRODUCTS INC |
| NAS77A3-013 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| NAS77A3-013 | 65910 | MAYDAY MANUFACTURING CO. INC. |
| NAS77A3-013 | 70265 | ALL-POWER MANUFACTURING CO.INC. |
| NAS77A3-013 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-475-8977
Technical Data | NSN 3120-01-475-8977
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 642 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-465 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

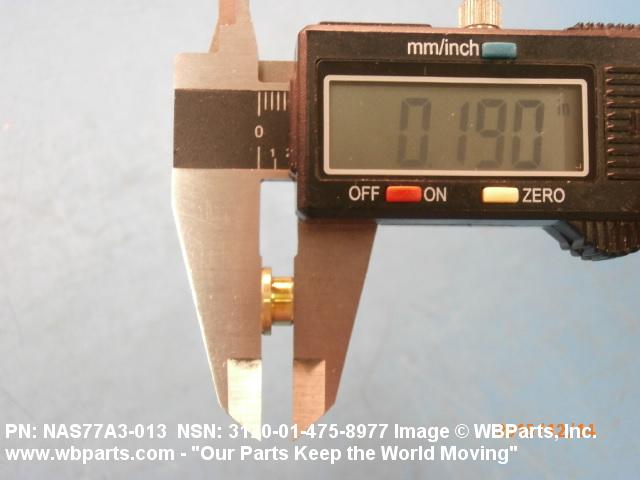

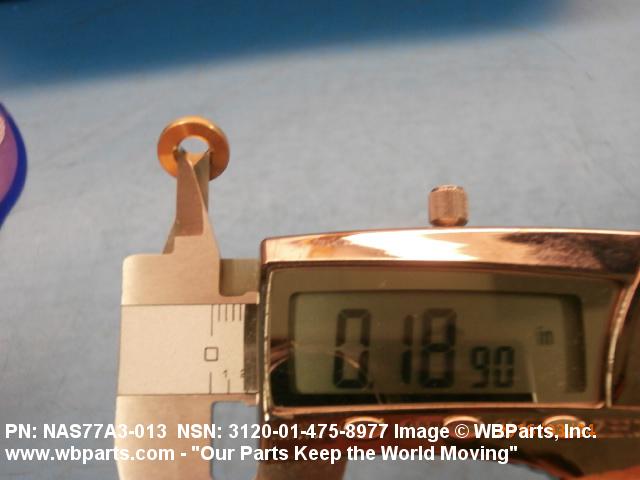

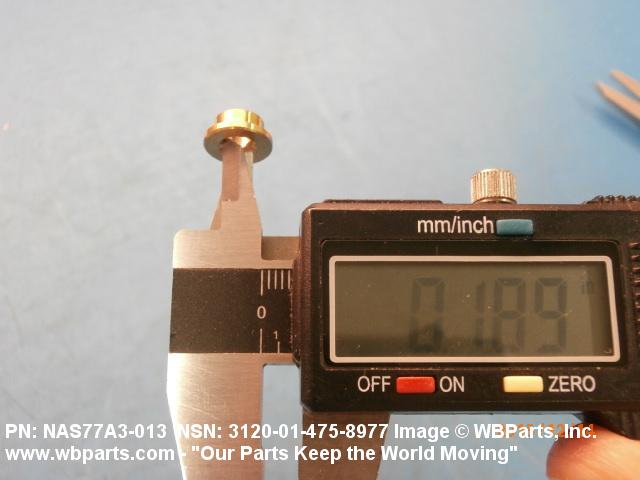

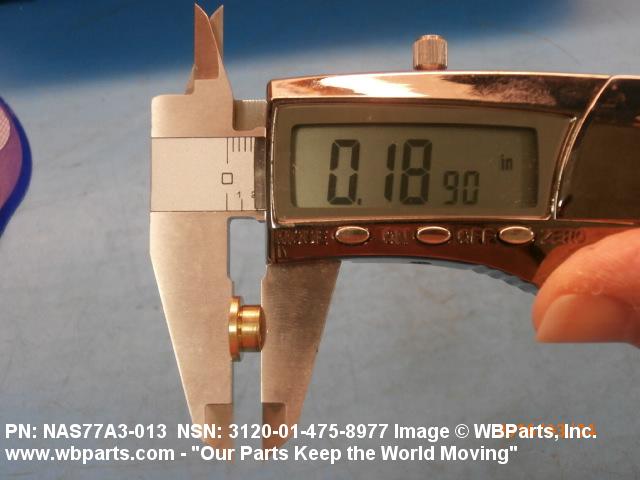

| OVERALL LENGTH | 0.1820 INCHES MINIMUM AND 0.1970 INCHES MAXIMUM |
