NSN 3120-01-475-7793 4M374BC4013, 4M374BC4-013, 01-475-7793
Product Details | SLEEVE BUSHING
3120-01-475-7793 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 4M374BC4013, 4M374BC4-013, 3120-01-475-7793, 01-475-7793, 3120014757793, 014757793
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JUN 2000 | 01-475-7793 | 13206 ( BUSHING, SLEEVE ) |

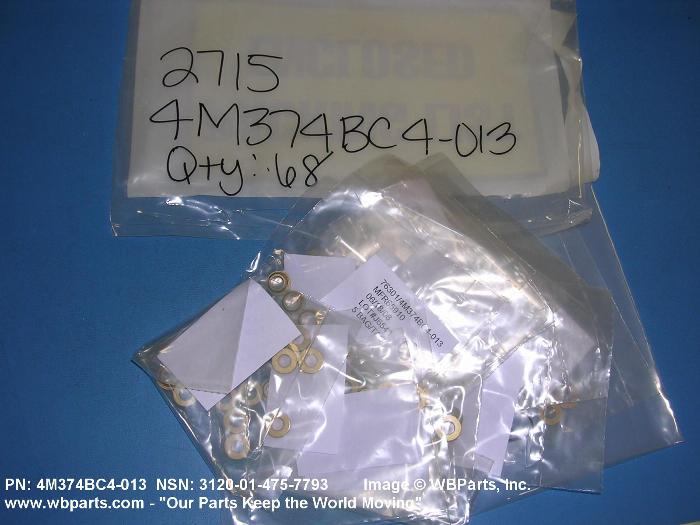

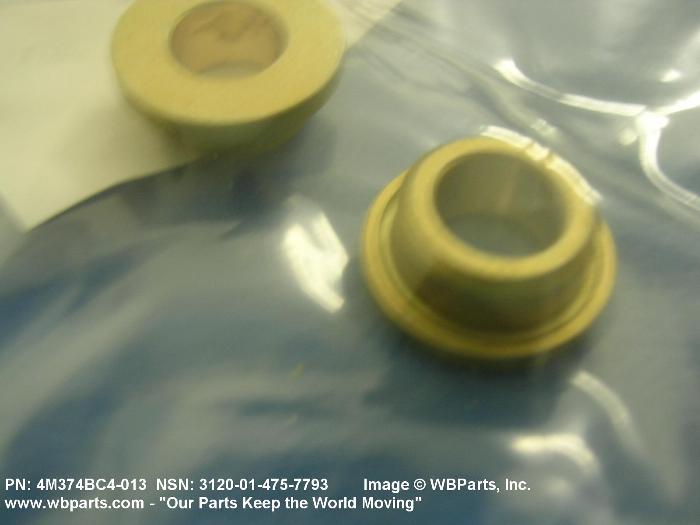

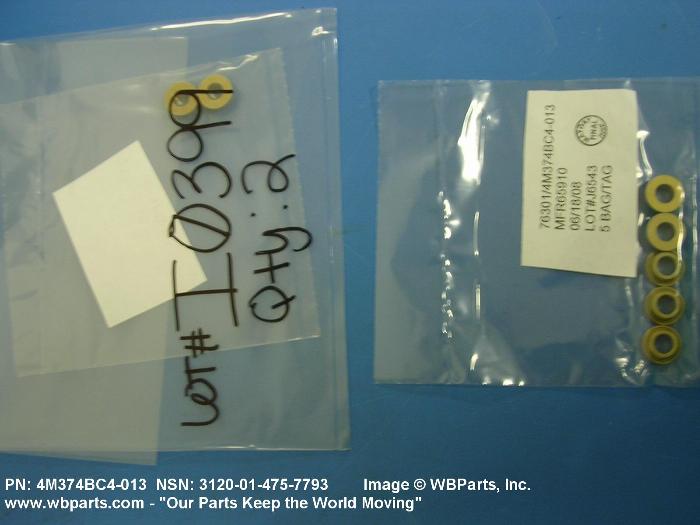

Drawings & Photos | NSN 3120-01-475-7793
Demand History | NSN 3120-01-475-7793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4M374BC4013 | 2008-11-309 | 2 | United States |
| 4M374BC4013 | 2008-02-39 | 75 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-475-7793
Technical Data | NSN 3120-01-475-7793
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B196 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | COPPER ALLOY OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-83488 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.1850 INCHES MINIMUM AND 0.1940 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.3746 INCHES MINIMUM AND 0.3751 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.2415 INCHES MINIMUM AND 0.2430 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.4900 INCHES MINIMUM AND 0.5100 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0600 INCHES MINIMUM AND 0.0640 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BUSHING SLEEVE-FLANGED, PRESS FIT |
Restrictions/Controls & Freight Information | NSN 3120-01-475-7793
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-475-7793
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
