NSN 3120-01-396-1008 Y4JC45830B ITEM 13, Y4JC45830BITEM13, Y4JC45839
Product Details | SLEEVE BUSHING
3120-01-396-1008 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: Y4JC45830B ITEM 13, Y4JC45830BITEM13, Y4JC45839, 3120-01-396-1008, 01-396-1008, 3120013961008, 013961008
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 SEP 1994 | 01-396-1008 | 13206 ( BUSHING, SLEEVE ) |

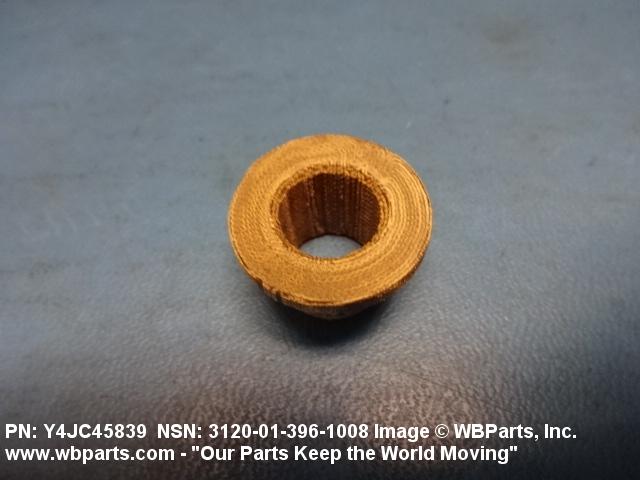

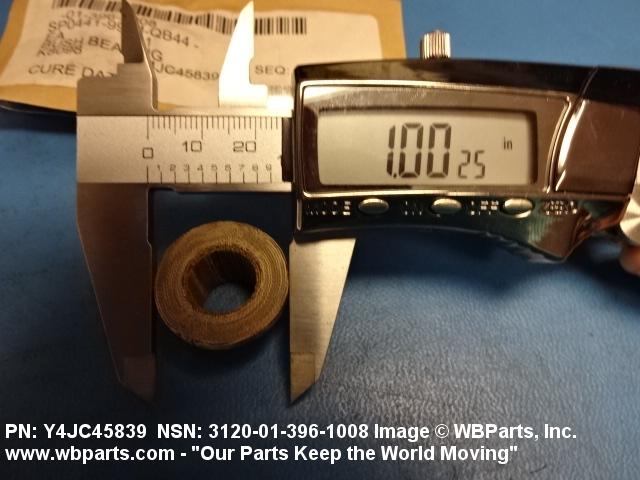

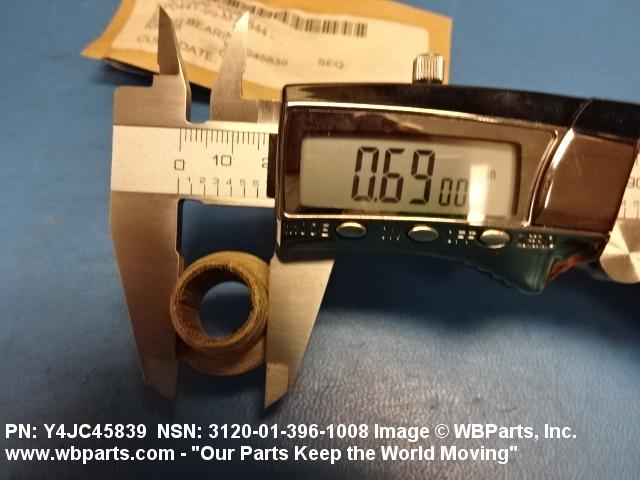

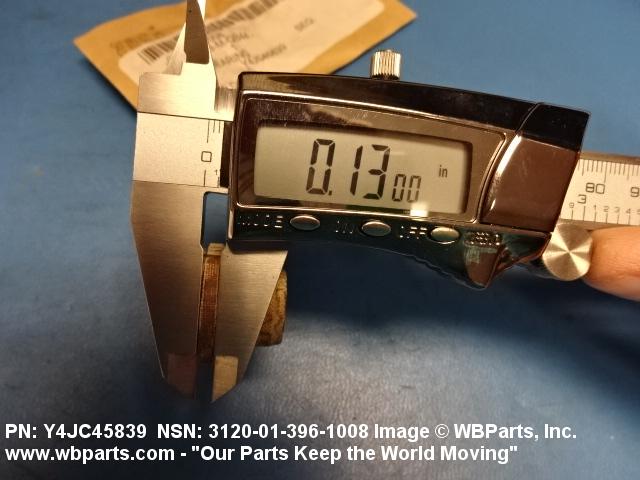

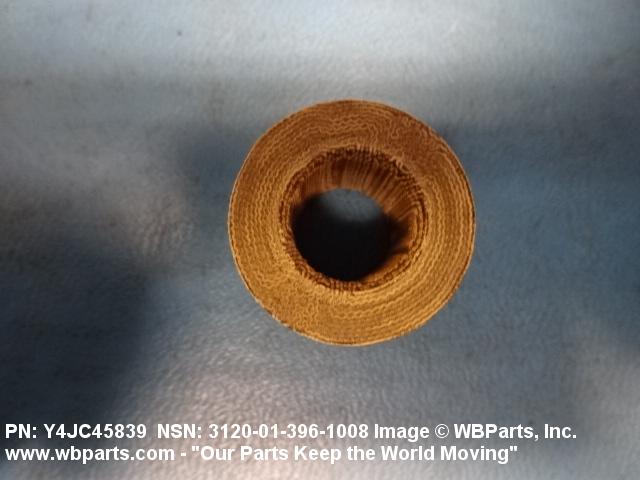

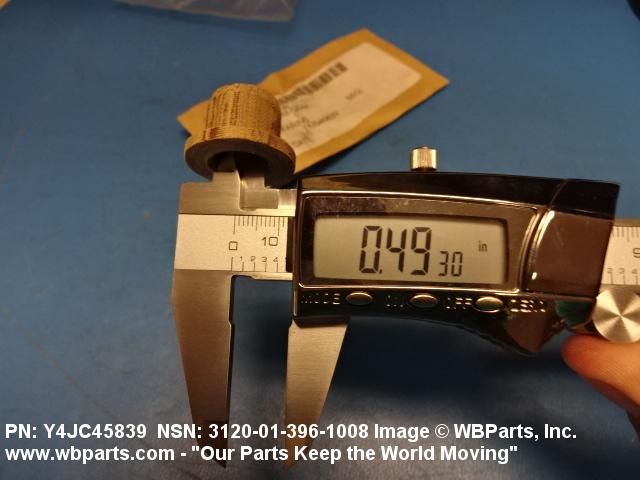

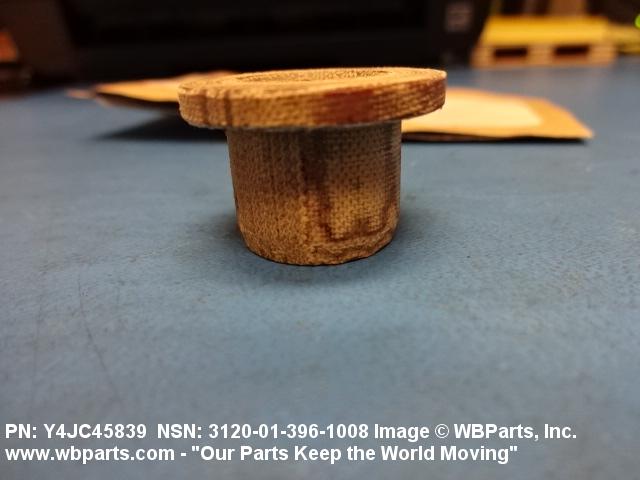

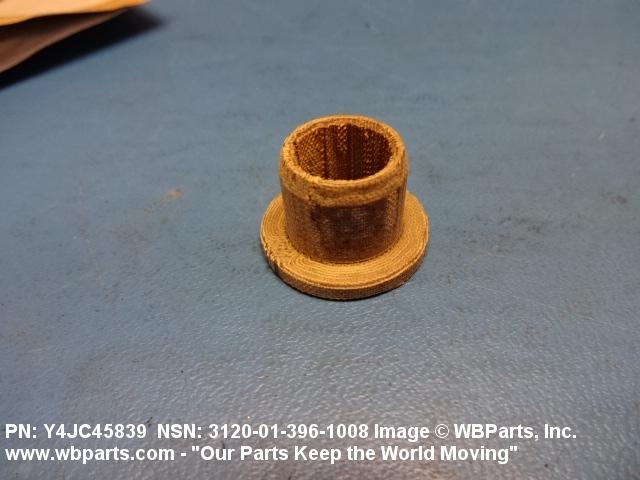

Drawings & Photos | NSN 3120-01-396-1008
Demand History | NSN 3120-01-396-1008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| Y4JC45830B ITEM 13 | 2023-12-345 | 2 | DIBBS |
| Y4JC45839 | 2023-12-345 | 2 | DIBBS |
| 3120-01-396-1008 | 2017-02-47 | 1 | United States |
| 3120-01-396-1008 | 2017-02-38 | 33 | DIBBS |
| 3120-01-396-1008 | 2017-02-34 | 1 | DIBBS |
| 3120-01-396-1008 | 2017-01-04 | 5 | DIBBS |
| 3120-01-396-1008 | 2016-12-339 | 1 | DIBBS |
| 3120-01-396-1008 | 2016-10-300 | 2 | DIBBS |
| 3120-01-396-1008 | 2016-10-278 | 1 | DIBBS |
| 3120-01-396-1008 | 2016-08-229 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-396-1008
Restrictions/Controls & Freight Information | NSN 3120-01-396-1008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-396-1008
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
