NSN 3120-01-354-8274 M81934/2-16C018, M81934216C018, AS81934/2
Product Details | SLEEVE BEARING
3120-01-354-8274 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: M81934/2-16C018, M81934216C018, AS81934/2, AS819342, MIL-B-81934/2, MILB819342, 3120-01-354-8274, 01-354-8274, 3120013548274, 013548274
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 MAR 1992 | 01-354-8274 | 13205 ( BEARING, SLEEVE ) |

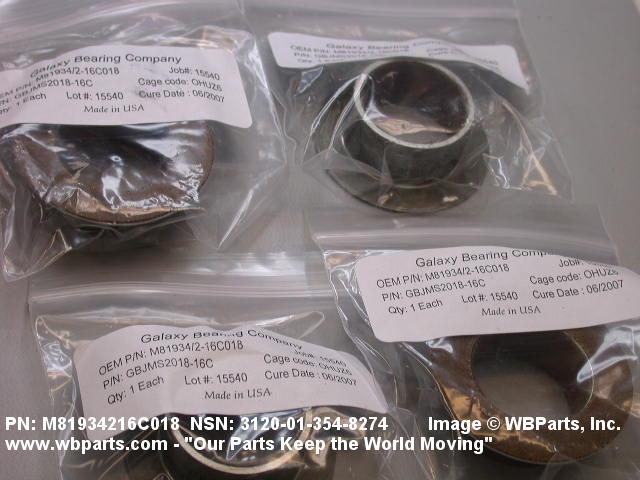

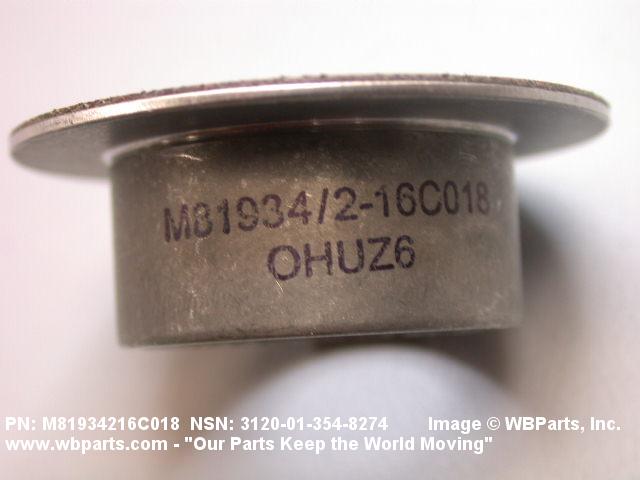

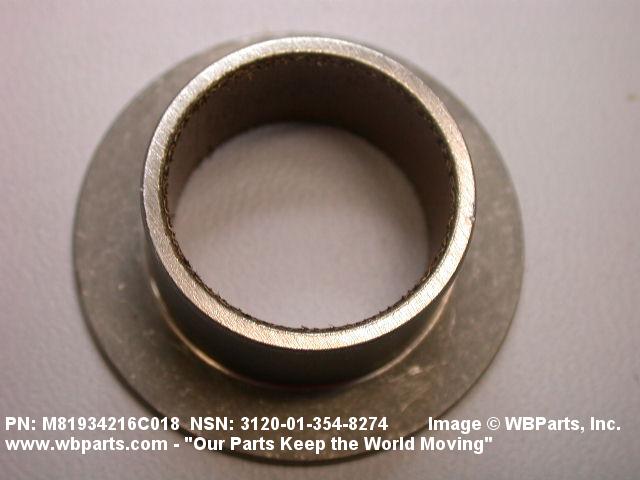

Drawings & Photos | NSN 3120-01-354-8274
Demand History | NSN 3120-01-354-8274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-354-8274 | 2025-04-111 | 322 | DIBBS |
| 3120-01-354-8274 | 2025-01-16 | 32 | DIBBS |
| 3120-01-354-8274 | 2024-10-298 | 44 | DIBBS |
| 3120-01-354-8274 | 2024-07-200 | 115 | DIBBS |
| 3120-01-354-8274 | 2024-04-105 | 17 | DIBBS |
| 3120-01-354-8274 | 2024-01-15 | 50 | DIBBS |
| 3120-01-354-8274 | 2023-09-260 | 50 | DIBBS |
| 3120-01-354-8274 | 2023-05-141 | 50 | DIBBS |
| 3120-01-354-8274 | 2022-07-198 | 50 | DIBBS |
| M81934216C018 | 2022-03-75 | 25 | United States |
| AS819342 | 2020-09-262 | 12 | US |
| AS819342 | 2019-09-248 | 36 | United States |
| 3120-01-354-8274 | 2019-03-71 | 325 | US |
| M81934216C018 | 2015-05-131 | 2 | United States |
| AS819342 | 2013-06-171 | 2 | AU |
| AS819342 | 2011-08-231 | 2 | us |
| 3120-01-354-8274 | 2010-04-102 | 256 | DIBBS |
| 3120-01-354-8274 | 2010-03-64 | 361 | DIBBS |
| AS819342 | 2009-10-296 | 550 | us |
| 3120-01-354-8274 | 2009-03-80 | 186 | DIBBS |
| 3120-01-354-8274 | 2009-03-80 | 242 | DIBBS |
| 3120-01-354-8274 | 2009-03-69 | 186 | DIBBS |
| M81934216C018 | 2009-02-57 | 2 | us |
| 3120-01-354-8274 | 2009-01-07 | 242 | DIBBS |
| M81934216C018 | 2008-08-239 | 200 | US |
| MILB819342 | 2007-11-320 | 200 | US |
| 3120-01-354-8274 | 2007-09-267 | 10 | US |
| MILB819342 | 2007-09-264 | 4 | US |
| M81934216C018 | 2007-04-94 | 700 | United States |
Cross Reference | NSN 3120-01-354-8274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81934 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81934/2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81934/2-16C018 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81934/2-16C018 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81934/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-354-8274
Technical Data | NSN 3120-01-354-8274
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 630 OUTER LAYER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER LAYER |
| STYLE DESIGNATOR | 22C SOLID |

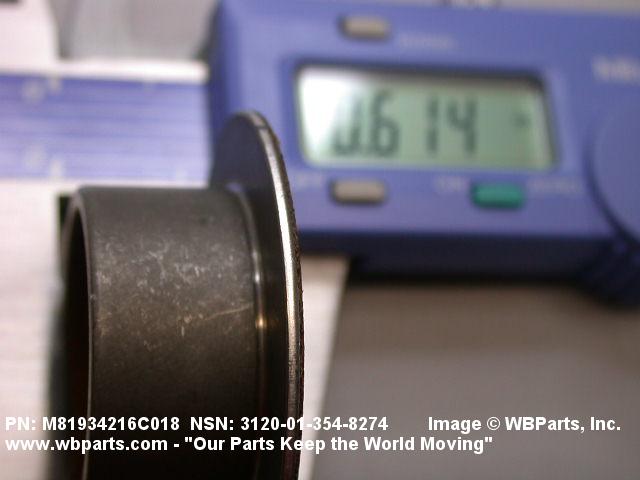

| OVERALL LENGTH | 0.6100 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |

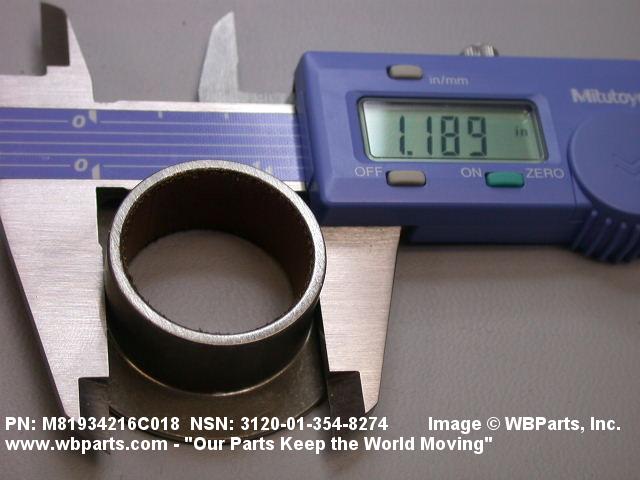

| BODY OUTSIDE DIAMETER | 1.1893 INCHES MINIMUM AND 1.1898 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.0005 INCHES MINIMUM AND 1.0015 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.7300 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0575 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 125.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY AND FLANGE 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLANGE 125.0 MICROINCHES RIGHT END SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF LEFT FLANGE |
| SPECIAL FEATURES | PLASTIC LINER BONDED TO LEFT END SURFACE OF FLANGE |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0620 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-354-8274
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
