NSN 3120-01-348-3681 30913961, 3091396-1, 01-348-3681
Product Details | SPHERICAL PLAIN BEARING
3120-01-348-3681 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 30913961, 3091396-1, 3120-01-348-3681, 01-348-3681, 3120013483681, 013483681
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 08 NOV 1991 | 01-348-3681 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

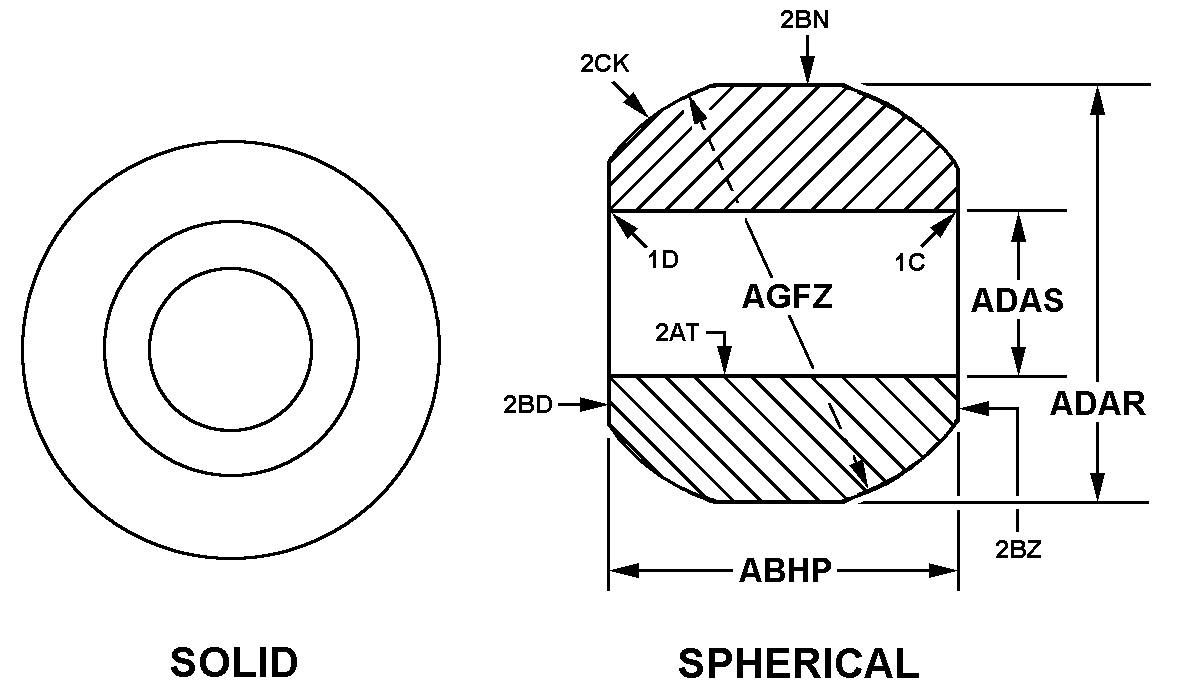

Drawings & Photos | NSN 3120-01-348-3681
Cross Reference | NSN 3120-01-348-3681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3091396-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-348-3681
Technical Data | NSN 3120-01-348-3681
| Characteristic | Specifications |
|---|---|
| MATERIAL | COBALT COMP 6 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5387 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 14C SOLID |
| OVERALL LENGTH | 0.2790 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |
| SPHERICAL BODY DIAMETER | 0.4366 INCHES MINIMUM AND 0.4369 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 63.0 MICROINCHES LEFT END SURFACE 16.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLATS 63.0 MICROINCHES RIGHT END SURFACE |
| SPECIAL FEATURES | USED ON A TURBINE ENGINE |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3091396-1 |
Restrictions/Controls & Freight Information | NSN 3120-01-348-3681
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
