NSN 3120-01-342-6669 12592113, 01-342-6669, 013426669
Product Details | SPHERICAL PLAIN BEARING
3120-01-342-6669 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 12592113, 3120-01-342-6669, 01-342-6669, 3120013426669, 013426669
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 JUL 1991 | 01-342-6669 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

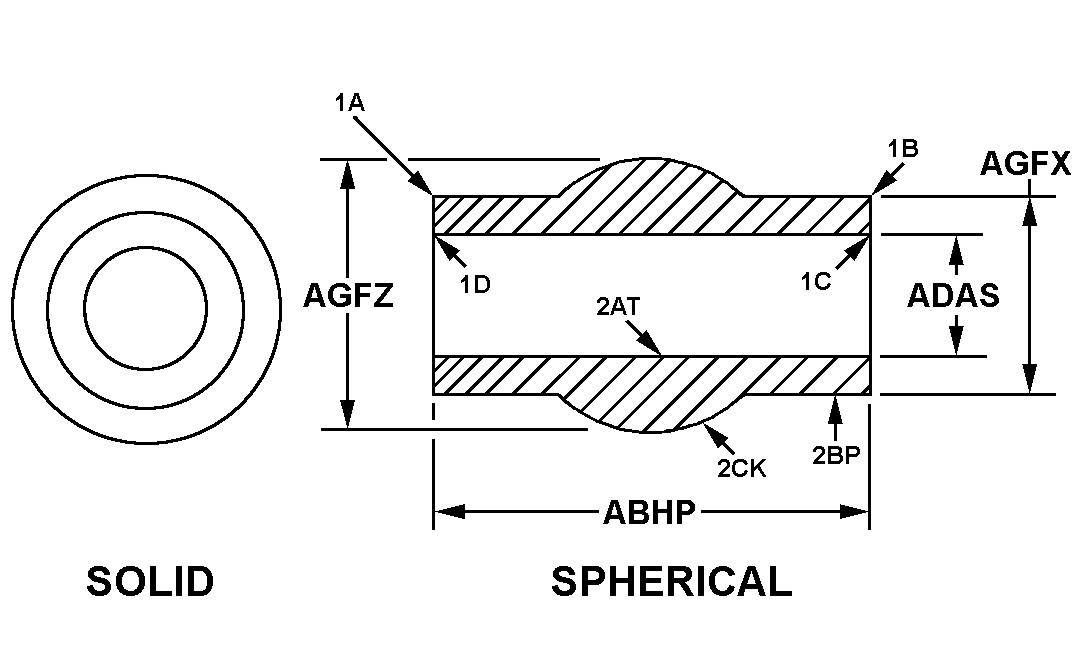

Drawings & Photos | NSN 3120-01-342-6669
Demand History | NSN 3120-01-342-6669
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-342-6669 | 2018-06-156 | 92 | DIBBS |
| 3120-01-342-6669 | 2017-12-337 | 193 | DIBBS |
| 3120-01-342-6669 | 2016-01-20 | 208 | DIBBS |
| 3120-01-342-6669 | 2015-06-159 | 142 | DIBBS |
Cross Reference | NSN 3120-01-342-6669
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12592113 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-342-6669
Related Products | NSN 3120-01-342-6669
Technical Data | NSN 3120-01-342-6669
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | 12C SOLID |
| OVERALL LENGTH | 2.5200 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.0680 INCHES NOMINAL |
| EXTENSION OUTSIDE DIAMETER | 1.5100 INCHES NOMINAL |
| SPHERICAL BODY DIAMETER | 1.7490 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| III END ITEM IDENTIFICATION | M119A1 HOWITZER |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 12592113 |
Restrictions/Controls & Freight Information | NSN 3120-01-342-6669
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-342-6669
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | G | Artillery |
| Weapons Systems/End Item or Homogeneous Group | GJ | Howitzer, Light Towed, 105mm, M119A1 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
