NSN 3120-01-250-6799 10108258 , 1477451, 147745-1

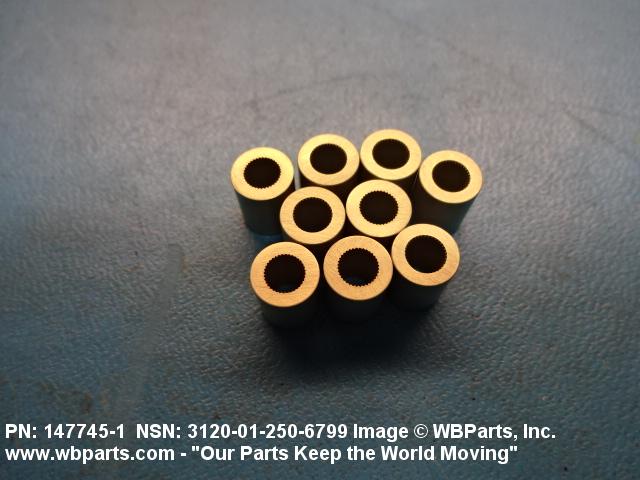

Product Details | SLEEVE BUSHING
3120-01-250-6799 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 10108258 , 1477451, 147745-1, 3120-01-250-6799, 01-250-6799, 3120012506799, 012506799
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 MAR 1987 | 01-250-6799 | 13206 ( BUSHING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-250-6799
Demand History | NSN 3120-01-250-6799
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-250-6799 | 2017-08-226 | 9 | United States |
| 3120-01-250-6799 | 2017-03-86 | 12 | DIBBS |
| 3120-01-250-6799 | 2014-03-79 | 40 | DIBBS |
| 3120-01-250-6799 | 2013-12-343 | 40 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-250-6799
Technical Data | NSN 3120-01-250-6799
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

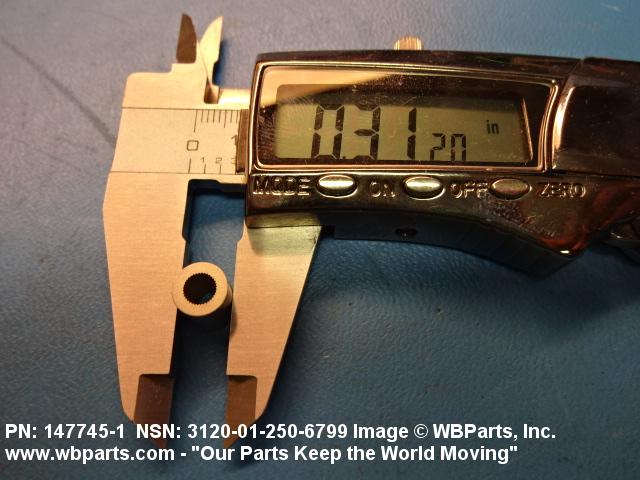

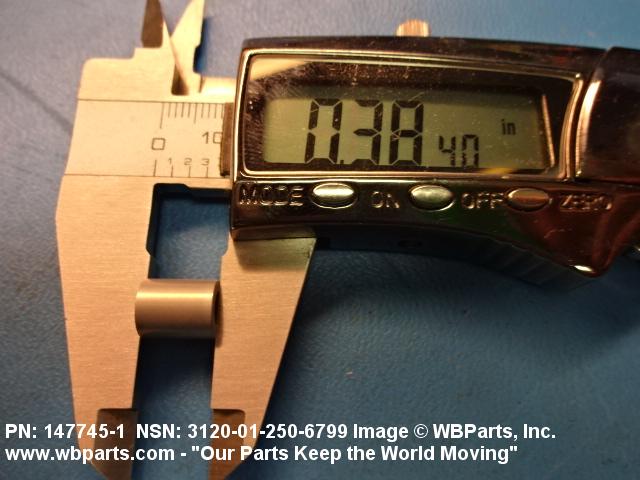

| OVERALL LENGTH | 0.3800 INCHES MINIMUM AND 0.3900 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.3070 INCHES MINIMUM AND 0.3170 INCHES MAXIMUM |

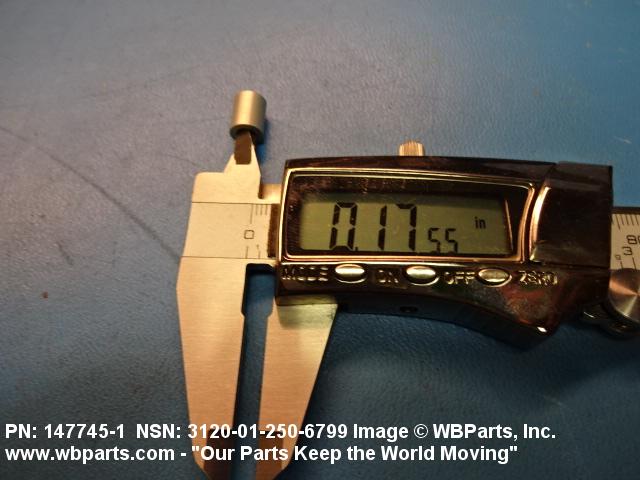

| BODY INSIDE DIAMETER | 0.1750 INCHES MINIMUM AND 0.1790 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SPECIAL FEATURES | 36 TOOTH SAE STD BROACHED SERRATED HOLE TOOTH INCLUDED ANGLE 89 DEG 30 MINUTES TO 90 DEG 30 MINUTES,SPACE INCLUDED ANGLE 79 DEG 30 MINUTES TO 80 DEG 30 MINUTES; 0.187 IN. MIN MAJOR DIA; MEASUREMENT BETWEEN TWO 0.0097 IN. DIA WIRES MUST BE 0.1660 IN. MIN TO 0.1671 IN. MAX WHEN WIRES ARE SET IN ANY TWO SPACES 18 TEETH APART |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 147745-1 |
Restrictions/Controls & Freight Information | NSN 3120-01-250-6799
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
