NSN 3120-01-180-4833 LTCT2357003, LTCT23570-03, 01-180-4833
Product Details | SLEEVE BEARING
3120-01-180-4833 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: LTCT2357003, LTCT23570-03, 3120-01-180-4833, 01-180-4833, 3120011804833, 011804833
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 MAY 1984 | 01-180-4833 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-180-4833
Demand History | NSN 3120-01-180-4833
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-180-4833 | 2011-09-258 | 119 | DIBBS |
| LTCT2357003 | 2010-08-229 | 10 | us |
| 3120-01-180-4833 | 2010-05-132 | 19 | DIBBS |
| 3120-01-180-4833 | 2010-04-110 | 55 | DIBBS |
| 3120-01-180-4833 | 2010-04-102 | 28 | DIBBS |
| 3120-01-180-4833 | 2009-12-345 | 44 | DIBBS |
| 3120-01-180-4833 | 2009-12-337 | 27 | DIBBS |
| 3120-01-180-4833 | 2009-05-151 | 58 | DIBBS |
| 3120-01-180-4833 | 2009-03-72 | 44 | DIBBS |
| LTCT2357003 | 2009-03-70 | 20 | United States |
| 3120-01-180-4833 | 2008-12-364 | 25 | DIBBS |
| 3120-01-180-4833 | 2007-07-200 | 24 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-180-4833
Related Products | NSN 3120-01-180-4833
Technical Data | NSN 3120-01-180-4833
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | VESPEL SP21,FSCM 31708 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.7550 INCHES MINIMUM AND 0.7650 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.3370 INCHES MINIMUM AND 2.3380 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.9500 INCHES MINIMUM AND 1.9510 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 3.5000 INCHES NOMINAL |
| FLANGE WIDTH | 0.2380 INCHES MINIMUM AND 0.2390 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 2 HOLE |
| HOLE DIAMETER | 0.2150 INCHES MINIMUM AND 0.2250 INCHES MAXIMUM FIRST |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY |

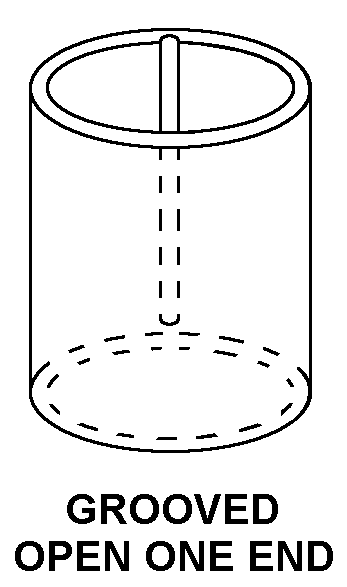

| LUBRICANT ACCOMMODATION STYLE | 76 GROOVED OPEN ONE END |
| SURFACE GROOVE LOCATION AND QUANTITY | 6 INTERNAL |
| (NON-CORE DATA) CHAMFER LENGTH | 0.2495 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | LTCT23570-03 |
