NSN 3120-01-179-2328 05DU04, 1375179353, 137-517-9353
Product Details | SLEEVE BEARING
3120-01-179-2328 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 05DU04, 1375179353, 137-517-9353, 3120-01-179-2328, 01-179-2328, 3120011792328, 011792328
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 MAY 1984 | 01-179-2328 | 13205 ( BEARING, SLEEVE ) |

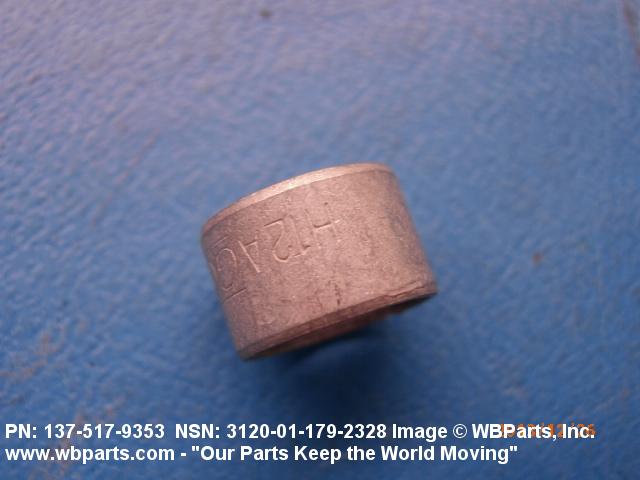

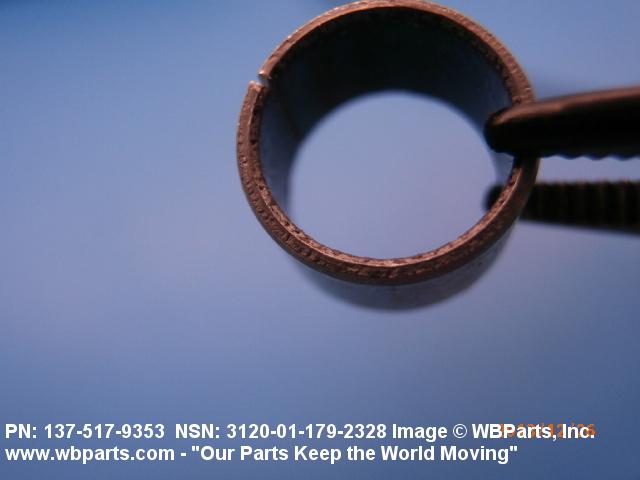

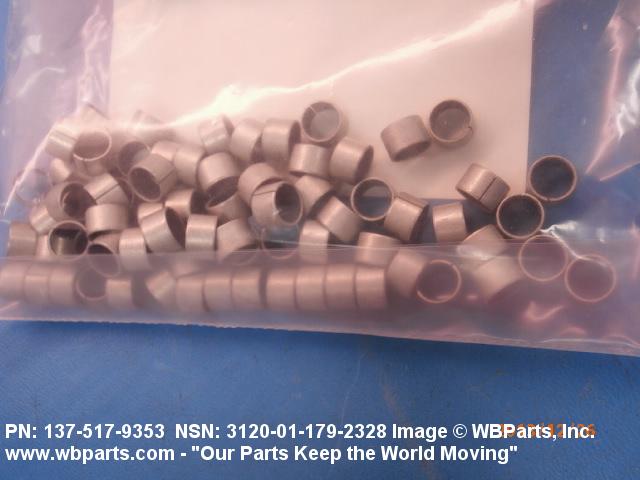

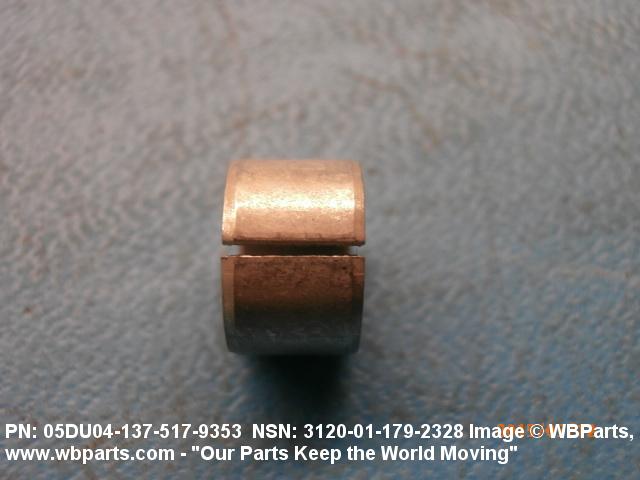

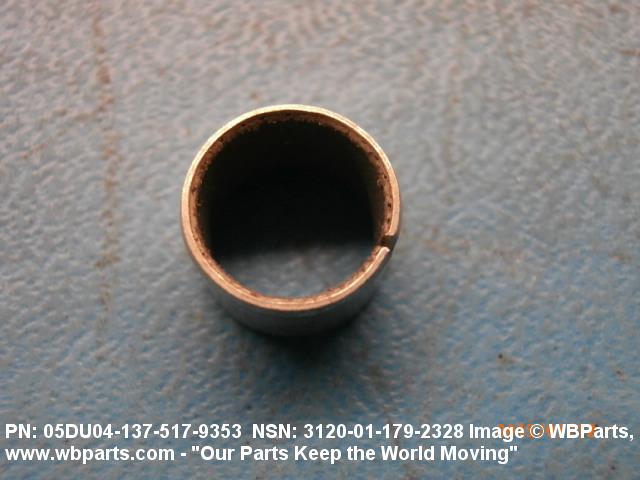

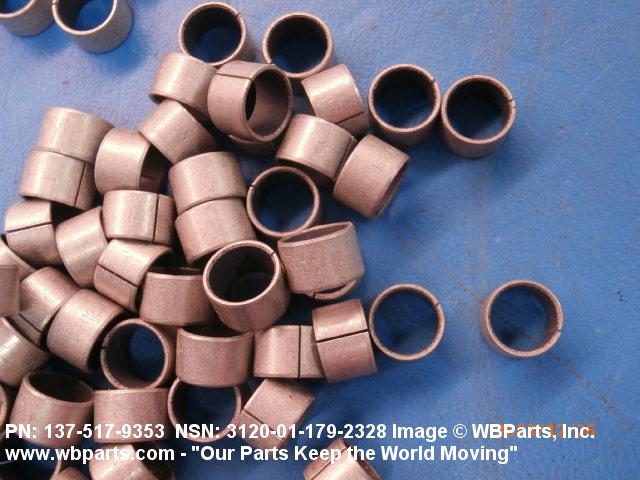

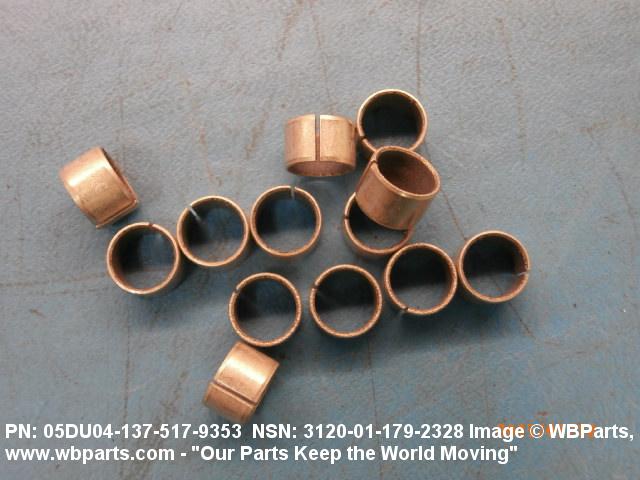

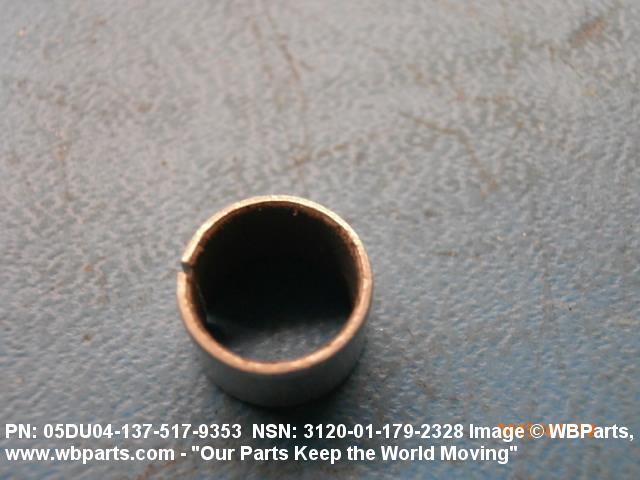

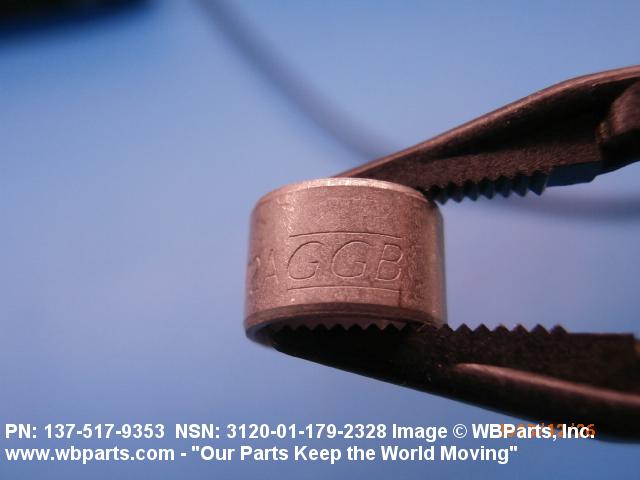

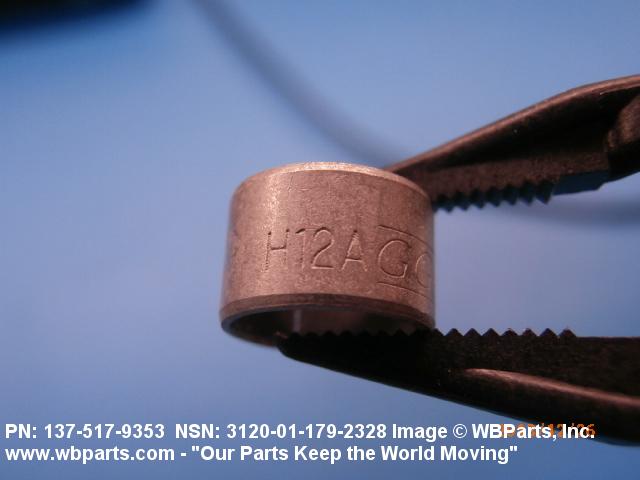

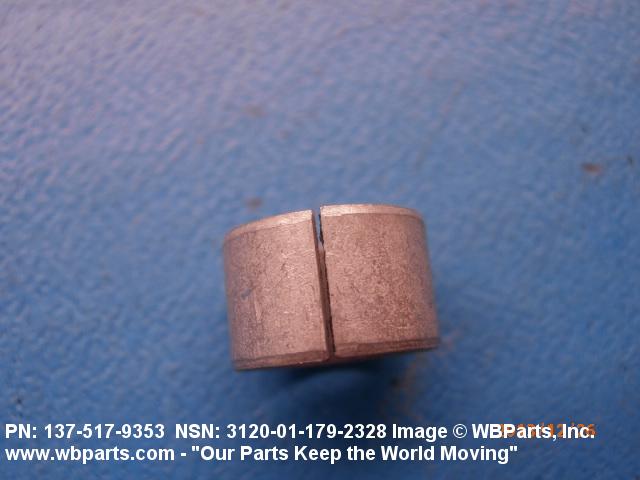

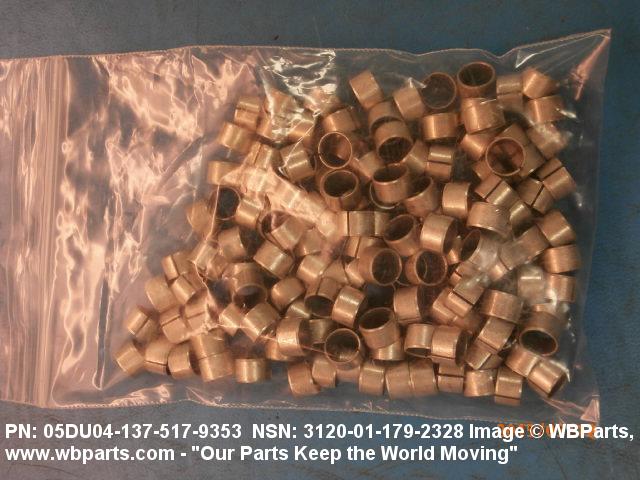

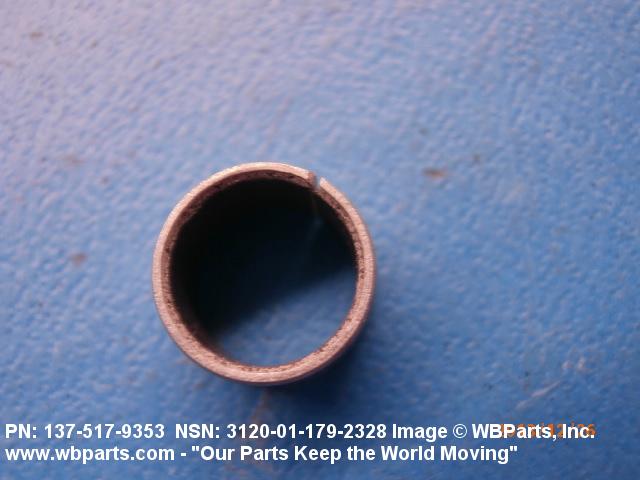

Drawings & Photos | NSN 3120-01-179-2328
Demand History | NSN 3120-01-179-2328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-179-2328 | 2017-02-38 | 559 | DIBBS |
| 1375179353 | 2016-04-111 | 155 | United States |
| 1375179353 | 2016-04-111 | 155 | United States |
| 1375179353 | 2015-03-89 | 138 | United States |
| 1375179353 | 2014-07-183 | 145 | United States |
| 1375179353 | 2014-07-183 | 145 | United States |
| 3120-01-179-2328 | 2014-06-162 | 160 | DIBBS |
| 1375179353 | 2013-12-351 | 75 | United States |
| 1375179353 | 2012-05-145 | 50 | United States |
| 1375179353 | 2012-03-74 | 22 | United States |
| 05DU04 | 2011-11-334 | 125 | US |
| 1375179353 | 2011-11-313 | 21 | United States |
| 1375179353 | 2011-11-313 | 42 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-179-2328
Technical Data | NSN 3120-01-179-2328
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE AND LEAD INNER LAYER COPPER ALLOY AND PLASTIC POLYTETRAFLUOROETHYLENE INTERMEDIATE LAYER STEEL OUTER LAYER |

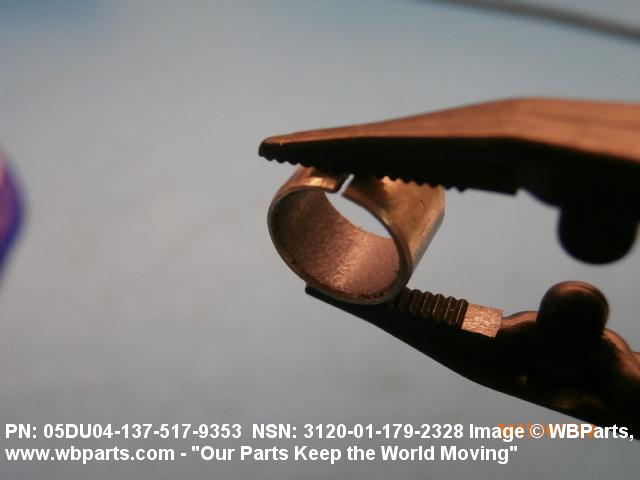

| STYLE DESIGNATOR | 17A SPLIT |

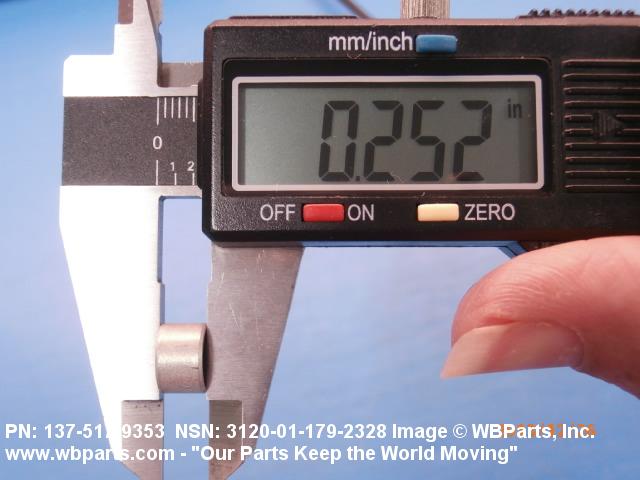

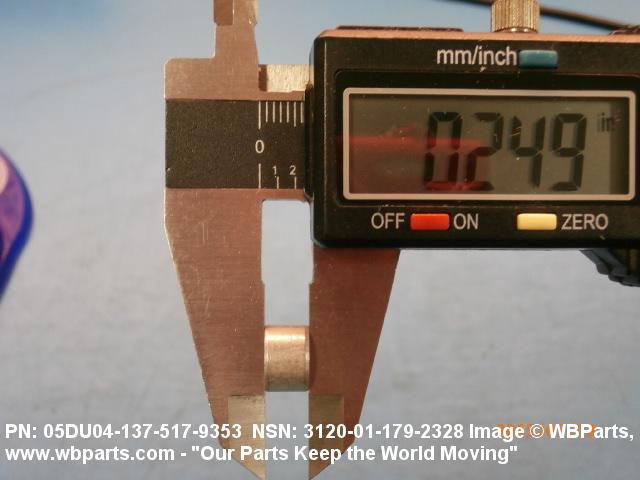

| OVERALL LENGTH | 0.2350 INCHES MINIMUM AND 0.2650 INCHES MAXIMUM |

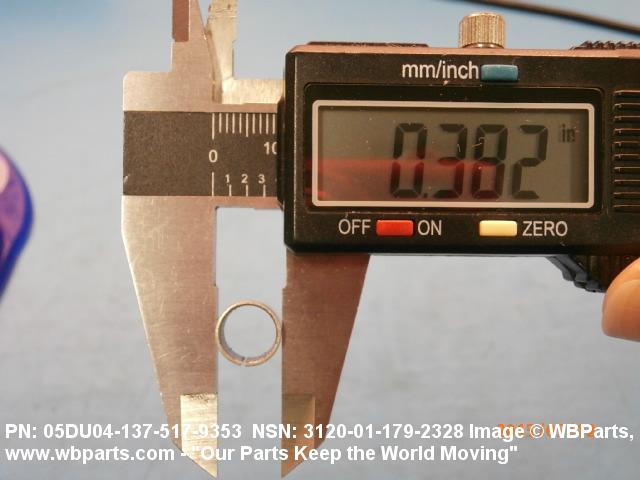

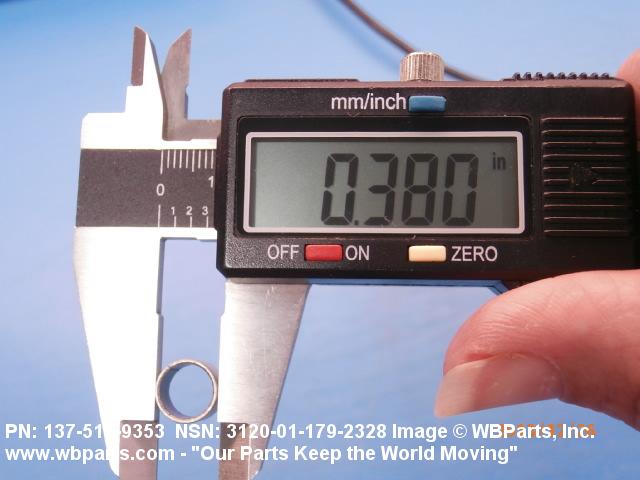

| BODY OUTSIDE DIAMETER | 0.3750 INCHES NOMINAL |

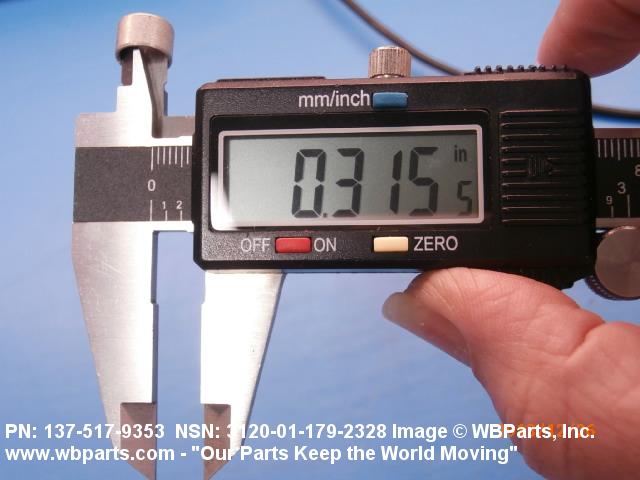

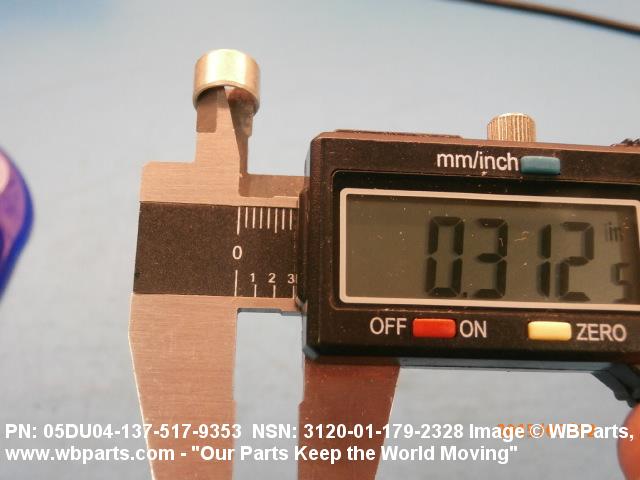

| BODY INSIDE DIAMETER | 0.3125 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
Restrictions/Controls & Freight Information | NSN 3120-01-179-2328
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-179-2328
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
