NSN 3120-01-178-0232 1881B201, 01-178-0232, 011780232
Product Details | SLEEVE BEARING
3120-01-178-0232 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 1881B201, 3120-01-178-0232, 01-178-0232, 3120011780232, 011780232
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 MAY 1984 | 01-178-0232 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-178-0232
Cross Reference | NSN 3120-01-178-0232
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1881B201 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-178-0232
Technical Data | NSN 3120-01-178-0232
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 630 OVERALL |
| SURFACE TREATMENT | CADMIUM OUTSIDE DIAMETER SURFACE OF BODY CADMIUM RIGHT END SURFACE OF LEFT FLANGE |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 3.5595 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.7534 INCHES MINIMUM AND 4.7551 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 4.4800 INCHES MINIMUM AND 4.4820 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 5.4995 INCHES MINIMUM AND 5.5005 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1190 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER ROUND LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY |

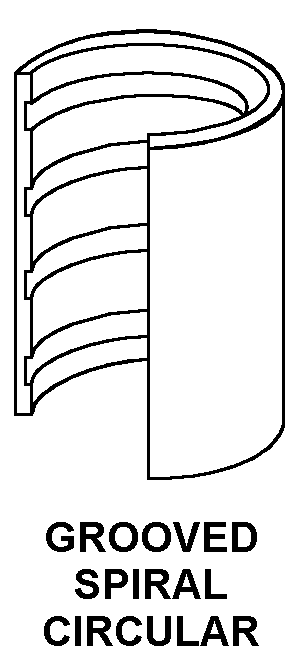

| LUBRICANT ACCOMMODATION STYLE | 70 GROOVED SPIRAL CIRCULAR |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0450 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) RADIUS | 0.0500 INCHES NOMINAL |
| MANUFACTURERS CODE | 13002 |
| DESIGN CONTROL REFERENCE | 1881B201 |
