NSN 3120-01-162-9812 B488800, 01-162-9812, 011629812
Product Details | SLEEVE BEARING HALF
3120-01-162-9812 A half of a two-piece split type BEARING, SLEEVE.
Part Alternates: B488800, 3120-01-162-9812, 01-162-9812, 3120011629812, 011629812
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 26 SEP 1983 | 01-162-9812 | 22210 ( BEARING HALF, SLEEVE ) |

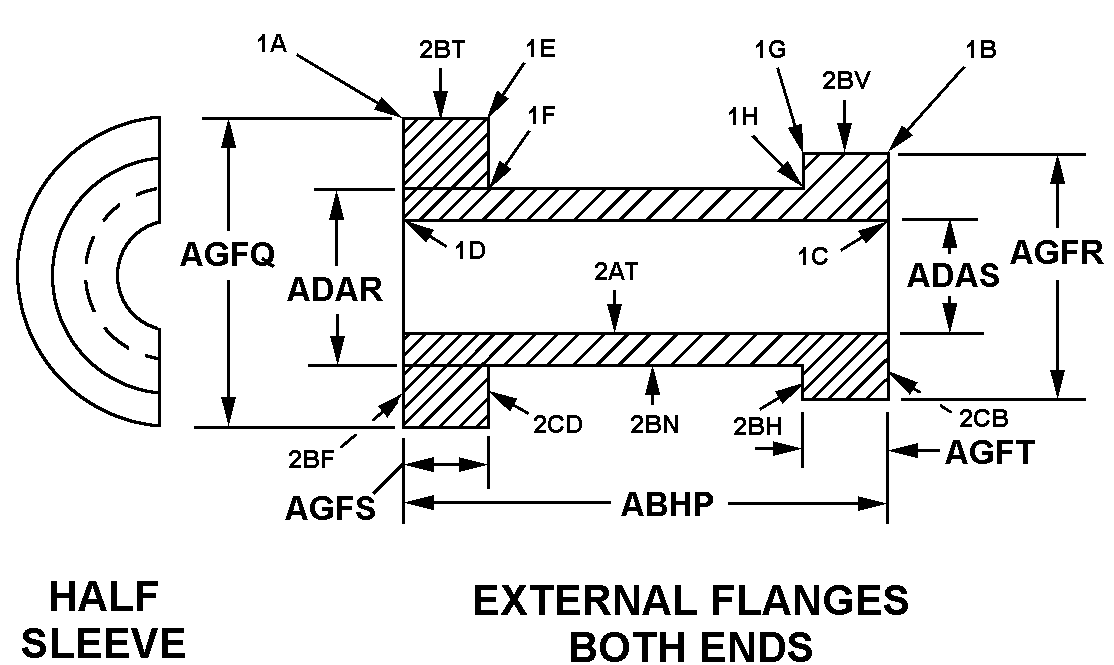

Drawings & Photos | NSN 3120-01-162-9812
Cross Reference | NSN 3120-01-162-9812
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B488800 | K0378 | ROLLS-ROYCE MILITARY AERO ENGINES LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-162-9812
Related Products | NSN 3120-01-162-9812
Technical Data | NSN 3120-01-162-9812
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | L65,FSCM K0378 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| STYLE DESIGNATOR | 18D-3 HALF SLEEVE INTERNAL FLANGE AT BOTH ENDS |
| OVERALL LENGTH | 14.0 MILLIMETERS NOMINAL |
| BODY OUTSIDE DIAMETER | 23.875 MILLIMETERS MINIMUM AND 24.000 MILLIMETERS MAXIMUM |
| BODY INSIDE DIAMETER | 14.50 MILLIMETERS MINIMUM AND 14.625 MILLIMETERS MAXIMUM |
| LEFT INTERNAL FLANGE HOLE DIAMETER | 13.500 MILLIMETERS MINIMUM AND 13.625 MILLIMETERS MAXIMUM |
| RIGHT INTERNAL FLANGE HOLE DIAMETER | 13.500 MILLIMETERS MINIMUM AND 13.625 MILLIMETERS MAXIMUM |
| LEFT INTERNAL FLANGE WIDTH | 4.5 MILLIMETERS NOMINAL |
| RIGHT INTERNAL FLANGE WIDTH | 4.5 MILLIMETERS NOMINAL |
| LEFT FLANGE OUTSIDE DIAMETER | 29.0 MILLIMETERS NOMINAL |
| RIGHT FLANGE OUTSIDE DIAMETER | 29.0 MILLIMETERS NOMINAL |
| LEFT FLANGE WIDTH | 2.5 MILLIMETERS NOMINAL |
| RIGHT FLANGE WIDTH | 2.5 MILLIMETERS NOMINAL |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER ROUND LEFT FLANGE BODY CORNER SQUARE RIGHT FLANGE OUTSIDE LEFT CORNER ROUND RIGHT FLANGE BODY CORNER |
| SURFACE FINISH | 63.0 MICROINCHES OVERALL |
| (NON-CORE DATA) CHAMFER LENGTH | 1.25 MILLIMETERS NOMINAL 1.25 MILLIMETERS NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) RADIUS | 1.25 MILLIMETERS NOMINAL 1.25 MILLIMETERS NOMINAL |
| MANUFACTURERS CODE | K0378 |
| DESIGN CONTROL REFERENCE | B488800 |
Restrictions/Controls & Freight Information | NSN 3120-01-162-9812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-162-9812
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
