NSN 3120-01-161-5545 762969, 01-161-5545, 011615545
Product Details | SLEEVE BUSHING
3120-01-161-5545 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 762969, 3120-01-161-5545, 01-161-5545, 3120011615545, 011615545
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 SEP 1983 | 01-161-5545 | 13206 ( BUSHING, SLEEVE ) |

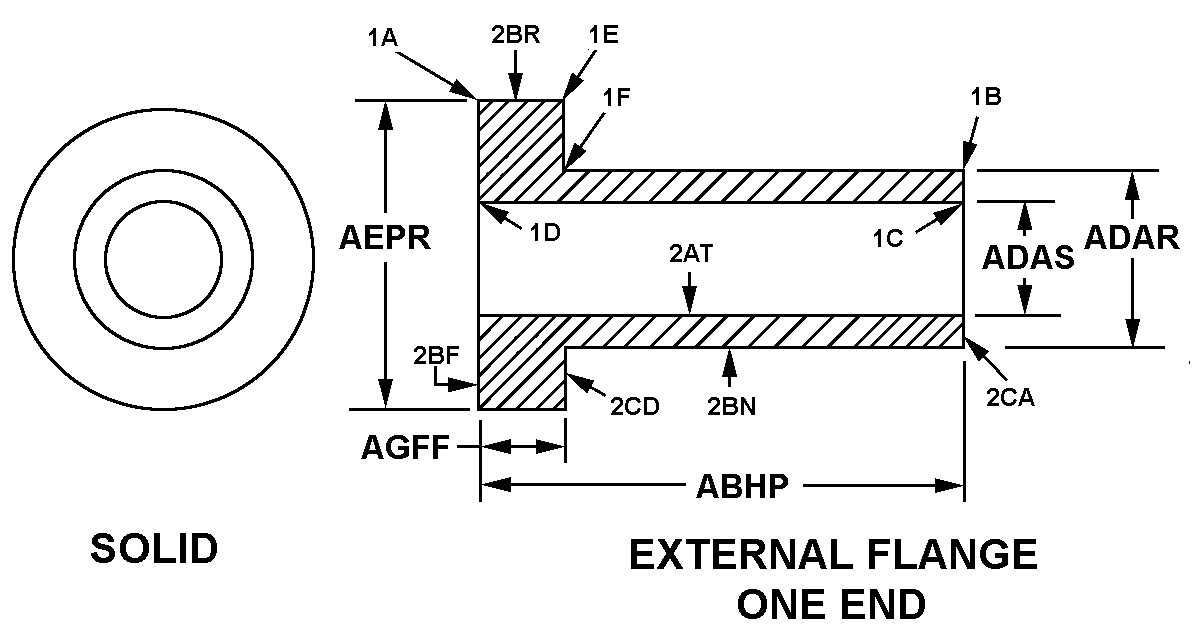

Drawings & Photos | NSN 3120-01-161-5545
Cross Reference | NSN 3120-01-161-5545
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 762969 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-161-5545
Technical Data | NSN 3120-01-161-5545
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E9310 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6260 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 79.0 ROCKWELL A MINIMUM AND 85.0 ROCKWELL A MAXIMUM CASE 30.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM CORE |
| SURFACE TREATMENT | CARBON INSIDE DIAMETER SURFACE OF BODY |
| STYLE DESIGNATOR | 22C-1 SOLID INTERNAL FLANGE ONE END |
| OVERALL LENGTH | 0.9050 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.6910 INCHES MINIMUM AND 2.6920 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.4240 INCHES MINIMUM AND 2.4280 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.8400 INCHES MINIMUM AND 2.8600 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0600 INCHES MINIMUM AND 0.0700 INCHES MAXIMUM |
| RIGHT INTERNAL FLANGE WIDTH | 0.0730 INCHES NOMINAL |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 3 HOLE |
| HOLE DIAMETER | 0.1225 INCHES MINIMUM AND 0.1245 INCHES MAXIMUM FIRST |
| SPECIAL FEATURES | HOLES EQ SP AT 45DEG ANGLE 0.43275 IN. FROM LEFT END |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0400 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM 0.0470 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 762969 |
Restrictions/Controls & Freight Information | NSN 3120-01-161-5545
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
