Product Details | SLEEVE BUSHING
3120-01-161-1507 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 650856, 3120-01-161-1507, 01-161-1507, 3120011611507, 011611507
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 02 SEP 1983 | 01-161-1507 | 13206 ( BUSHING, SLEEVE ) |

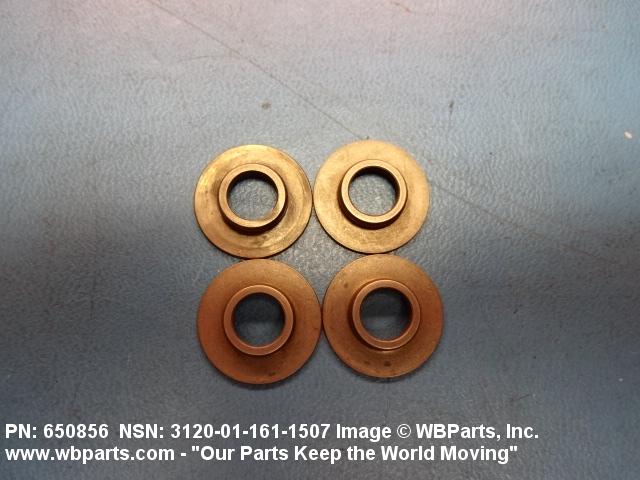

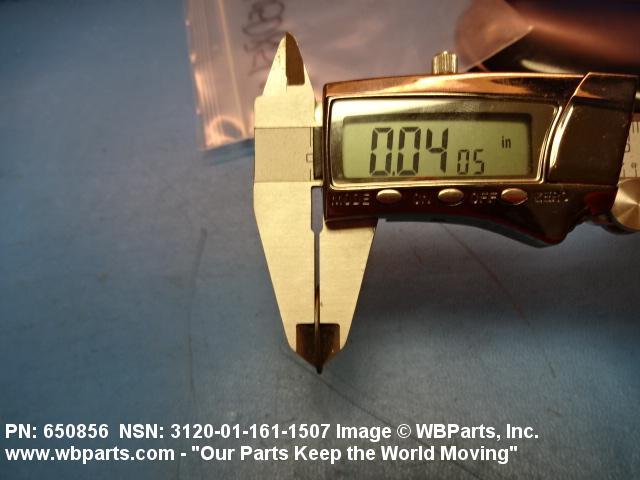

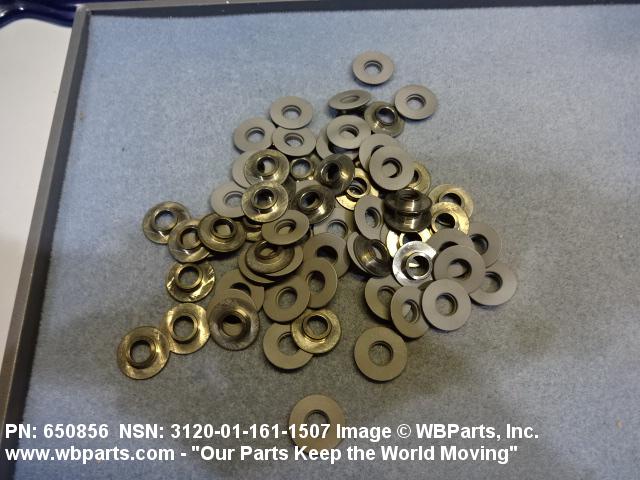

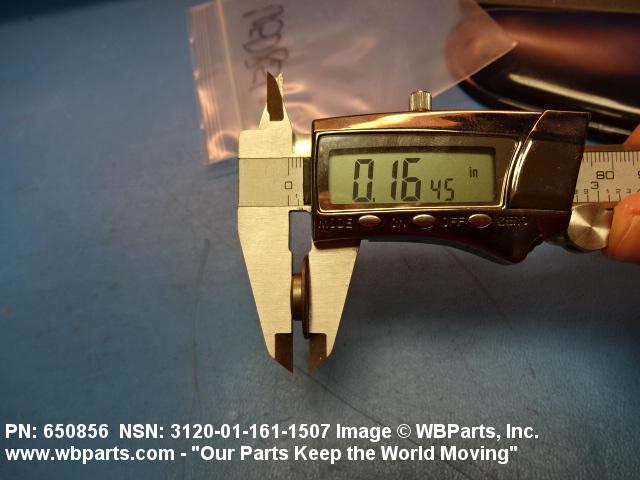

Drawings & Photos | NSN 3120-01-161-1507
Demand History | NSN 3120-01-161-1507
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-161-1507 | 2020-10-304 | 1 | DIBBS-RFPs |
| 650856 | 2018-09-260 | 80 | US |
| 3120-01-161-1507 | 2018-07-185 | 373 | DIBBS |
| 3120-01-161-1507 | 2018-06-166 | 72 | United States |
| 3120-01-161-1507 | 2018-05-137 | 587 | DIBBS |
| 3120-01-161-1507 | 2018-05-129 | 587 | DIBBS |
| 3120-01-161-1507 | 2018-05-127 | 115 | DIBBS |
| 3120-01-161-1507 | 2018-04-120 | 115 | DIBBS |
| 3120-01-161-1507 | 2018-04-114 | 72 | DIBBS |
| 3120-01-161-1507 | 2018-04-106 | 72 | DIBBS |
| 3120-01-161-1507 | 2018-04-102 | 156 | DIBBS |
| 3120-01-161-1507 | 2018-04-94 | 156 | DIBBS |
| 3120-01-161-1507 | 2015-05-151 | 268 | DIBBS |
| 3120-01-161-1507 | 2015-05-125 | 234 | DIBBS |
| 3120-01-161-1507 | 2014-07-208 | 200 | DIBBS |
| 3120-01-161-1507 | 2014-07-198 | 200 | DIBBS |
| 3120-01-161-1507 | 2014-04-93 | 275 | DIBBS |
| 3120-01-161-1507 | 2013-12-336 | 234 | DIBBS |
| 3120-01-161-1507 | 2013-10-303 | 109 | DIBBS |
| 3120-01-161-1507 | 2013-10-290 | 115 | DIBBS |
| 3120-01-161-1507 | 2013-10-282 | 115 | DIBBS |
| 3120-01-161-1507 | 2013-02-55 | 383 | DIBBS |
| 3120-01-161-1507 | 2013-02-39 | 383 | DIBBS |
| 3120-01-161-1507 | 2012-12-352 | 101 | DIBBS |
| 3120-01-161-1507 | 2012-03-89 | 250 | DIBBS |
| 3120-01-161-1507 | 2012-03-68 | 33 | DIBBS |
| 3120-01-161-1507 | 2011-08-227 | 150 | DIBBS |
| 3120-01-161-1507 | 2011-07-211 | 23 | DIBBS |
| 3120-01-161-1507 | 2011-06-157 | 43 | DIBBS |
| 3120-01-161-1507 | 2009-05-147 | 27 | DIBBS |
| 3120-01-161-1507 | 2007-08-215 | 336 | DIBBS |
| 3120-01-161-1507 | 2007-07-191 | 161 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-161-1507
Related Products | NSN 3120-01-161-1507
Technical Data | NSN 3120-01-161-1507
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5663 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

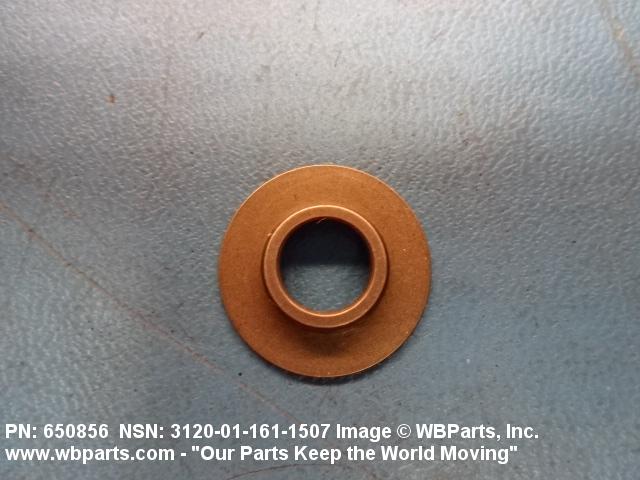

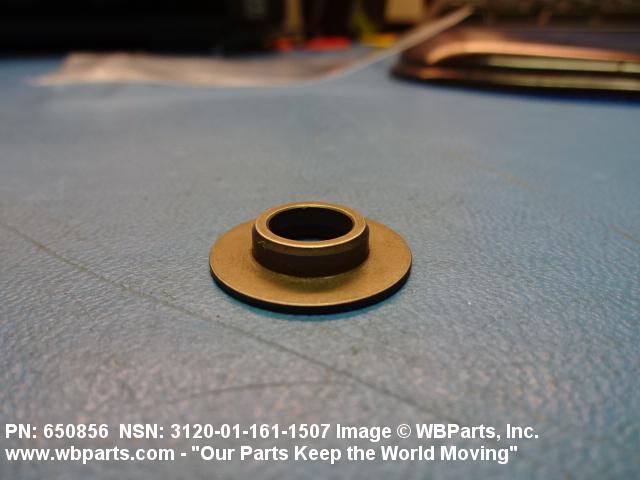

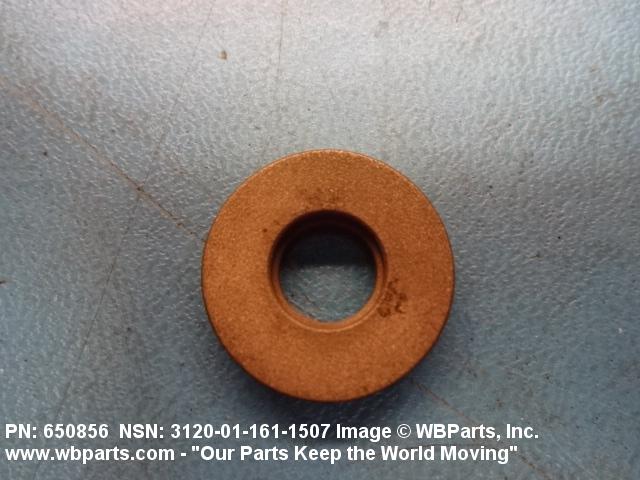

| STYLE DESIGNATOR | 22C-1 SOLID INTERNAL FLANGE ONE END |

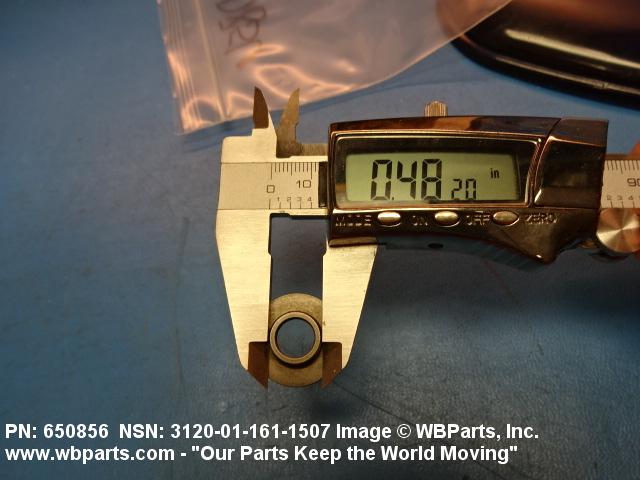

| BODY OUTSIDE DIAMETER | 0.4800 INCHES MINIMUM AND 0.4820 INCHES MAXIMUM |

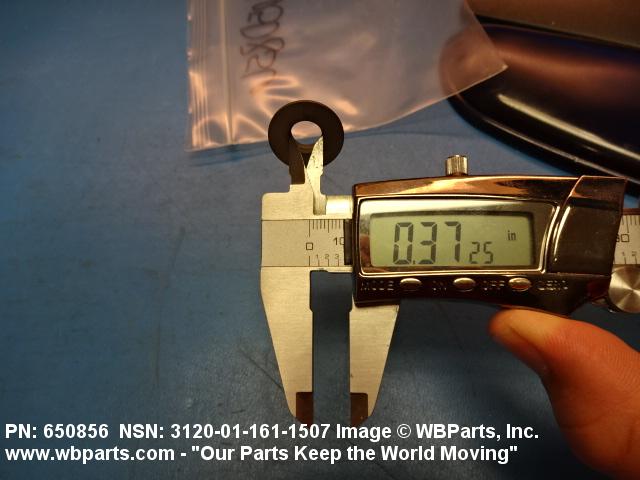

| BODY INSIDE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3850 INCHES MAXIMUM |

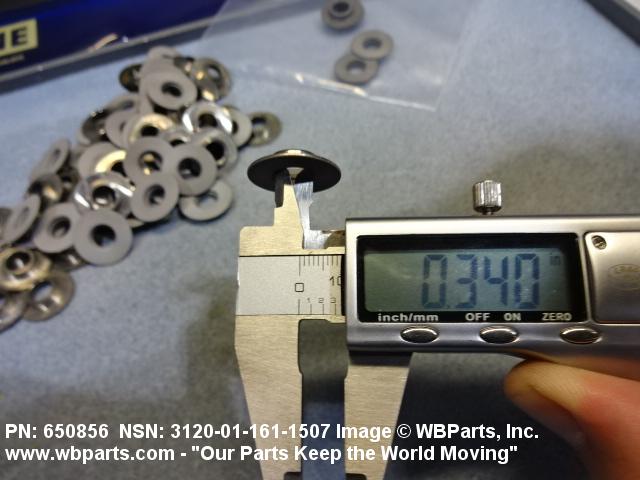

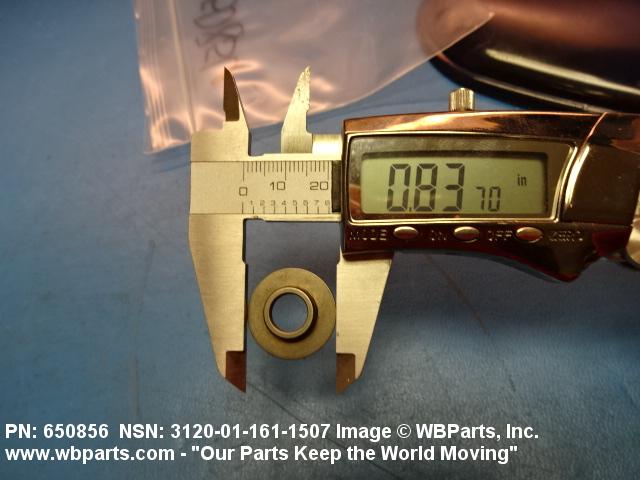

| FLANGE OUTSIDE DIAMETER | 0.8300 INCHES MINIMUM AND 0.8500 INCHES MAXIMUM |
