NSN 3120-01-122-0989 10107791 , 74A4107642001, 74A410764-2001
Product Details | SLEEVE BEARING
3120-01-122-0989 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 10107791 , 74A4107642001, 74A410764-2001 , 3120-01-122-0989, 01-122-0989, 3120011220989, 011220989
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 NOV 1981 | 01-122-0989 | 13205 ( BEARING, SLEEVE ) |

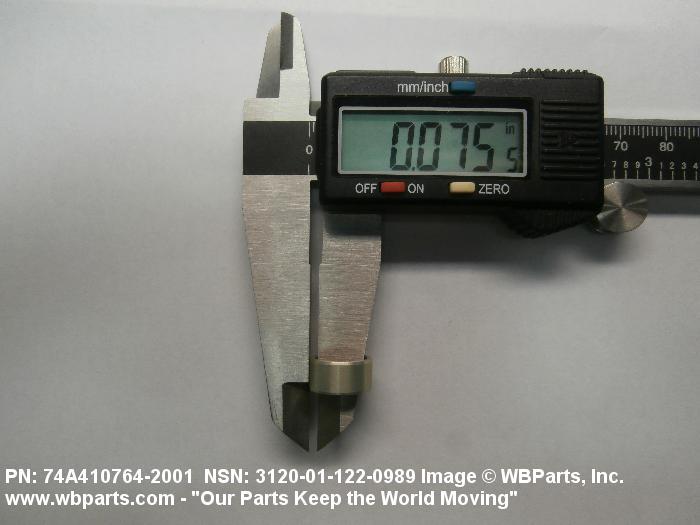

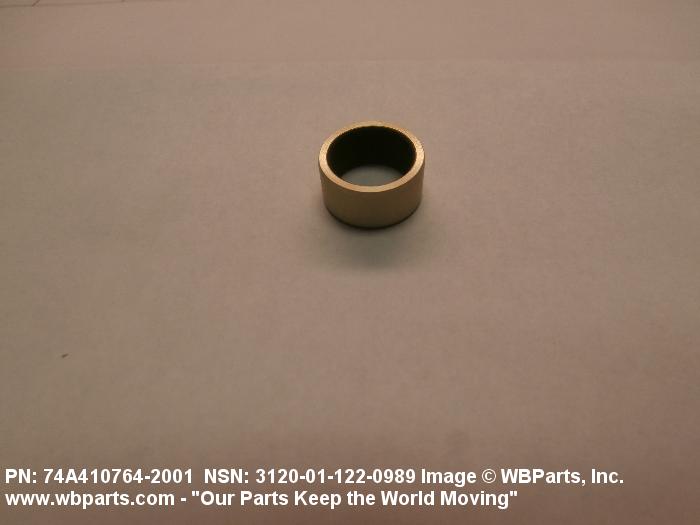

Drawings & Photos | NSN 3120-01-122-0989
Demand History | NSN 3120-01-122-0989
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-122-0989 | 2019-01-24 | 1 | DIBBS-RFPs |
| 3120-01-122-0989 | 2018-11-324 | 2716 | DIBBS |
| 3120-01-122-0989 | 2018-11-319 | 450 | DIBBS |
| 3120-01-122-0989 | 2018-11-319 | 450 | DIBBS |
| 74A4107642001 | 2018-08-239 | 500 | United States |
| 3120-01-122-0989 | 2018-04-100 | 2651 | DIBBS |
| 3120-01-122-0989 | 2018-03-86 | 1 | DIBBS-RFPs |
| 3120-01-122-0989 | 2018-03-74 | 2202 | DIBBS |
| 3120-01-122-0989 | 2018-03-60 | 626 | DIBBS |
| 74A4107642001 | 2014-11-323 | 6 | Spain |
| 3120-01-122-0989 | 2014-11-306 | 10 | Spain |
| 3120-01-122-0989 | 2014-03-78 | 327 | DIBBS |
Cross Reference | NSN 3120-01-122-0989
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A410764-2001 | 2M490 | NASSAU TOOL WORKS, INC. |
| 74A410764-2001 | 2U518 | BLAIR INDUSTRIES, INC. |
| 74A410764-2001 | 32168 | ALL TOOLS INC. DBA E2 PRECISION PRODUCTS |
| 74A410764-2001 | 35962 | MESSIER-DOWTY INC DBA MESSIER-DOWTY |
| 74A410764-2001 | 36164 | HEROUX-DEVTEK INC |
| 74A410764-2001 | 50601 | CIRCOR AEROSPACE, INC. |
| 74A410764-2001 | 6Z056 | CM MANUFACTURING, INC. |
| 74A410764-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A410764-2001 | 85941 | MAGELLAN AEROSPACE, NEW YORK, INC. DIV ELLANEF MANUFACTURING |
| 74A410764-2001 | 9K006 | CIRCOR AEROSPACE, INC. DBA CIRCOR AEROSPACE MACHINING |
| 74A410764-2001 | S5495 | ISRAEL AEROSPACE INDUSTRIES LTD. SHL - AERO ASSEMBLIES DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-122-0989
Technical Data | NSN 3120-01-122-0989
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER ALUMINUM ALLOY 2024 OUTER LAYER |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.2750 INCHES MINIMUM AND 0.2800 INCHES MAXIMUM |

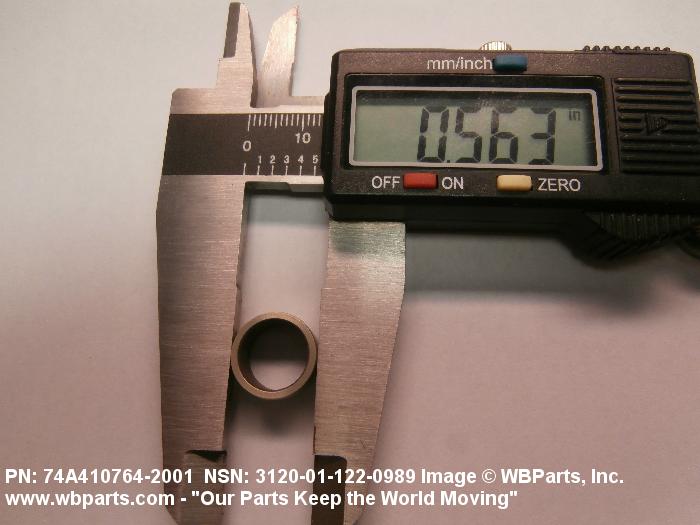

| BODY OUTSIDE DIAMETER | 0.5637 INCHES MINIMUM AND 0.5641 INCHES MAXIMUM |

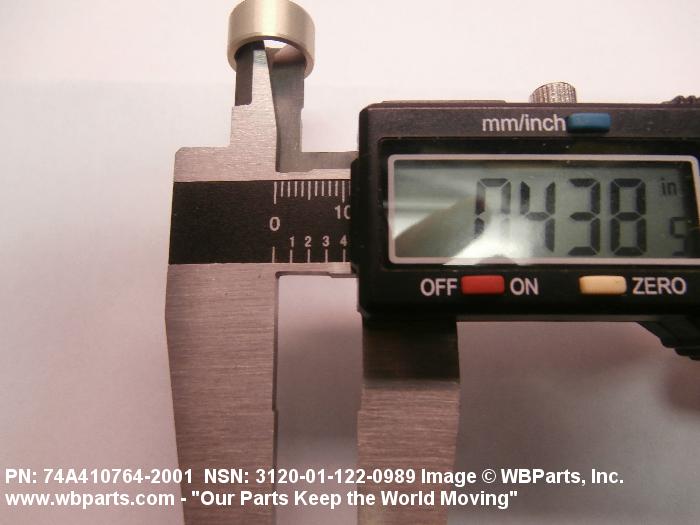

| BODY INSIDE DIAMETER | 0.4375 INCHES MINIMUM AND 0.4385 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 125.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF BODY |
| TEST DATA DOCUMENT | 76301-PS210202 SPECIFICATION |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A410764-2001 |
Restrictions/Controls & Freight Information | NSN 3120-01-122-0989
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-122-0989
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
