NSN 3120-01-059-8023 2006404145, 2006404-145, 2006404177
Product Details | SLEEVE BUSHING
3120-01-059-8023 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 2006404145, 2006404-145, 2006404177, 2006404-177, 3120-01-059-8023, 01-059-8023, 3120010598023, 010598023
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 APR 1978 | 01-059-8023 | 13206 ( BUSHING, SLEEVE ) |

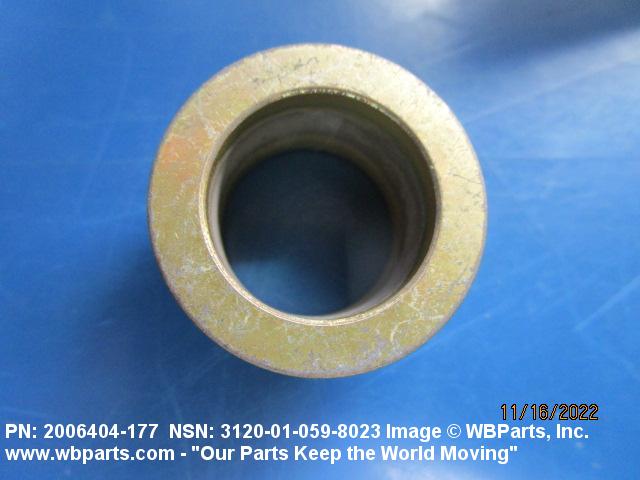

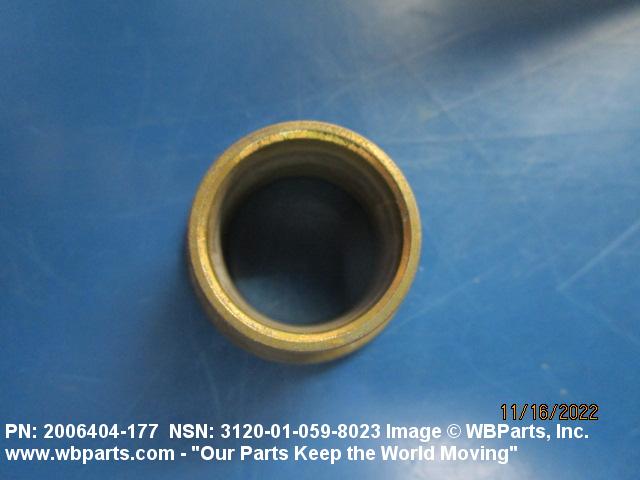

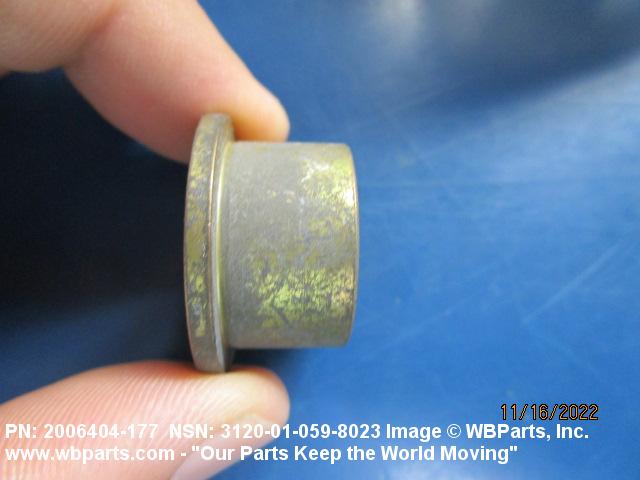

Drawings & Photos | NSN 3120-01-059-8023
Demand History | NSN 3120-01-059-8023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-059-8023 | 2024-10-276 | 72 | DIBBS |
| 3120-01-059-8023 | 2023-10-278 | 51 | DIBBS |
| 3120-01-059-8023 | 2023-04-102 | 51 | DIBBS |
| 3120-01-059-8023 | 2023-04-94 | 51 | DIBBS |
| 3120-01-059-8023 | 2022-11-313 | 10 | Denmark |
| 3120-01-059-8023 | 2022-07-200 | 45 | DIBBS |
| 3120-01-059-8023 | 2021-12-340 | 68 | DIBBS |
| 3120-01-059-8023 | 2021-11-332 | 68 | DIBBS |
| 3120-01-059-8023 | 2021-07-196 | 71 | DIBBS |
| 3120-01-059-8023 | 2021-07-188 | 71 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-059-8023
Technical Data | NSN 3120-01-059-8023
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 OR COPPER ALLOY 173 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530,HT FED SPEC ALL MATERIAL RESPONSES OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

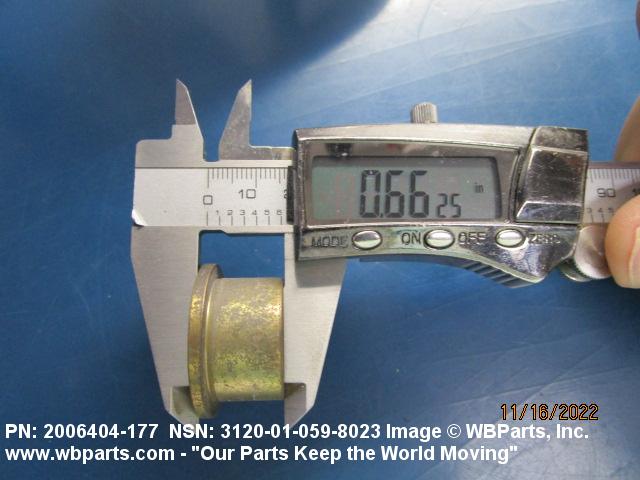

| OVERALL LENGTH | 0.6600 INCHES NOMINAL |

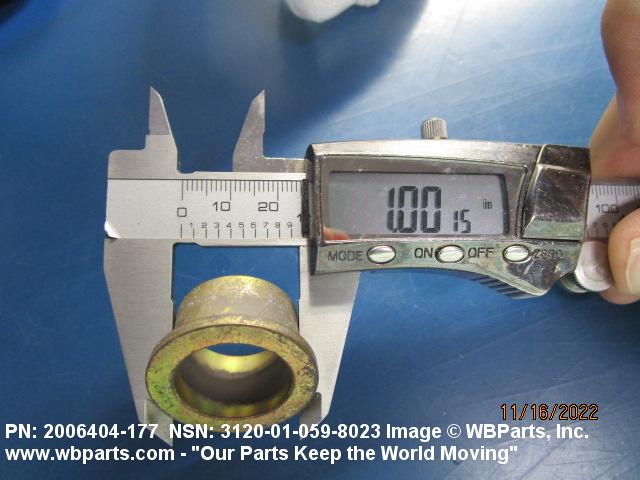

| BODY OUTSIDE DIAMETER | 1.0005 INCHES MINIMUM AND 1.0013 INCHES MAXIMUM |

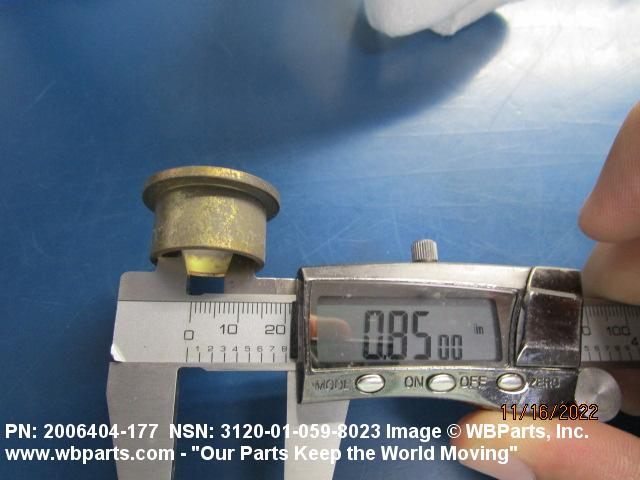

| BODY INSIDE DIAMETER | 0.8500 INCHES MINIMUM AND 0.8550 INCHES MAXIMUM |

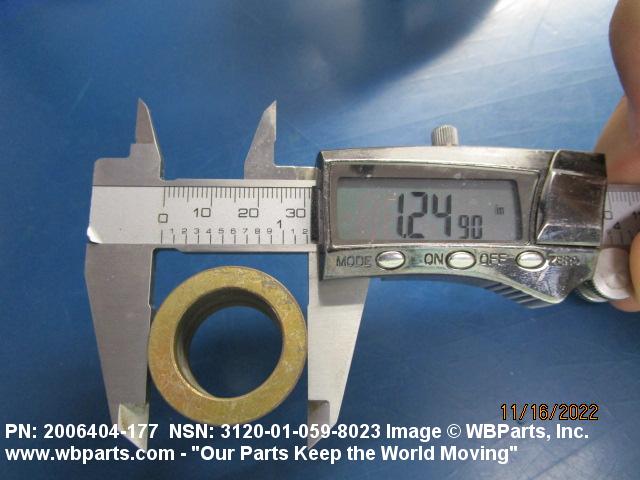

| FLANGE OUTSIDE DIAMETER | 1.2500 INCHES NOMINAL |
| FLANGE WIDTH | 0.1000 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | F-16 ACFT,GENERAL DYNAMICS |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0050 INCHES MINIMUM AND 0.0150 INCHES MAXIMUM 0.0200 INCHES MINIMUM AND 0.0300 INCHES MAXIMUM 0.0200 INCHES MINIMUM AND 0.0300 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) RELIEF GROOVE DEPTH | 0.0118 INCHES MINIMUM AND 0.0213 INCHES MAXIMUM |
| (NON-CORE DATA) RELIEF GROOVE WIDTH | 0.0200 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | 2006404-177 |
Restrictions/Controls & Freight Information | NSN 3120-01-059-8023
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-059-8023
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
