NSN 3120-01-058-9723 ABCW8V102, AGB8V14, BSSR82080G3

Product Details | SPHERICAL PLAIN BEARING

3120-01-058-9723 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.

Part Alternates: ABCW8V102, AGB8V14, BSSR82080G3, BSSR-8-2080-G3, KWB820SSBGA, KWB8-20SSBGA, 0350608E006, 03-506-08E006, 3120-01-058-9723, 01-058-9723, 3120010589723, 010589723

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	05 APR 1978	01-058-9723	13204 ( BEARING, PLAIN, SPHERICAL )

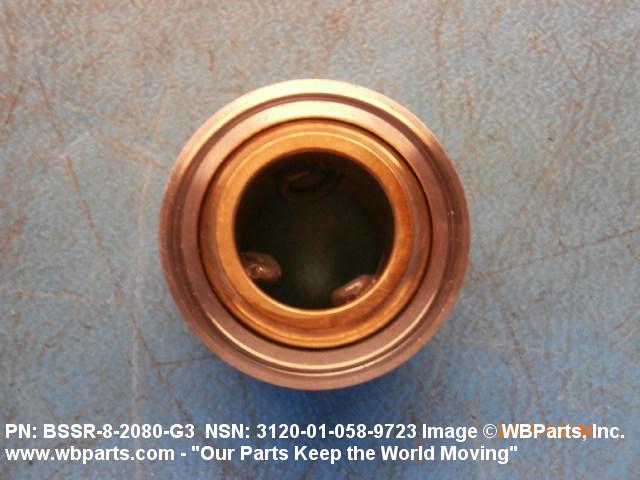

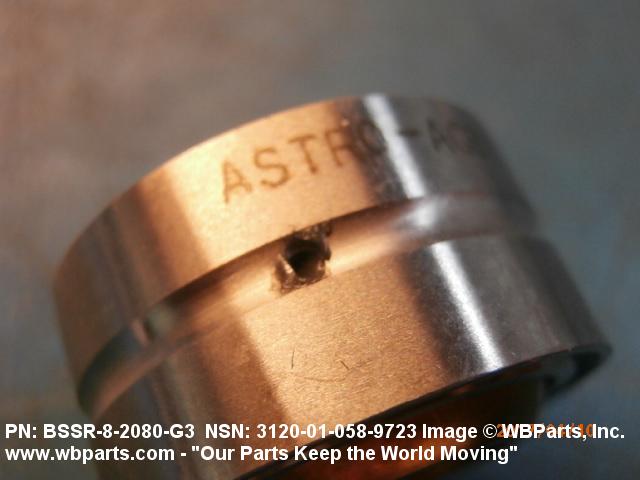

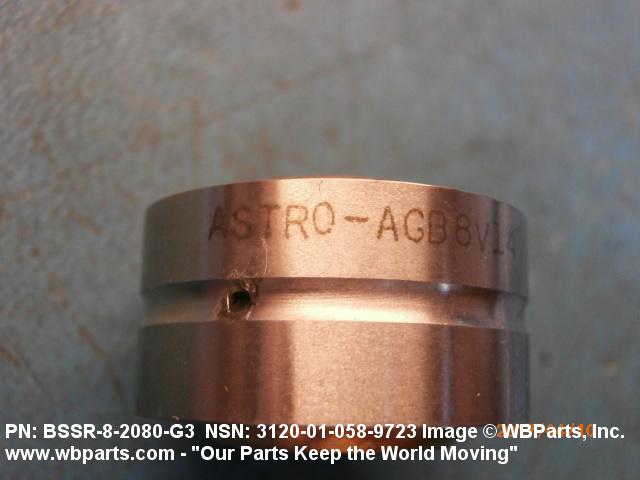

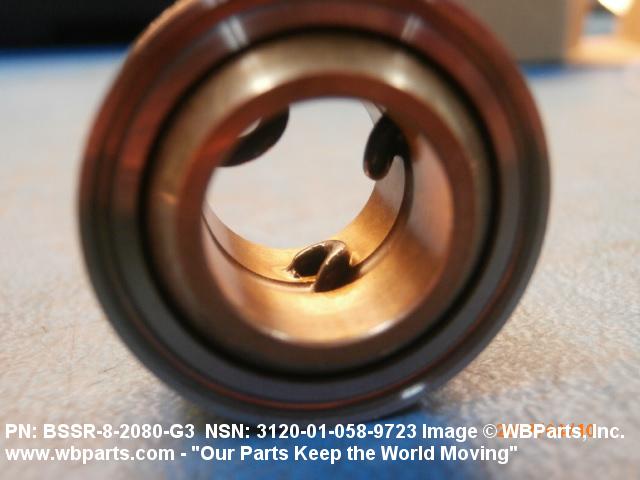

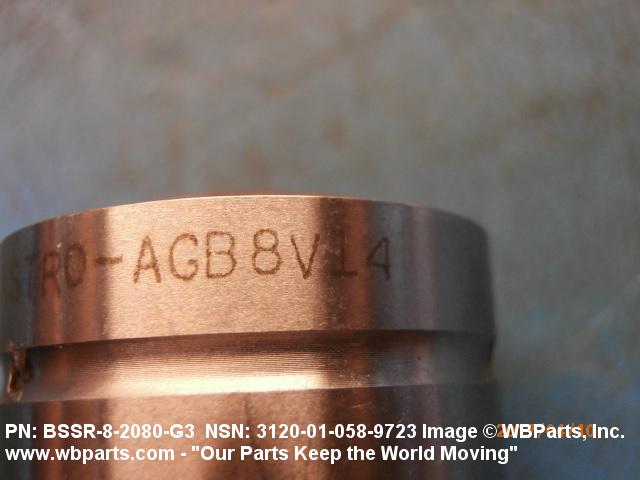

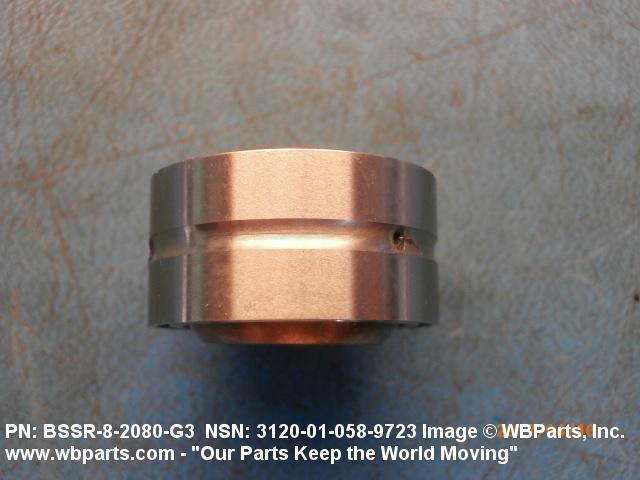

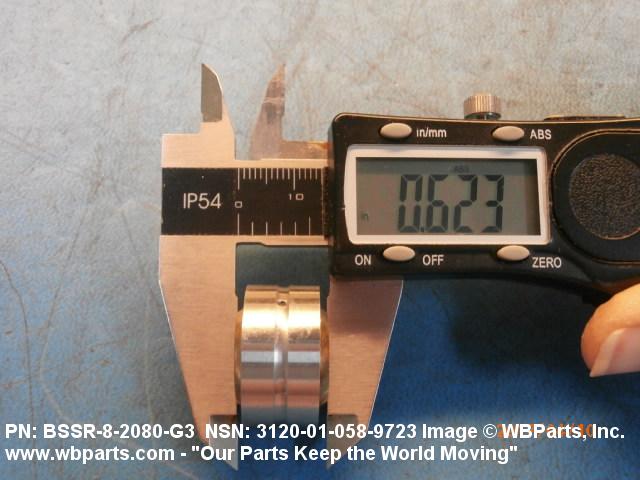

Drawings & Photos | NSN 3120-01-058-9723

Part Number	Request Date	QTY	Origin
3120-01-058-9723	2024-02-43	30	US
3120-01-058-9723	2023-11-324	15	United States
BSSR82080G3	2018-02-39	20	United States
3120-01-058-9723	2018-02-37	163	DIBBS
3120-01-058-9723	2017-03-88	40	United States
3120-01-058-9723	2014-03-75	80	DIBBS
3120-01-058-9723	2014-01-13	100	DIBBS
3120-01-058-9723	2011-05-131	145	DIBBS
3120-01-058-9723	2011-03-75	384	DIBBS
3120-01-058-9723	2011-01-04	61	DIBBS
BSSR82080G3	2010-11-309	25	US
BSSR82080G3	2010-06-153	40	US
3120-01-058-9723	2010-03-85	75	DIBBS
3120-01-058-9723	2010-03-61	60	DIBBS
3120-01-058-9723	2010-02-35	290	United States
3120-01-058-9723	2008-03-91	27	DIBBS
AGB8V14	2008-01-02	24	us
3120-01-058-9723	2007-04-93	100	US
3120-01-058-9723	2007-03-60	48	DIBBS
KWB820SSBGA	2006-01-11	50	US
0350608E006	2006-01-11	50	US

Cross Reference | NSN 3120-01-058-9723

Part Number	Cage Code	Manufacturer
03-506-08E006	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
ABCW8V102	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
AGB8V14	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
BSSR-8-2080-G3	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
BSSR-8-2080-G3	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
BSSR-8-2080-G3	17576	GOODRICH CORP DBA GOODRICH CORP
BSSR-8-2080-G3	81376	RBC SOUTHWEST PRODUCTS, INC.
KWB8-20SSBGA	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-058-9723

Compare

Related Products | NSN 3120-01-058-9723

3120-01-058-9724, 3120-01-059-0113, 3120-01-059-0127, 3120-01-059-0347, 3120-01-059-0717

Technical Data | NSN 3120-01-058-9723

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	14C SOLID
OVERALL LENGTH	0.6250 INCHES NOMINAL

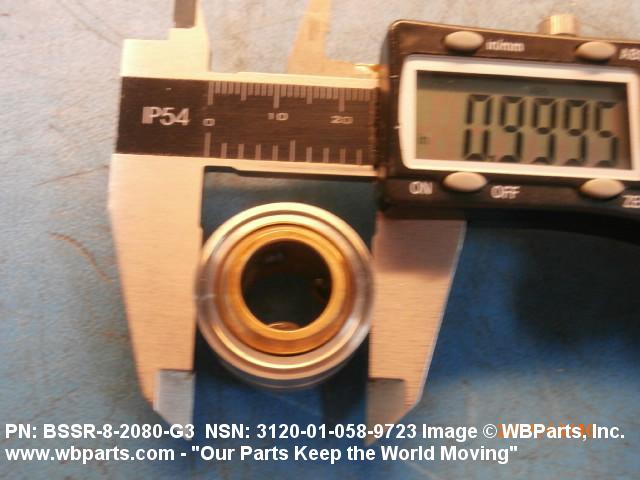

BODY OUTSIDE DIAMETER	1.0000 INCHES NOMINAL

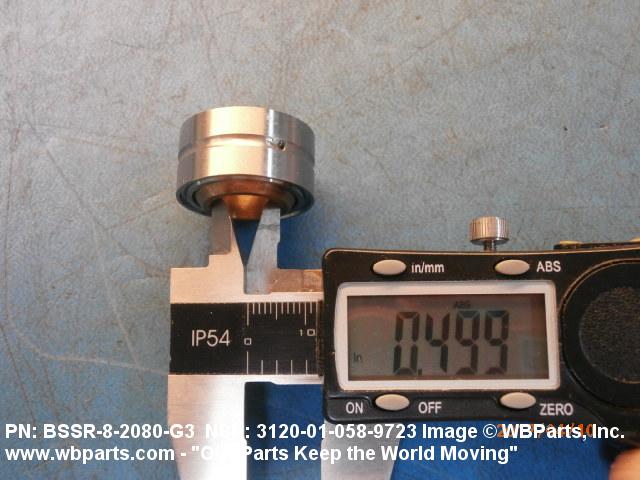

BODY INSIDE DIAMETER	0.5000 INCHES NOMINAL

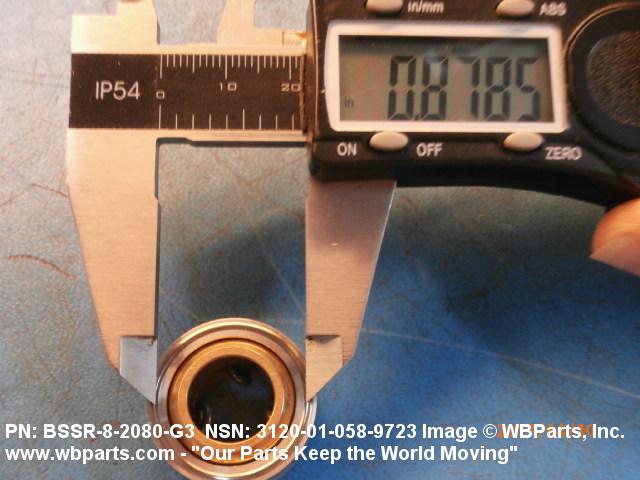

SPHERICAL BODY DIAMETER	0.8750 INCHES NOMINAL
CORNER SHAPE	SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER
ANTIROTATION/LUBRICATION TYPE AND QUANTITY	3 HOLE
HOLE DIAMETER	0.5000 INCHES NOMINAL FIRST
SURFACE FINISH	125.0 MICROINCHES OVERALL
III END ITEM IDENTIFICATION	AIRCRAFT F-16,GENERAL DYNAMICS

Restrictions/Controls & Freight Information | NSN 3120-01-058-9723

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-058-9723

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	LE	SU:LANDING GEAR SYSTEMS AND COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
