NSN 3120-01-053-5656 4G14597101A, 4G14597-101A, 01-053-5656
Product Details | SLEEVE BUSHING
3120-01-053-5656 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 4G14597101A, 4G14597-101A, 3120-01-053-5656, 01-053-5656, 3120010535656, 010535656
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 JAN 1978 | 01-053-5656 | 13206 ( BUSHING, SLEEVE ) |

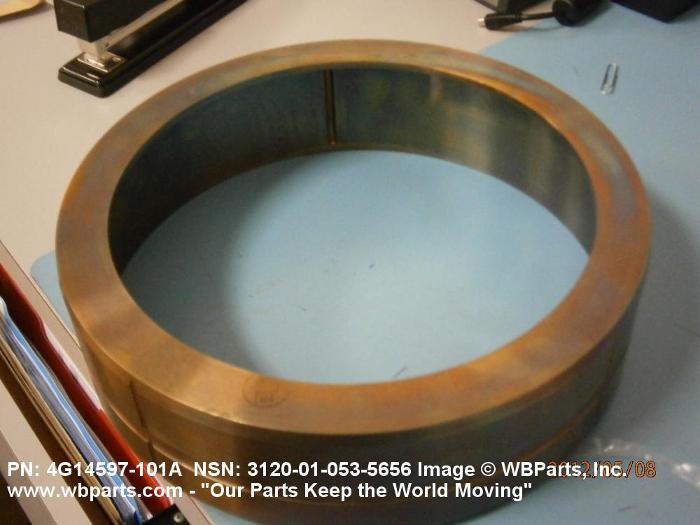

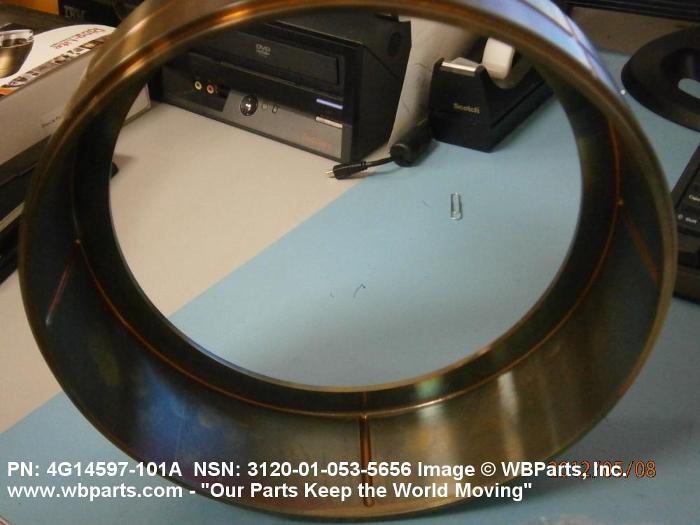

Drawings & Photos | NSN 3120-01-053-5656
Demand History | NSN 3120-01-053-5656
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4G14597101A | 2012-04-109 | 1 | United States |
| 3120-01-053-5656 | 2012-03-89 | 1 | United States |
Cross Reference | NSN 3120-01-053-5656
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4G14597-101A | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-053-5656
Technical Data | NSN 3120-01-053-5656
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 1.9730 INCHES MINIMUM AND 1.9780 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.4630 INCHES MINIMUM AND 2.4730 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.2530 INCHES MINIMUM AND 2.2550 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 2.9000 INCHES NOMINAL |
| FLANGE WIDTH | 0.1880 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| LUBRICANT ACCOMMODATION STYLE | 67 GROOVED CLOSED BOTH ENDS |
| SURFACE GROOVE LOCATION AND QUANTITY | 1 INTERNAL |
| SPECIAL FEATURES | ITEM IS PART OF A TRUNNION PIN BOLT,YOKE ASSEMBLY,STRUT ASSEMBLY,OF MAIN LANDING GEAR OF ACFT |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 4G14597-101A |
Restrictions/Controls & Freight Information | NSN 3120-01-053-5656
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-053-5656
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
