NSN 3120-01-053-2949 5002627, 01-053-2949, 010532949
Product Details | THRUST WASHER BEARING
3120-01-053-2949 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: 5002627, 3120-01-053-2949, 01-053-2949, 3120010532949, 010532949
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1978 | 01-053-2949 | 13211 ( BEARING, WASHER, THRUST ) |
Drawings & Photos | NSN 3120-01-053-2949
Demand History | NSN 3120-01-053-2949
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-053-2949 | 2023-12-353 | 225 | DIBBS |
| 3120-01-053-2949 | 2021-05-131 | 193 | DIBBS |
| 3120-01-053-2949 | 2020-03-83 | 117 | DIBBS |
| 3120-01-053-2949 | 2018-06-164 | 318 | DIBBS |
| 3120-01-053-2949 | 2014-02-44 | 222 | DIBBS |
| 3120-01-053-2949 | 2014-02-36 | 222 | DIBBS |
Cross Reference | NSN 3120-01-053-2949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5002627 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-053-2949
Technical Data | NSN 3120-01-053-2949
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 23 ROUND |
| OUTSIDE DIAMETER | 4.1750 INCHES MINIMUM AND 4.1850 INCHES MAXIMUM |

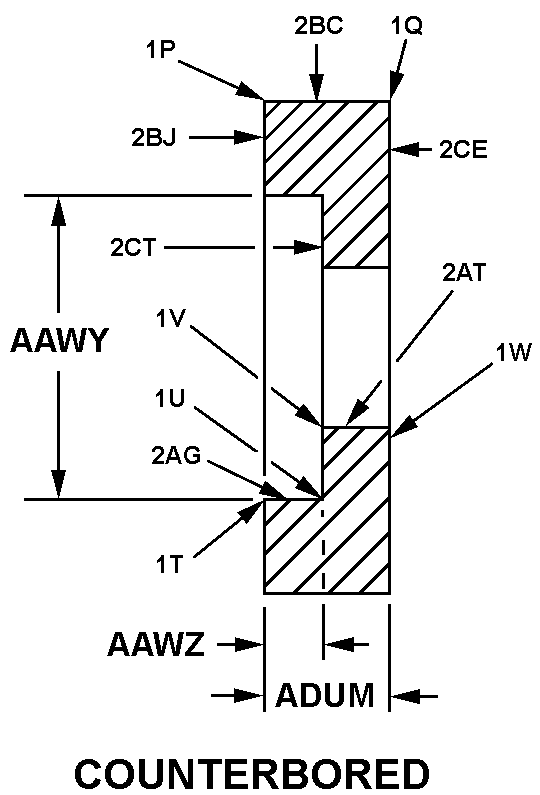

| CROSS-SECTIONAL SHAPE STYLE | 37 COUNTERBORED |
| COUNTERBORE DIAMETER | 3.9370 INCHES MINIMUM AND 3.9570 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.0700 INCHES MINIMUM AND 0.0850 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.1900 INCHES MINIMUM AND 0.2000 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 42 ROUND |
| DIAMETER | 3.0370 INCHES MINIMUM AND 3.0570 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 5002627 |
Restrictions/Controls & Freight Information | NSN 3120-01-053-2949
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-053-2949
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YP | SU:GAS TURBINES AND JET ENGINES NON-AIRCRAFT |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
