NSN 3120-01-043-0084 MS2124109C012, MS21241-09C012, M81934/2-09C012
Product Details | SLEEVE BEARING
3120-01-043-0084 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: MS2124109C012, MS21241-09C012, M81934/2-09C012, M81934/2-10C012, M81934209C012, M81934210C012, ADLF09C012, AHJF09C012, AS81934/2, AS819342, FBJW18TH09C012, FBJW18TH-09C012, FBJW18TH12M, FBRR09C012, FBRR-09C012, KDJ09C012342, KDJ09C012-342, KQJUDSB09C012M, KQJUDSB-09C012M, MIL-B-81934/2, MILB819342, 0728209C012, 07-282-09C012, 1232009C012, 123-2009C012, 3120-01-043-0084, 01-043-0084, 3120010430084, 010430084
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 JUN 1977 | 01-043-0084 | 13205 ( BEARING, SLEEVE ) |

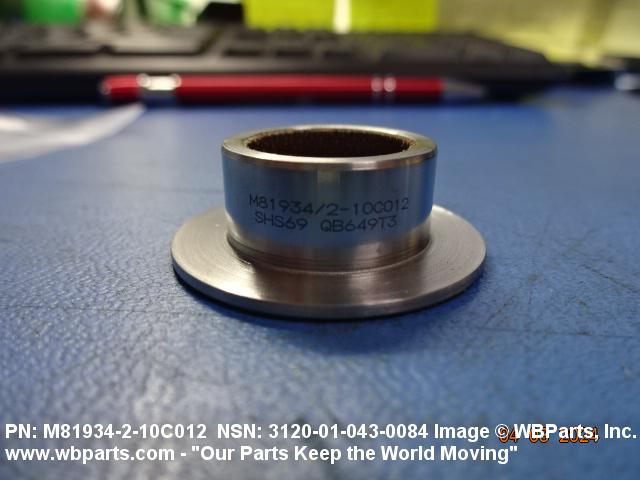

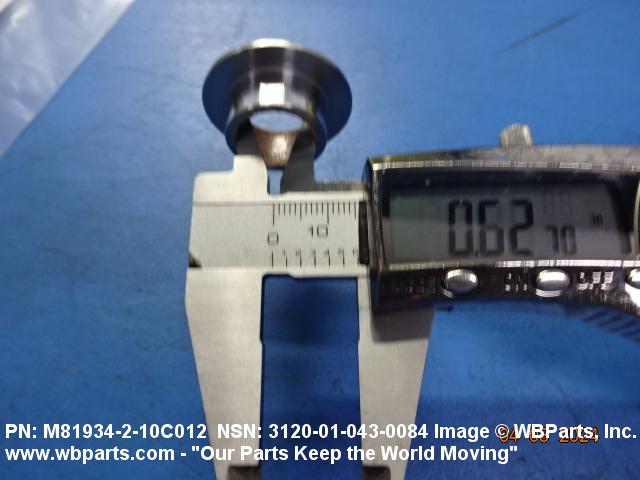

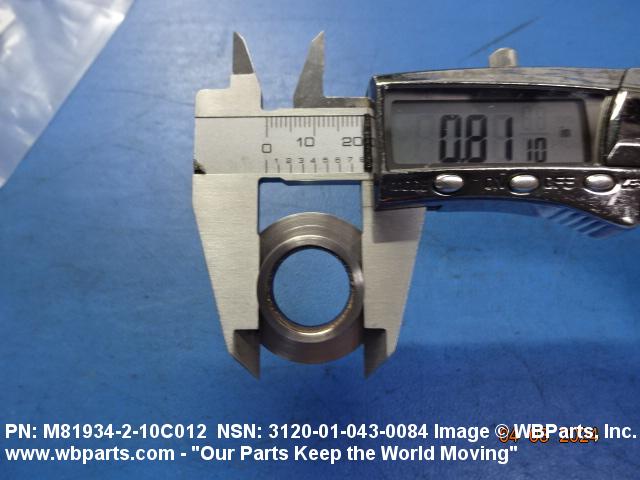

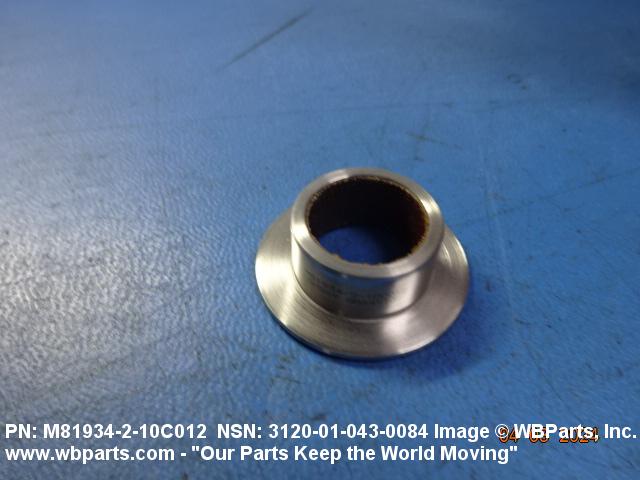

Drawings & Photos | NSN 3120-01-043-0084
Demand History | NSN 3120-01-043-0084
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M81934210C012 | 2024-03-19 | 25 | United States |
| 3120-01-043-0084 | 2024-03-13 | 31 | United States |
| 3120-01-043-0084 | 2023-06-30 | 450 | US |
| M81934210C012 | 2023-05-16 | 244 | US |
| M81934210C012 | 2022-10-31 | 200 | US |
| 3120-01-043-0084 | 2022-10-31 | 200 | US |
| 3120-01-043-0084 | 2021-08-03 | 4 | TW |
| M81934210C012 | 2021-05-03 | 3 | United States |
| 3120-01-043-0084 | 2021-05-02 | 6 | United States |
| AS819342 | 2020-09-18 | 12 | US |
| 3120-01-043-0084 | 2020-03-04 | 40 | United States |
| 3120-01-043-0084 | 2020-02-11 | 146 | United States |
| 3120-01-043-0084 | 2020-02-11 | 146 | United States |
| AS819342 | 2019-09-05 | 36 | United States |
| 3120-01-043-0084 | 2019-08-26 | 4 | US |
| 3120-01-043-0084 | 2019-06-21 | 120 | US |
| 3120-01-043-0084 | 2017-07-18 | 382 | DIBBS |
| AS819342 | 2013-06-20 | 2 | AU |
| 3120-01-043-0084 | 2012-06-14 | 120 | United States |
| 3120-01-043-0084 | 2012-03-25 | 172 | DIBBS |
| 3120-01-043-0084 | 2011-10-07 | 131 | DIBBS |
| AS819342 | 2011-08-19 | 2 | us |
| AS819342 | 2009-10-23 | 550 | us |
| MILB819342 | 2007-11-16 | 200 | US |
| MILB819342 | 2007-09-21 | 4 | US |
Cross Reference | NSN 3120-01-043-0084
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07-282-09C012 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 123-2009C012 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| ADLF09C012 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AHJF09C012 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| AS81934/2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| FBJW18TH-09C012 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| FBJW18TH12M | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| FBJW18TH12M | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| FBRR-09C012 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| KDJ09C012-342 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KQJUDSB-09C012M | 50632 | KAMATICS CORPORATION |
| M81934/2-09C012 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81934/2-10C012 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-B-81934/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21241-09C012 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-043-0084
Related Products | NSN 3120-01-043-0084
Technical Data | NSN 3120-01-043-0084
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE INNER LAYER STEEL COMP 630 OUTER LAYER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER LAYER |
| STYLE DESIGNATOR | 22C SOLID |

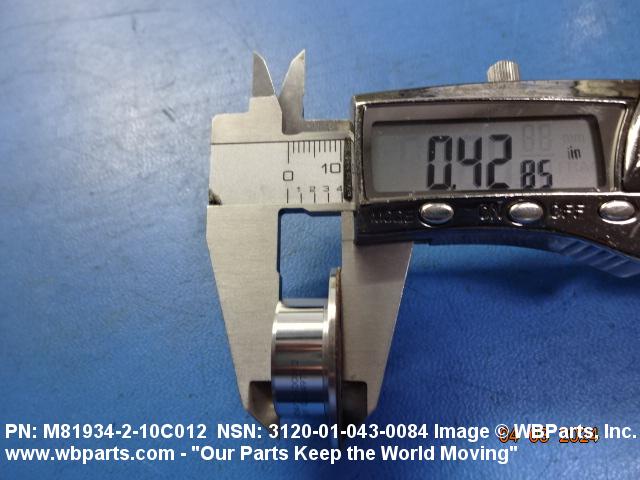

| OVERALL LENGTH | 0.4225 INCHES MINIMUM AND 0.4375 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.6887 INCHES MINIMUM AND 0.6892 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.5630 INCHES MINIMUM AND 0.5640 INCHES MAXIMUM |

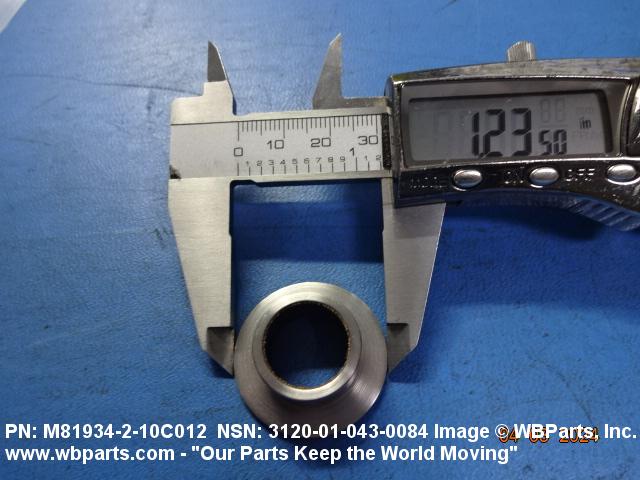

| FLANGE OUTSIDE DIAMETER | 1.1050 INCHES MINIMUM AND 1.1250 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0575 INCHES MINIMUM AND 0.0625 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SPECIAL FEATURES | PLASTIC LINER BONDED TO LEFT END SURFACE OF FLANGE |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0620 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M81934/2-09C012 |
Restrictions/Controls & Freight Information | NSN 3120-01-043-0084
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-043-0084
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
