NSN 3120-01-019-4645 642828PK, 64-2828PK, 01-019-4645
Product Details | THRUST WASHER BEARING
3120-01-019-4645 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: 642828PK, 64-2828PK, 3120-01-019-4645, 01-019-4645, 3120010194645, 010194645
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 APR 1976 | 01-019-4645 | 13211 ( BEARING, WASHER, THRUST ) |
Drawings & Photos | NSN 3120-01-019-4645
Cross Reference | NSN 3120-01-019-4645
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 64-2828PK | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-019-4645
Technical Data | NSN 3120-01-019-4645
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

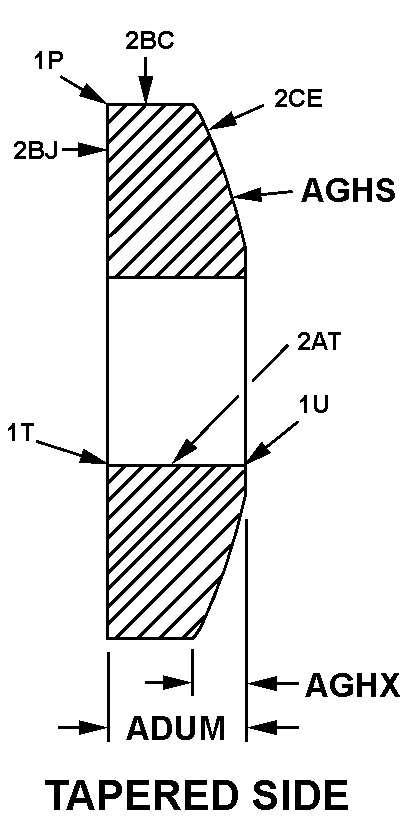

| CROSS-SECTIONAL SHAPE STYLE | 39 TAPERED SIDE |
| OVERALL THICKNESS | 0.5000 INCHES NOMINAL |
| SPHERICAL DEPTH | 0.5000 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 42 ROUND |
| DIAMETER | 2.0000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-01-019-4645
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
