NSN 3120-01-009-9838 NAS53812P29, NAS538-12P29, 01-009-9838
Product Details | SLEEVE BUSHING
3120-01-009-9838 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS53812P29, NAS538-12P29, 3120-01-009-9838, 01-009-9838, 3120010099838, 010099838
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 SEP 1975 | 01-009-9838 | 13206 ( BUSHING, SLEEVE ) |

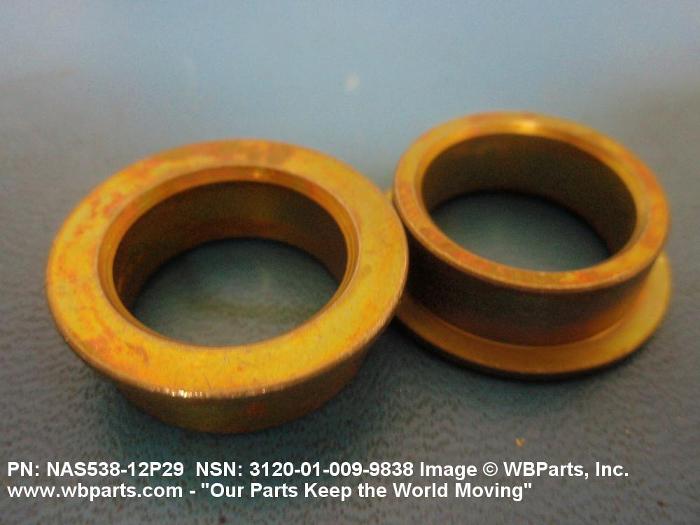

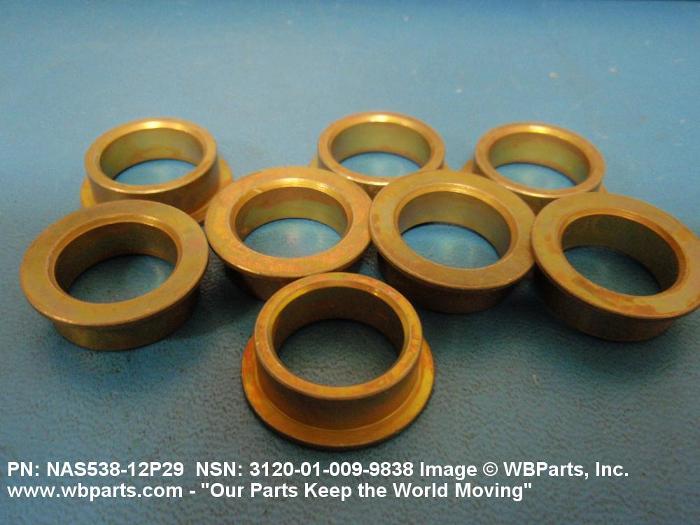

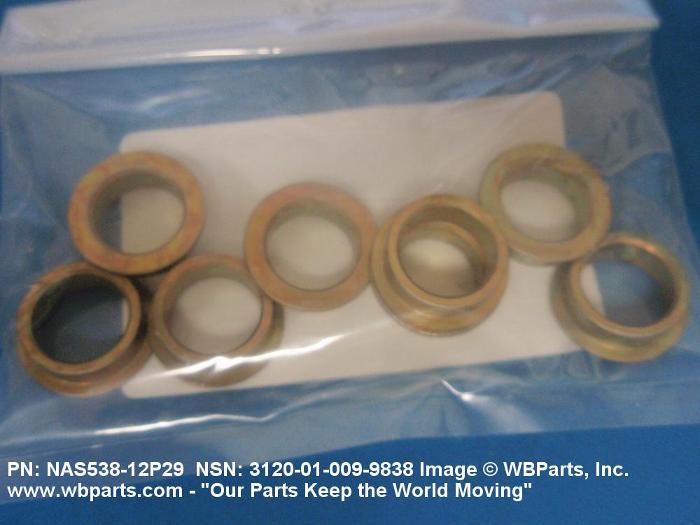

Drawings & Photos | NSN 3120-01-009-9838
Demand History | NSN 3120-01-009-9838
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS53812P29 | 2012-02-38 | 100 | US |
| NAS53812P29 | 2012-02-38 | 300 | US |
| NAS53812P29 | 2011-04-97 | 8 | United States |
| NAS53812P29 | 2011-04-96 | 8 | United States |
Cross Reference | NSN 3120-01-009-9838
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS538-12P29 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-009-9838
Technical Data | NSN 3120-01-009-9838
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.3500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.9383 INCHES MINIMUM AND 0.9393 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.7340 INCHES MINIMUM AND 0.7410 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.1150 INCHES MINIMUM AND 1.1350 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0550 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 25.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY |
| SPECIAL FEATURES | ALTERNATE METHODS OF FLANGE UNDERCUT |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0100 INCHES NOMINAL 0.0300 INCHES NOMINAL 0.0300 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
