NSN 3120-00-941-9350 S1540612868, S1540-61286-8, 00-941-9350
Product Details | SLEEVE BUSHING
3120-00-941-9350 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: S1540612868, S1540-61286-8, 3120-00-941-9350, 00-941-9350, 3120009419350, 009419350
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 DEC 1965 | 00-941-9350 | 13206 ( BUSHING, SLEEVE ) |

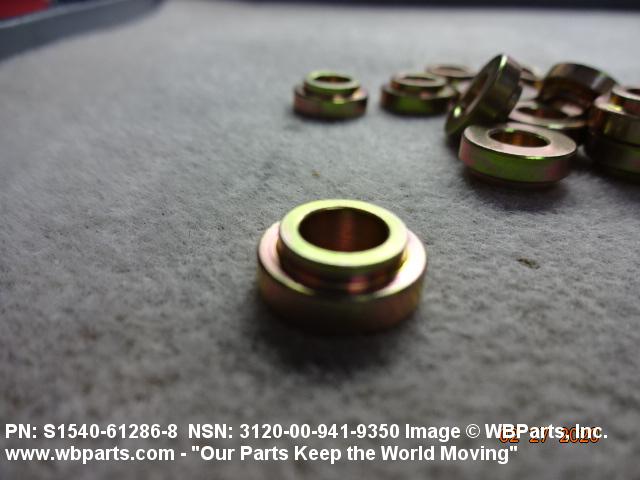

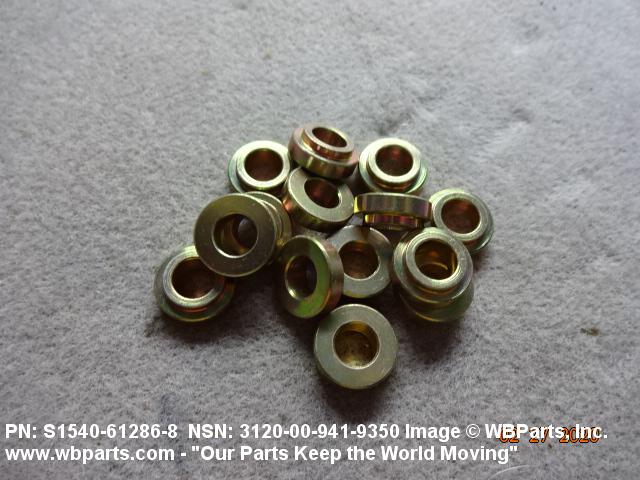

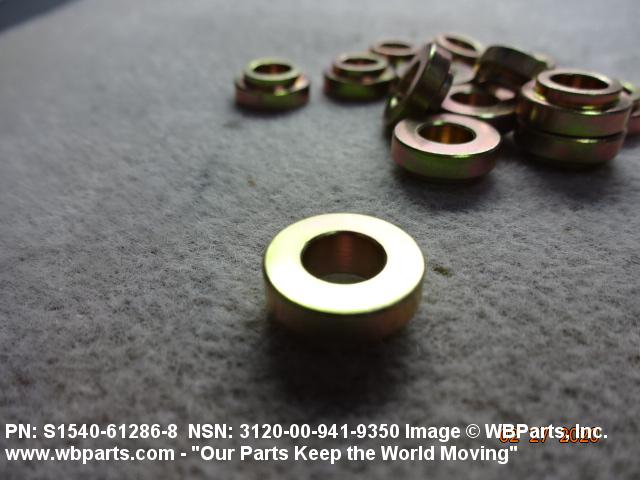

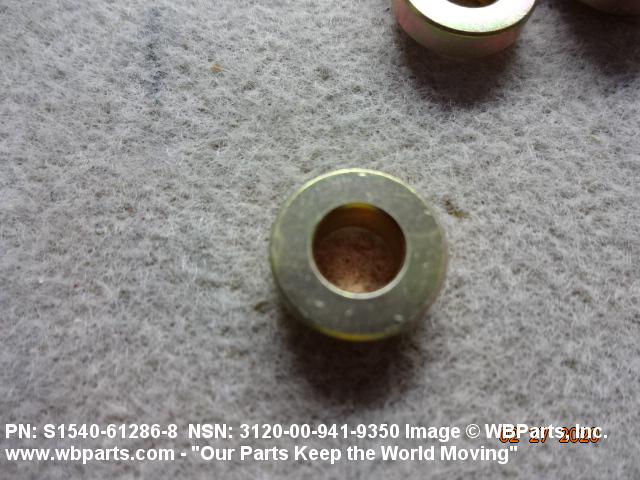

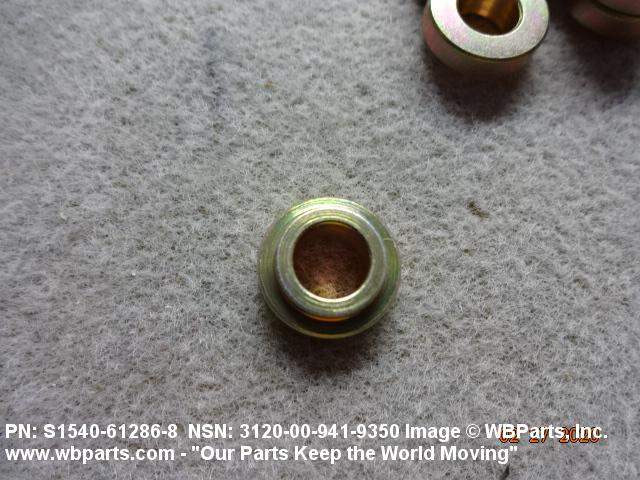

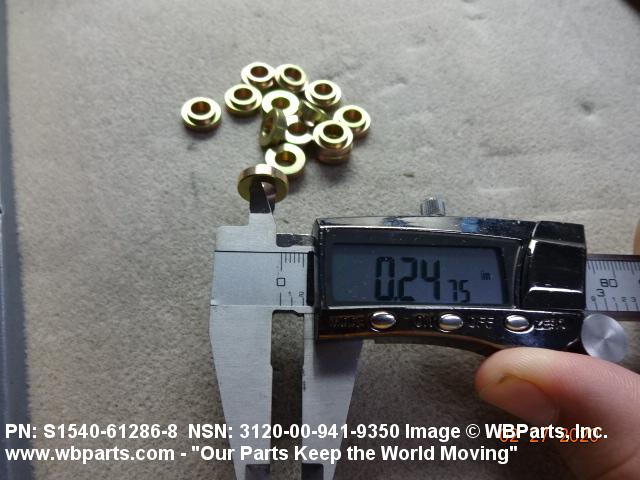

Drawings & Photos | NSN 3120-00-941-9350
Demand History | NSN 3120-00-941-9350
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-941-9350 | 2020-01-23 | 14 | India |
| 3120-00-941-9350 | 2019-12-343 | 14 | India |
| 3120-00-941-9350 | 2019-05-127 | 20 | India |
| S1540612868 | 2018-08-222 | 20 | IN |
| 3120-00-941-9350 | 2018-06-164 | 376 | DIBBS |
| 3120-00-941-9350 | 2018-06-156 | 376 | DIBBS |
| 3120-00-941-9350 | 2018-02-44 | 141 | DIBBS |
Cross Reference | NSN 3120-00-941-9350
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S1540-61286-8 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-941-9350
Related Products | NSN 3120-00-941-9350
Technical Data | NSN 3120-00-941-9350
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 4130 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

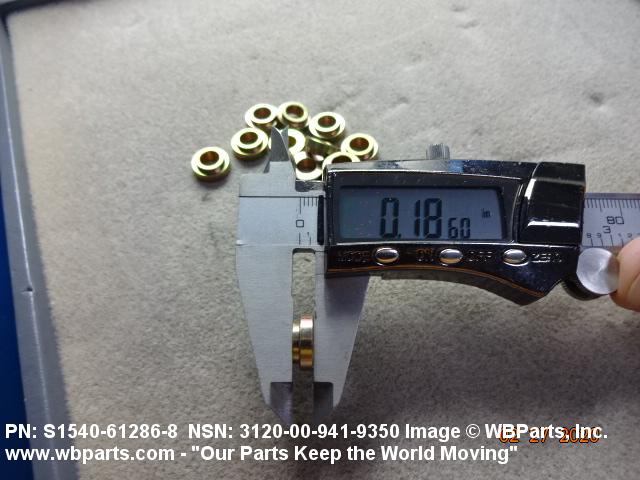

| OVERALL LENGTH | 0.1850 INCHES NOMINAL |

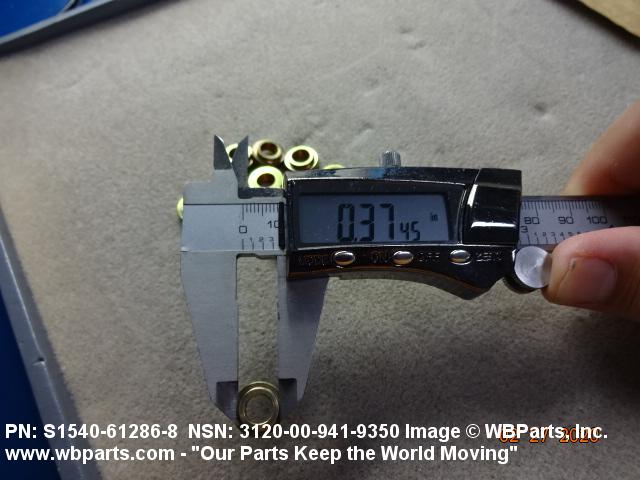

| BODY OUTSIDE DIAMETER | 0.3732 INCHES MINIMUM AND 0.3737 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM |

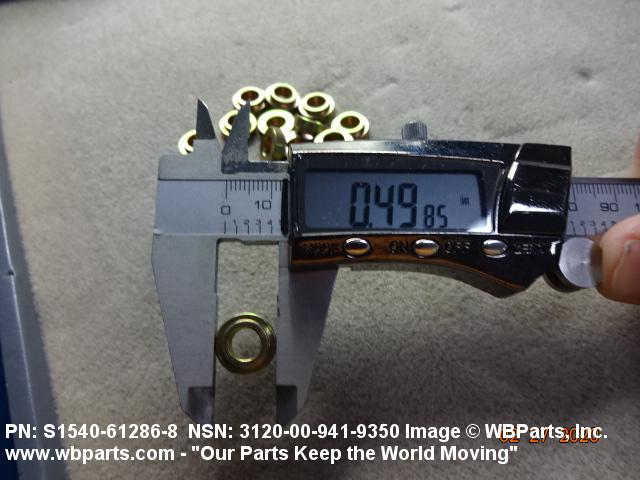

| FLANGE OUTSIDE DIAMETER | 0.4900 INCHES MINIMUM AND 0.5100 INCHES MAXIMUM |

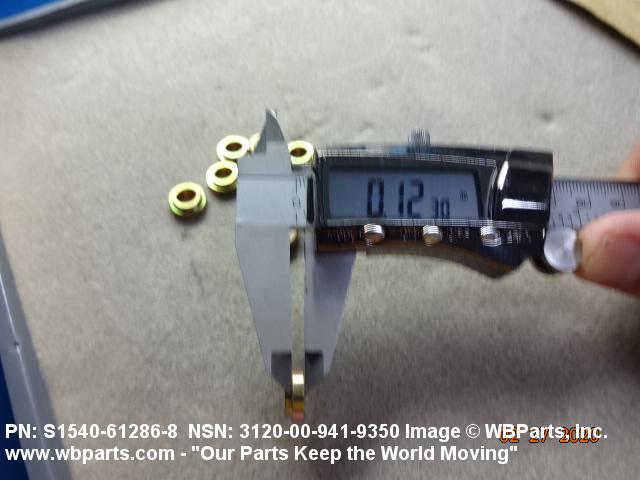

| FLANGE WIDTH | 0.1230 INCHES NOMINAL |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 100.0 MICROINCHES INTERMEDIATE LAYER |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | S1540-61286-8 |
Restrictions/Controls & Freight Information | NSN 3120-00-941-9350
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
