NSN 3120-00-891-8887 MS17795, MS1779573, MS17795-73
Product Details | SLEEVE BEARING
3120-00-891-8887 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: MS17795, MS1779573, MS17795-73, ASTM B438 , ASTMB438, B8105, B810-5, CS502BA0625, MILB5687TYPE1C0MP0SITI0NA, P50-5, QB790554, QB79055-4, 948201, A271, P505, 0000613, 3120-00-891-8887, 00-891-8887, 3120008918887, 008918887
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 JAN 1967 | 00-891-8887 | 13205 ( BEARING, SLEEVE ) |

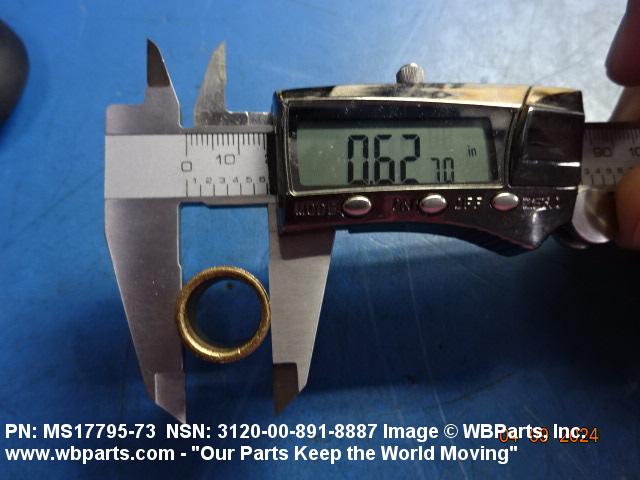

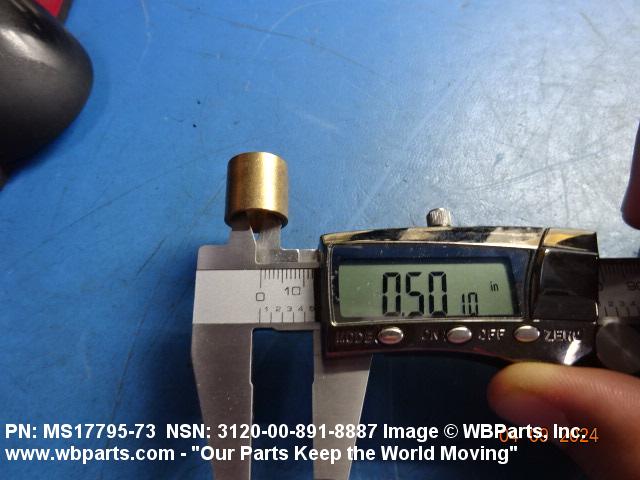

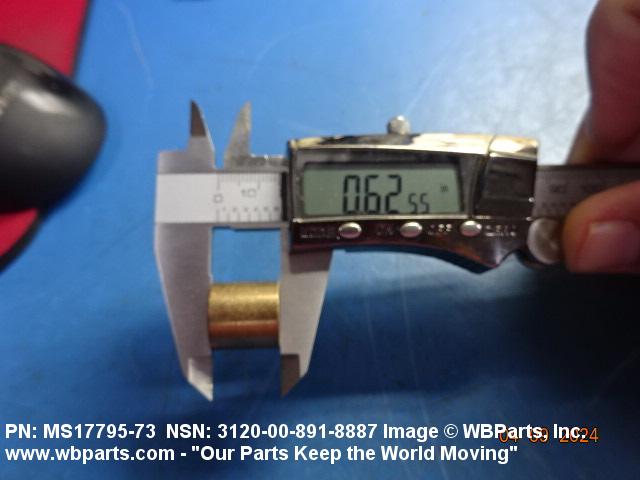

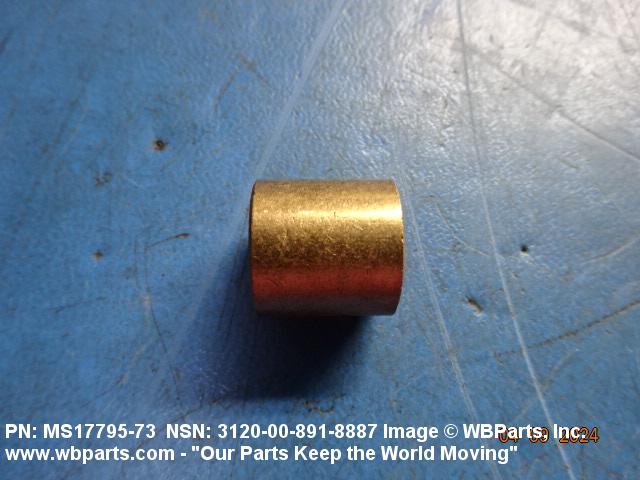

Drawings & Photos | NSN 3120-00-891-8887
Demand History | NSN 3120-00-891-8887
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-891-8887 | 2024-03-81 | 20 | us |
| 3120-00-891-8887 | 2024-03-80 | 20 | us |
| 3120-00-891-8887 | 2023-12-362 | 625 | DIBBS |
| 3120-00-891-8887 | 2017-03-60 | 582 | DIBBS |
| 3120-00-891-8887 | 2011-06-160 | 296 | DIBBS |
| 3120-00-891-8887 | 2008-08-242 | 86 | DIBBS |
| 3120-00-891-8887 | 2008-05-144 | 92 | DIBBS |
| 3120-00-891-8887 | 2007-10-274 | 102 | DIBBS |
Cross Reference | NSN 3120-00-891-8887
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0000613 | 91340 | MET-PRO CORPORATION |
| 948201 | 55323 | ACME AUTOMATIC DISPOSABLES |
| A271 | 91340 | MET-PRO CORPORATION |
| ASTM B438 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| B810-5 | 06793 | BELSHAW BROS INC |
| B810-5 | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
| CS502BA0625 | 71129 | BOUND BROOK BEARING CO |
| MILB5687TYPE1C0MP0SITI0NA | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17795 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17795-73 | 81346 | AMERICAN SOCIETY FOR TESTING AND MATERIALS |
| MS17795-73 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P50-5 | 60960 | BUNTING BEARINGS CORP KALAMAZOO PLANT |
| P50-5 | 71366 | BUNTING BEARINGS CORP |
| QB79055-4 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| QB79055-4 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-891-8887
Related Products | NSN 3120-00-891-8887
Technical Data | NSN 3120-00-891-8887
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-5687,TY 1,COMP A OR B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 70.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.6200 INCHES MINIMUM AND 0.6300 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.6270 INCHES MINIMUM AND 0.6280 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.5010 INCHES MINIMUM AND 0.5020 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| LUBRICATION MATERIAL | LUBRICATING OIL, MIL-L-15016, SYMBOL 2190 |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17795 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17795-73 |
Restrictions/Controls & Freight Information | NSN 3120-00-891-8887
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-891-8887
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
