NSN 3120-00-805-4714 NAS773037, NAS77-3-037, NAS77337

Product Details | SLEEVE BUSHING

3120-00-805-4714 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers

Part Alternates: NAS773037, NAS77-3-037, NAS77337, NAS77-3-37, 3120-00-805-4714, 00-805-4714, 3120008054714, 008054714

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1960	00-805-4714	13206 ( BUSHING, SLEEVE )

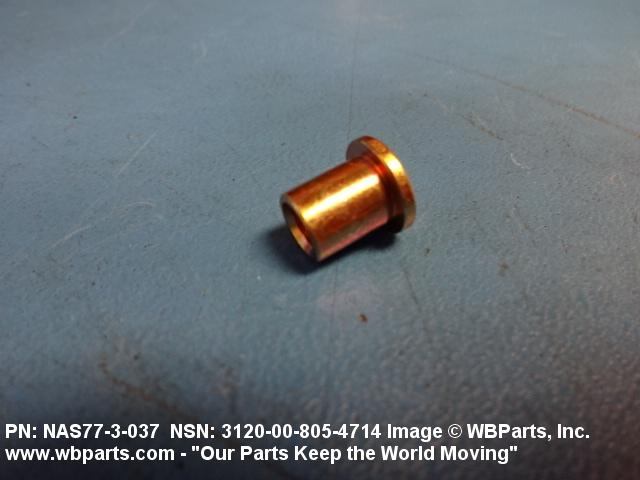

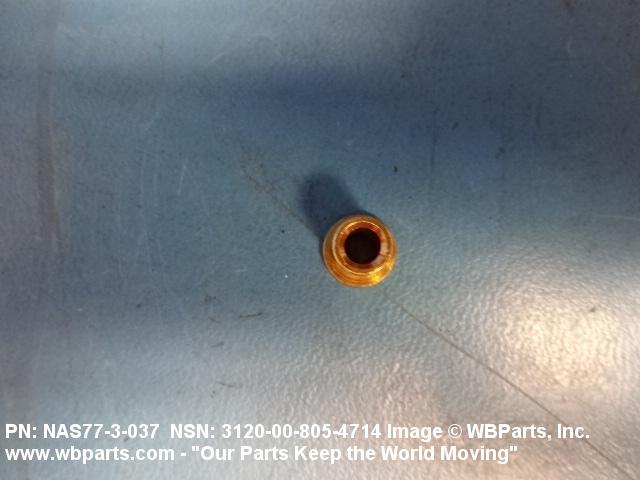

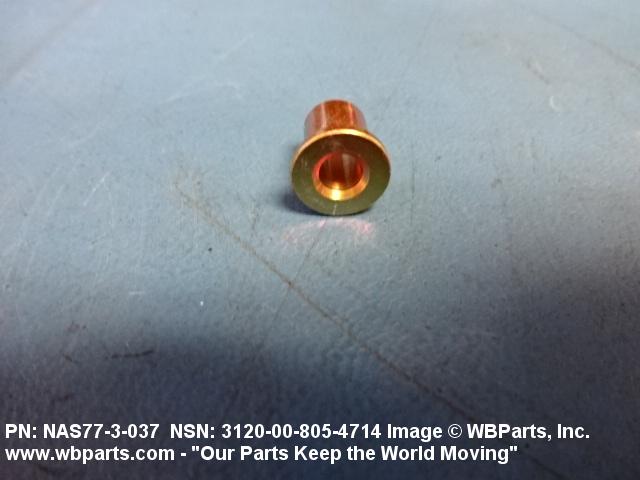

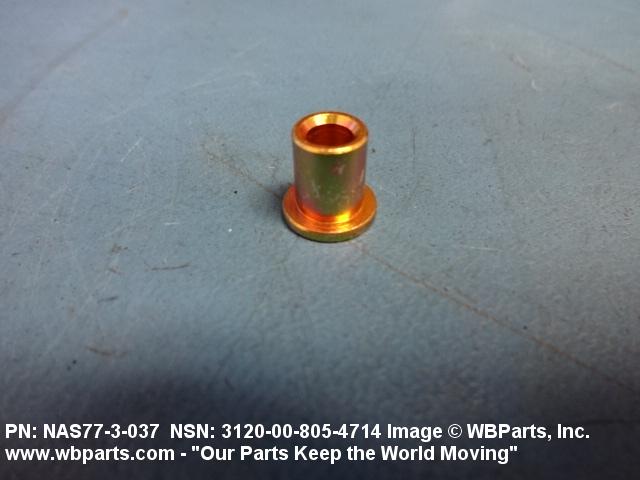

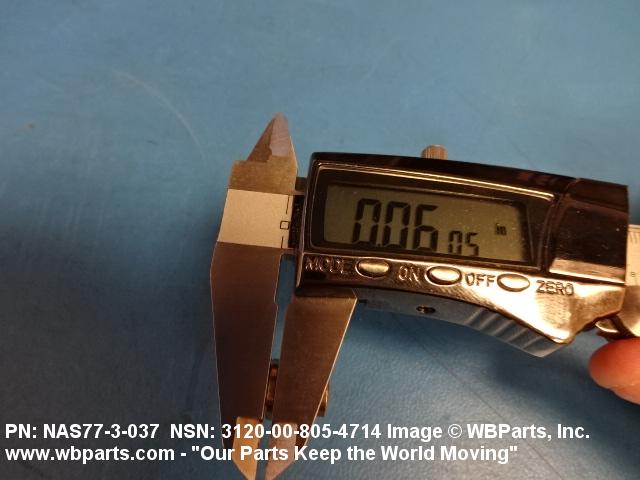

Drawings & Photos | NSN 3120-00-805-4714

Part Number	Request Date	QTY	Origin
NAS77337	2020-09-254	150	United States
NAS77337	2020-06-162	320	United States
NAS77337	2014-01-15	170	United States
NAS77337	2014-01-15	250	United States
NAS77337	2014-01-15	330	United States
NAS77337	2013-01-02	210	United States
3120-00-805-4714	2007-11-309	1132	DIBBS

Cross Reference | NSN 3120-00-805-4714

Part Number	Cage Code	Manufacturer
NAS77-3-037	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS77-3-37	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-805-4714

Compare

Related Products | NSN 3120-00-805-4714

3120-00-805-4716, 3120-00-805-5122, 3120-00-805-5393, 3120-00-805-5977, 3120-00-805-5978

Technical Data | NSN 3120-00-805-4714

Characteristic	Specifications
MATERIAL	STEEL COMP 8630 OR STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	22C SOLID

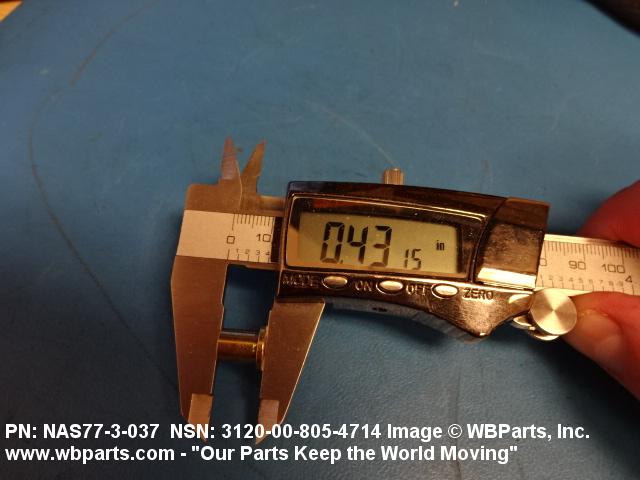

OVERALL LENGTH	0.4220 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM

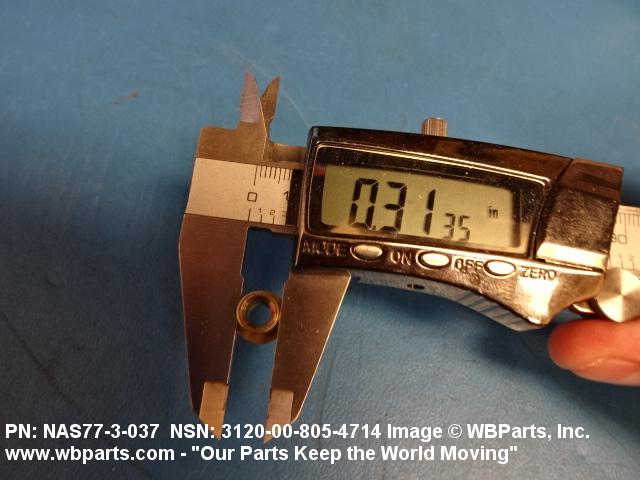

BODY OUTSIDE DIAMETER	0.3131 INCHES MINIMUM AND 0.3136 INCHES MAXIMUM

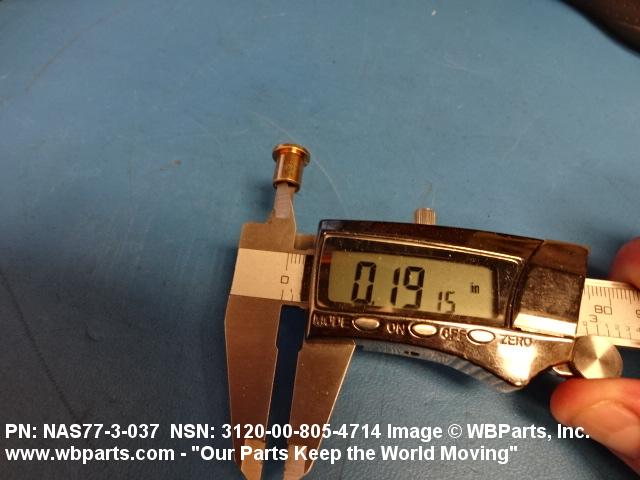

BODY INSIDE DIAMETER	0.1900 INCHES MINIMUM AND 0.1915 INCHES MAXIMUM

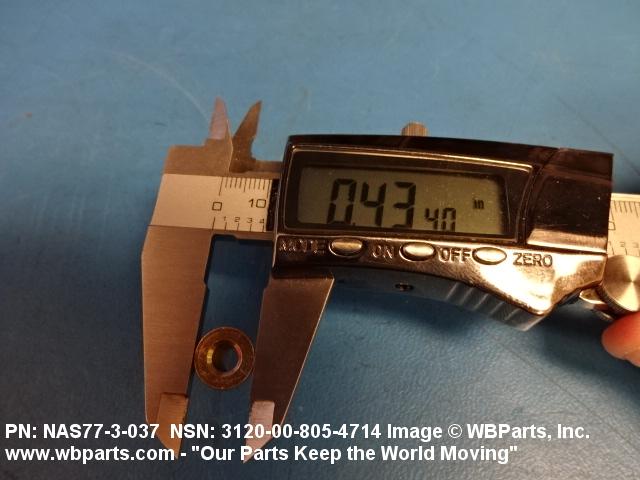

FLANGE OUTSIDE DIAMETER	0.4270 INCHES MINIMUM AND 0.4470 INCHES MAXIMUM
FLANGE WIDTH	0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM
CORNER SHAPE	SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER
SURFACE FINISH	100.0 MICROINCHES INTERMEDIATE LAYER
SPECIFICATION/STANDARD DATA	80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
(NON-CORE DATA) CHAMFER LENGTH	0.0250 INCHES MINIMUM 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM
(NON-CORE DATA) CHAMFER ANGLE	45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL
(NON-CORE DATA) UNDERCUT WIDTH	0.0620 INCHES MAXIMUM
(NON-CORE DATA) UNDERCUT DEPTH	0.0050 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 3120-00-805-4714

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-00-805-4714

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
