Product Details | SLEEVE BEARING
3120-00-796-8042 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 265-336124, 3120-00-796-8042, 00-796-8042, 3120007968042, 265336124, 007968042
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-796-8042 | 13205 ( BEARING, SLEEVE ) |
Drawings & Photos | NSN 3120-00-796-8042
Cross Reference | NSN 3120-00-796-8042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 265-336124 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-796-8042
Technical Data | NSN 3120-00-796-8042
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 642 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 2.1250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.0650 INCHES MINIMUM AND 4.0660 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 3.7520 INCHES MINIMUM AND 3.7530 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 4.3125 INCHES NOMINAL |
| FLANGE WIDTH | 0.1250 INCHES NOMINAL |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY |

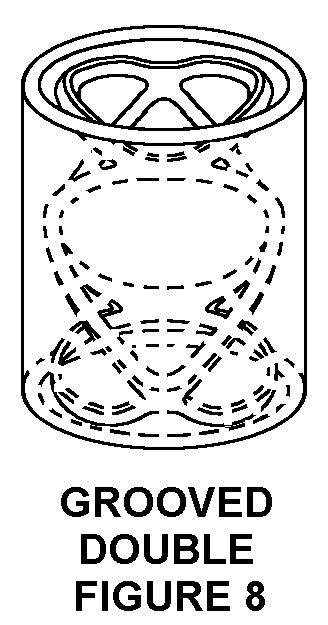

| LUBRICANT ACCOMMODATION STYLE | 73 GROOVED DOUBLE FIGURE 8 |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | 265-336124 |
