NSN 3120-00-770-8115 6767758, 7708115, 00-770-8115
Product Details | THRUST WASHER BEARING
3120-00-770-8115 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: 6767758, 7708115, 3120-00-770-8115, 00-770-8115, 3120007708115, 007708115
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-770-8115 | 13211 ( BEARING, WASHER, THRUST ) |
Drawings & Photos | NSN 3120-00-770-8115
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-770-8115
Technical Data | NSN 3120-00-770-8115
| Characteristic | Specifications |
|---|---|
| OUTSIDE DIAMETER | 7.0000 INCHES NOMINAL |
| KEYWAY RADIUS | 0.2500 INCHES NOMINAL |
| WASHER KEYWAY DEPTH | 0.1250 INCHES NOMINAL |
| KEYWAY QUANTITY | 3 |
| CROSS-SECTIONAL SHAPE STYLE | 35 RECTANGULAR |
| OVERALL THICKNESS | 0.2640 INCHES MINIMUM AND 0.2670 INCHES MAXIMUM |

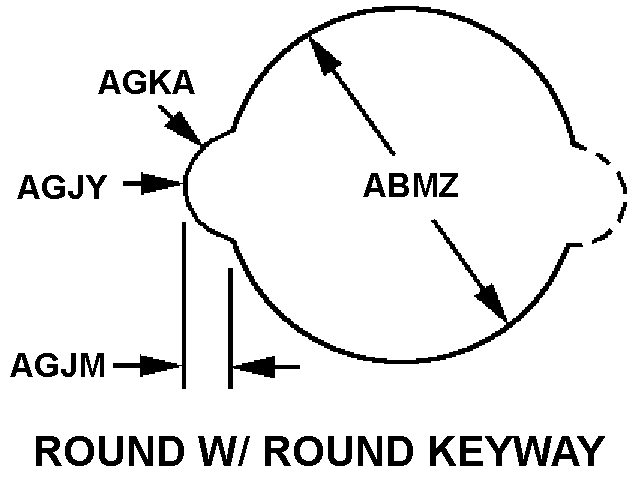

| CENTER HOLE SHAPE STYLE | 49 ROUND W/ROUND KEYWAY |
