Product Details | SPHERICAL PLAIN BEARING
3120-00-765-9812 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 509E205AY1, 3120-00-765-9812, 00-765-9812, 3120007659812, 007659812
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-765-9812 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

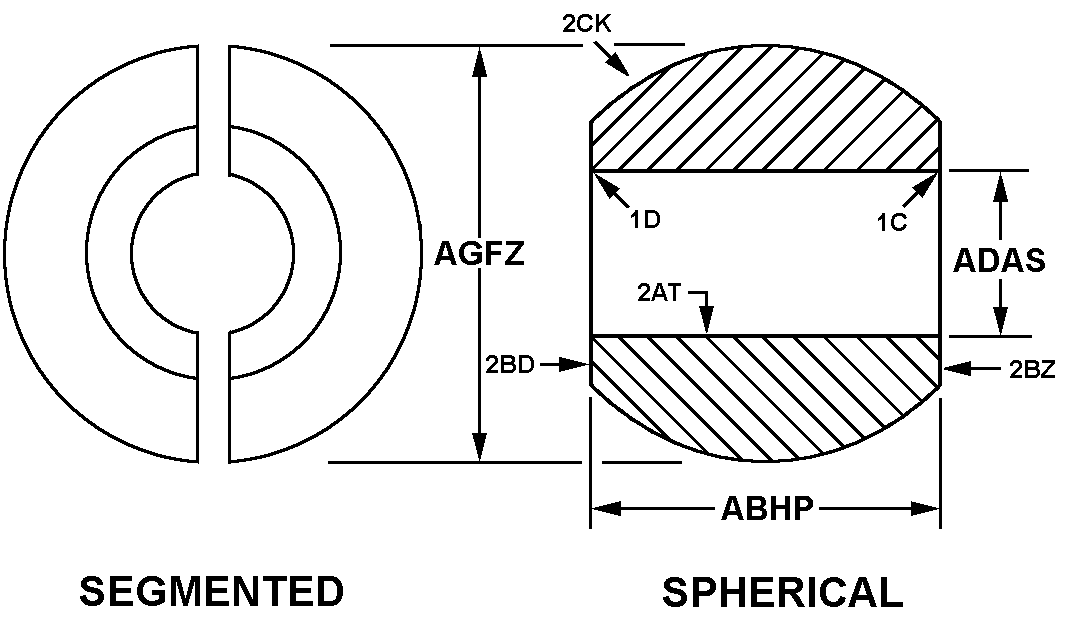

Drawings & Photos | NSN 3120-00-765-9812
Demand History | NSN 3120-00-765-9812
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-765-9812 | 2013-03-64 | 1 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-765-9812
Related Products | NSN 3120-00-765-9812
Technical Data | NSN 3120-00-765-9812
| Characteristic | Specifications |
|---|---|
| MATERIAL | TIN ALLOY INNER LAYER STEEL OUTER LAYER |
| STYLE DESIGNATOR | 15B SEGMENTED |
| OVERALL LENGTH | 3.0000 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 3.5050 INCHES MINIMUM AND 3.5060 INCHES MAXIMUM |
| SPHERICAL BODY DIAMETER | 6.2495 INCHES MINIMUM AND 6.2500 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 250.0 MICROINCHES LEFT END SURFACE 250.0 MICROINCHES RIGHT END SURFACE 63.0 MICROINCHES SPHERICAL SURFACE |
| MANUFACTURERS CODE | 03502 |
| DESIGN CONTROL REFERENCE | 509E205AY1 |
Restrictions/Controls & Freight Information | NSN 3120-00-765-9812
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
