Product Details | THRUST WASHER BEARING

3120-00-764-6795 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.

Part Alternates: 53369D, 3120-00-764-6795, 00-764-6795, 3120007646795, 007646795

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 08 MAR 1968 00-764-6795

Drawings & Photos | NSN 3120-00-764-6795


Cross Reference | NSN 3120-00-764-6795

Part Number Cage Code Manufacturer
53369D 0SAT8 KOMATSU AMERICA CORP.
53369D 29510 KOMATSU AMERICAN INTL CO
53369D 31007 NAVISTAR INTL CORP
53369D 92679 NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-764-6795

Technical Data | NSN 3120-00-764-6795

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
HARDNESS RATING 60.0 ROCKWELL B MINIMUM OVERALL

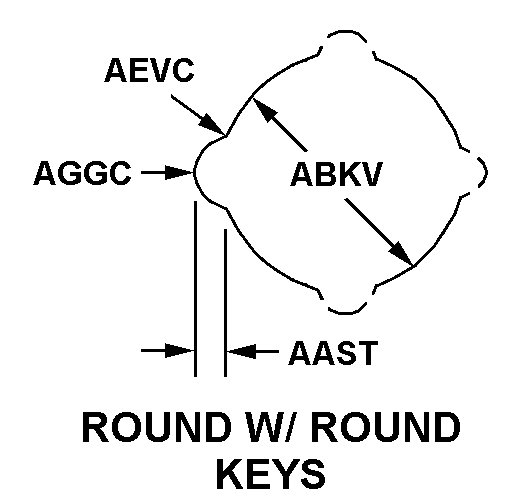

STYLE DESIGNATOR 31 ROUND W/ROUND KEYS
KEY LENGTH 0.3110 INCHES NOMINAL
OUTSIDE DIAMETER 2.7187 INCHES NOMINAL
KEY RADIUS 0.2180 INCHES NOMINAL
KEY QUANTITY 2
CORNER SHAPE SQUARE ALL CORNERS
CROSS-SECTIONAL SHAPE STYLE 35 RECTANGULAR
OVERALL THICKNESS 0.0830 INCHES MINIMUM AND 0.0870 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE 42 ROUND
DIAMETER 1.9375 INCHES NOMINAL
SURFACE CONDITION GROUND
SPECIAL FEATURES SAME AS STYLE 31 EXCEPT AS MODIFIED,FLAT BEARING SURFACE BETWEEN KEYS 2.6250 IN.OD,0.062 IN.RADIUS AT BOTTOM OF KEY IN LIEU OF CHAMFER
MANUFACTURERS CODE 29510
DESIGN CONTROL REFERENCE 53369D
