NSN 3120-00-761-4185 NAS77, NAS7712048, NAS77-12-048

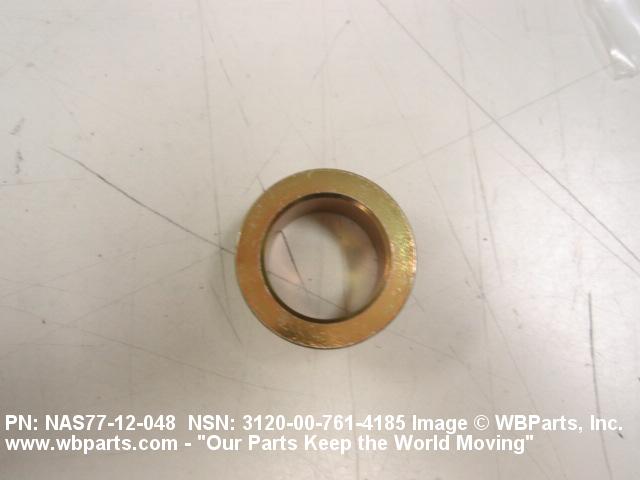

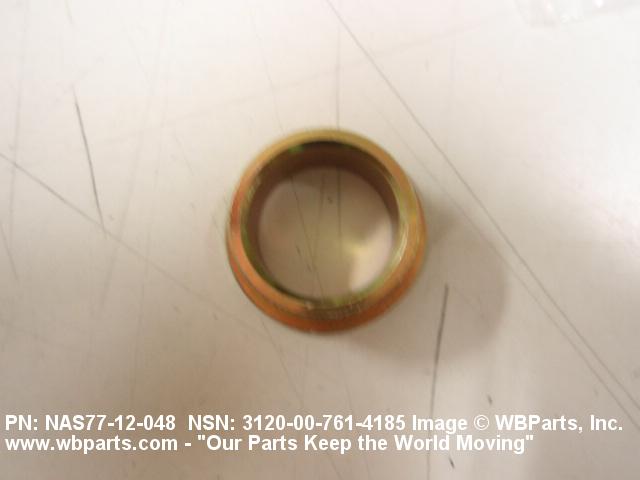

Product Details | SLEEVE BUSHING
3120-00-761-4185 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77, NAS7712048, NAS77-12-048, NAS771248, NAS77-12-48, 3120-00-761-4185, 00-761-4185, 3120007614185, 007614185
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 FEB 1967 | 00-761-4185 | 13206 ( BUSHING, SLEEVE ) |
Drawings & Photos | NSN 3120-00-761-4185
Demand History | NSN 3120-00-761-4185
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS7712048 | 2019-10-304 | 3 | United States |
| 3120-00-761-4185 | 2013-11-309 | 182 | DIBBS |
| 3120-00-761-4185 | 2010-05-141 | 10 | United States |
| 3120-00-761-4185 | 2009-03-70 | 2 | US |
Cross Reference | NSN 3120-00-761-4185
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-761-4185
Related Products | NSN 3120-00-761-4185
Technical Data | NSN 3120-00-761-4185
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 0.5320 INCHES MINIMUM AND 0.5470 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.9383 INCHES MINIMUM AND 0.9393 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.7500 INCHES MINIMUM AND 0.7515 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.1150 INCHES MINIMUM AND 1.1350 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 100.0 MICROINCHES INTERMEDIATE LAYER |
| SPECIFICATION/STANDARD DATA | 80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0620 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MAXIMUM |
