NSN 3120-00-720-2955 NAS77, NAS77A4013P, NAS77A4-013P

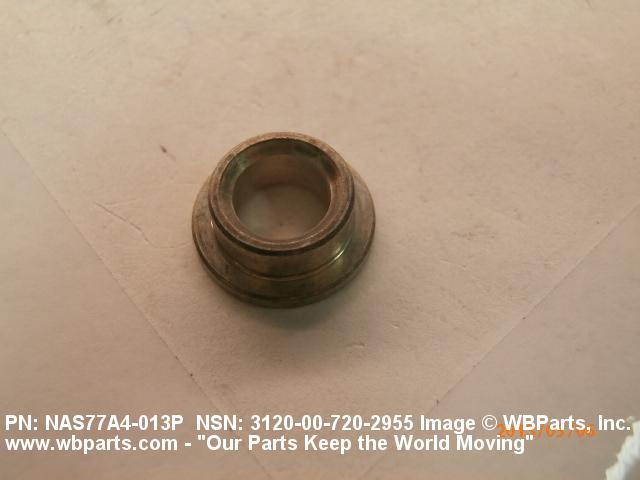

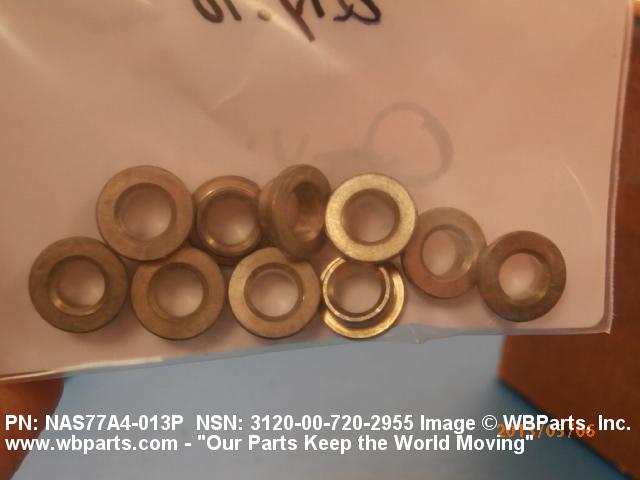

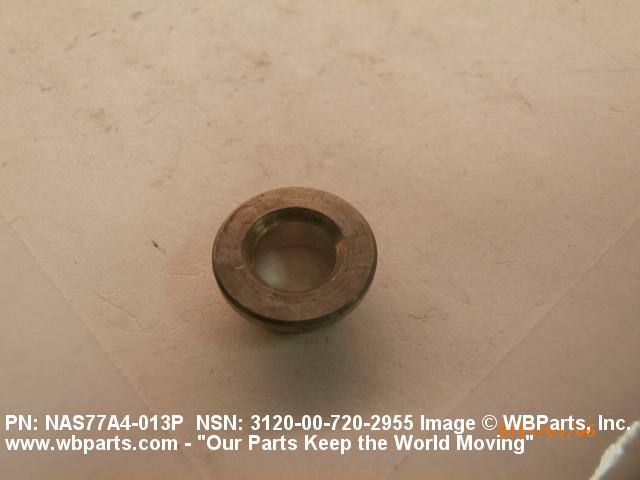

Product Details | SLEEVE BUSHING
3120-00-720-2955 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77, NAS77A4013P, NAS77A4-013P, NAS77A413P, NAS77A4-13P, 3120-00-720-2955, 00-720-2955, 3120007202955, 007202955
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-720-2955 | 13206 ( BUSHING, SLEEVE ) |

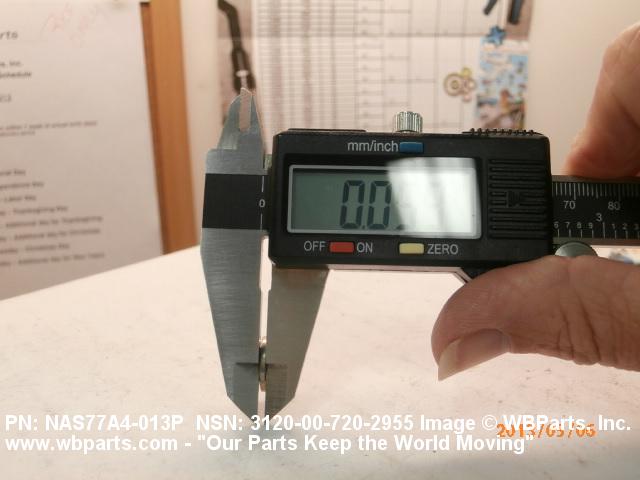

Drawings & Photos | NSN 3120-00-720-2955
Demand History | NSN 3120-00-720-2955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS77A4013P | 2013-04-119 | 5 | us |
| NAS77A4013P | 2013-04-119 | 100 | us |
Cross Reference | NSN 3120-00-720-2955
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-720-2955
Related Products | NSN 3120-00-720-2955
Technical Data | NSN 3120-00-720-2955
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 642 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-465 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

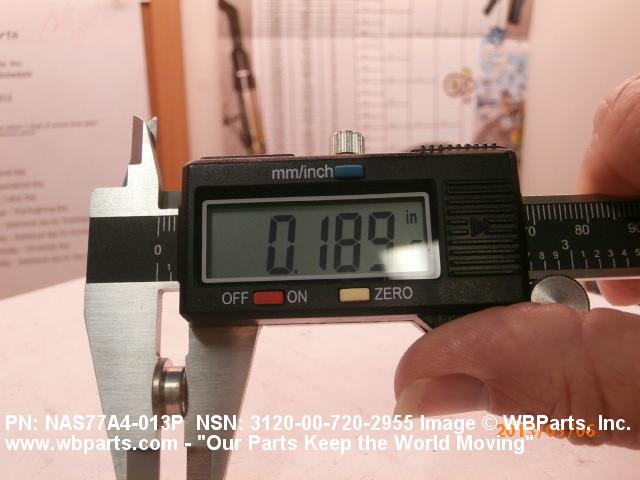

| OVERALL LENGTH | 0.1870 INCHES MINIMUM AND 0.1970 INCHES MAXIMUM |

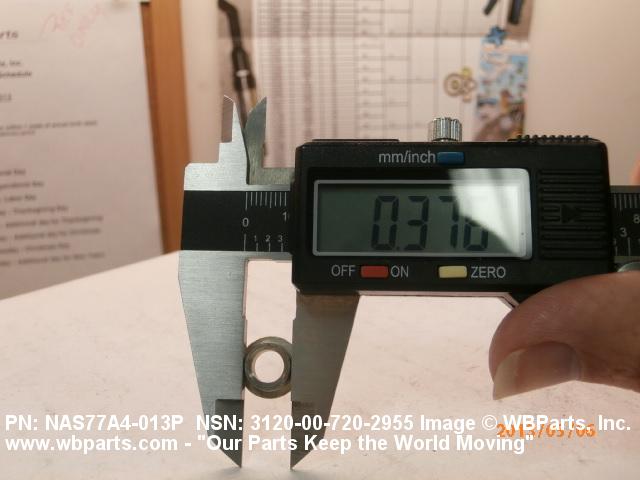

| BODY OUTSIDE DIAMETER | 0.3756 INCHES MINIMUM AND 0.3761 INCHES MAXIMUM |

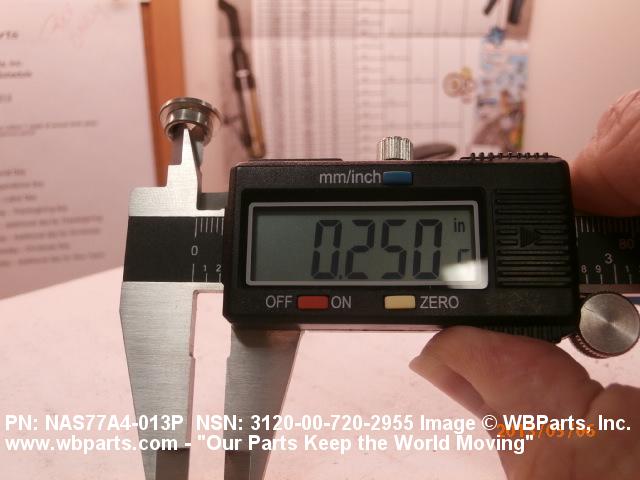

| BODY INSIDE DIAMETER | 0.2500 INCHES MINIMUM AND 0.2515 INCHES MAXIMUM |

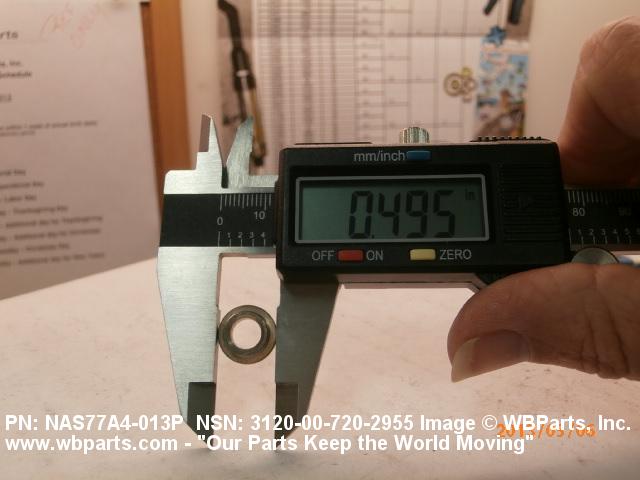

| FLANGE OUTSIDE DIAMETER | 0.4900 INCHES MINIMUM AND 0.5100 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 100.0 MICROINCHES INTERMEDIATE LAYER |
| SPECIAL FEATURES | ID AND OD TO BE PARALLEL AND CONCENTRIC WITHIN 0.0030 TIR |
| SPECIFICATION/STANDARD DATA | 80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0150 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-00-720-2955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
