NSN 3120-00-717-6038 QAR8350902, 62.72.020, 6272020

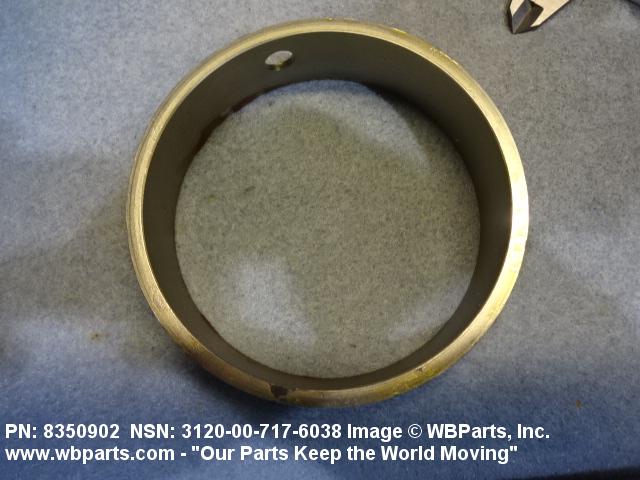

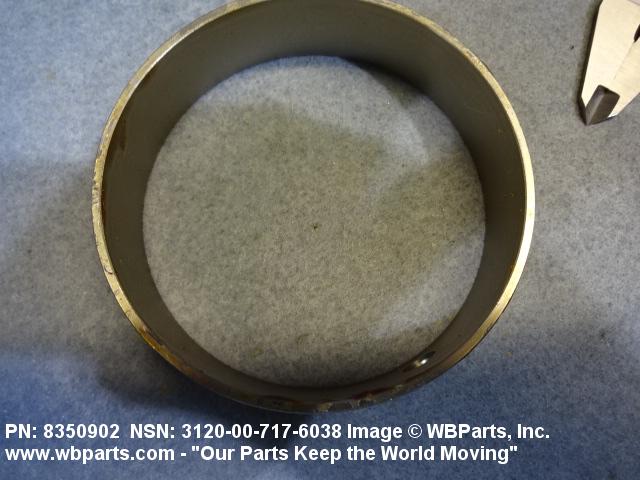

Product Details | SLEEVE BEARING
3120-00-717-6038 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: QAR8350902, 62.72.020, 6272020, 8350902, 8355700, 3120-00-717-6038, 00-717-6038, 3120007176038, 007176038
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 FEB 1968 | 00-717-6038 | 13205 ( BEARING, SLEEVE ) |

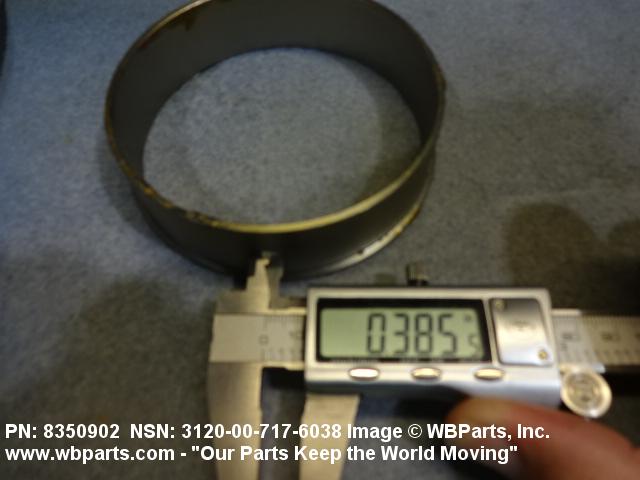

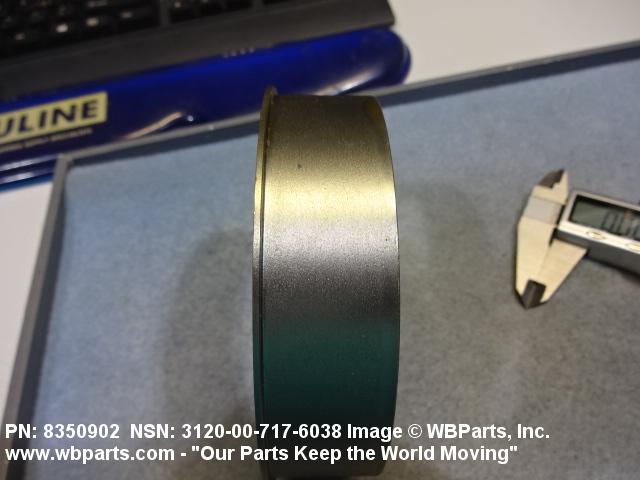

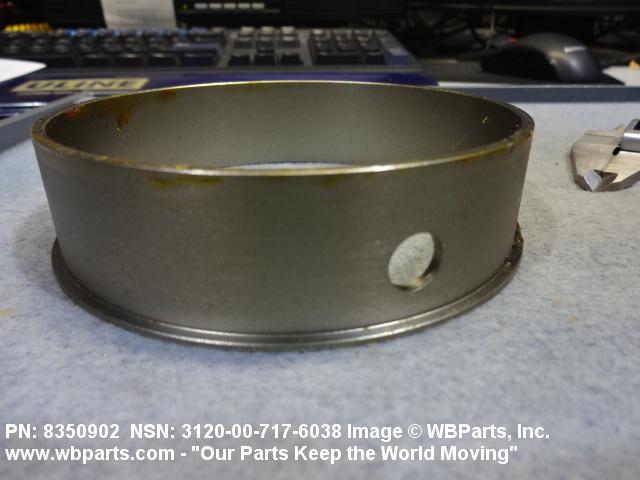

Drawings & Photos | NSN 3120-00-717-6038
Demand History | NSN 3120-00-717-6038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-717-6038 | 2019-01-28 | 132 | United States |
| 3120-00-717-6038 | 2018-06-157 | 132 | DIBBS |
| 3120-00-717-6038 | 2018-04-108 | 137 | DIBBS |
| 3120-00-717-6038 | 2016-04-98 | 98 | DIBBS |
| 3120-00-717-6038 | 2014-05-124 | 60 | DIBBS |
| 3120-00-717-6038 | 2013-08-213 | 104 | DIBBS |
| 3120-00-717-6038 | 2012-10-283 | 8 | DIBBS |
| 3120-00-717-6038 | 2009-05-128 | 5 | DIBBS |
Cross Reference | NSN 3120-00-717-6038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3120007176038 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 62.72.020 | 0124B | SAPA OPERACIONES SL |
| 8350902 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8355700 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| QAR8350902 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-717-6038
Related Products | NSN 3120-00-717-6038
Technical Data | NSN 3120-00-717-6038

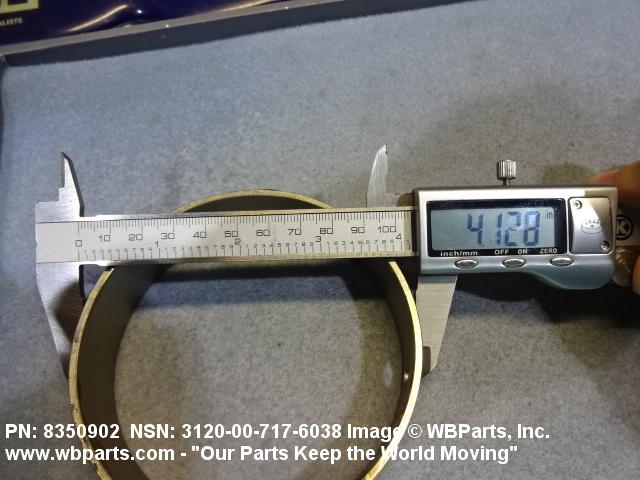

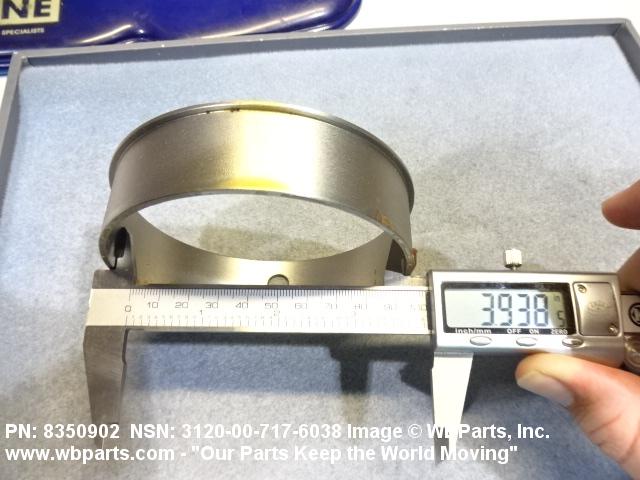

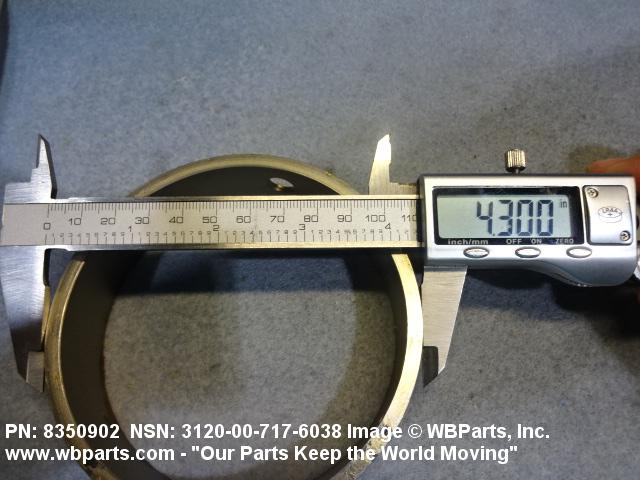

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1141 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-T-830 FED SPEC ALL MATERIAL RESPONSES OR QQ-T-825 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | 22C SOLID |
| OVERALL LENGTH | 1.0770 INCHES MINIMUM AND 1.0800 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 4.1254 INCHES MINIMUM AND 4.1264 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 3.9388 INCHES MINIMUM AND 3.9390 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 4.3000 INCHES NOMINAL |

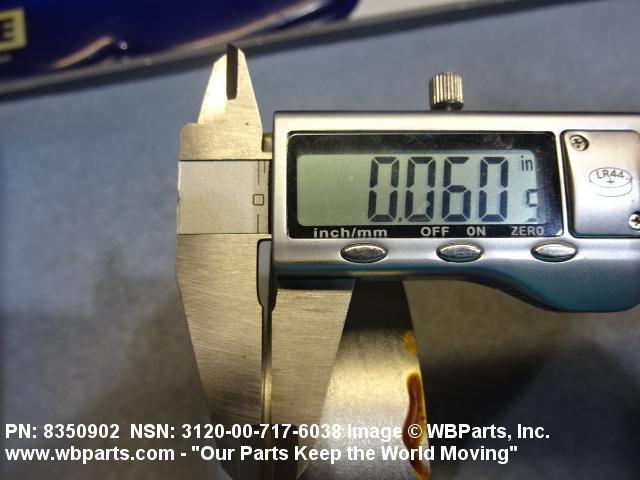

| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
