NSN 3120-00-700-1599 S616520215, S6165-20215, 00-700-1599

Product Details | SLEEVE BEARING

3120-00-700-1599 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: S616520215, S6165-20215, 3120-00-700-1599, 00-700-1599, 3120007001599, 007001599

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-700-1599	13205 ( BEARING, SLEEVE )

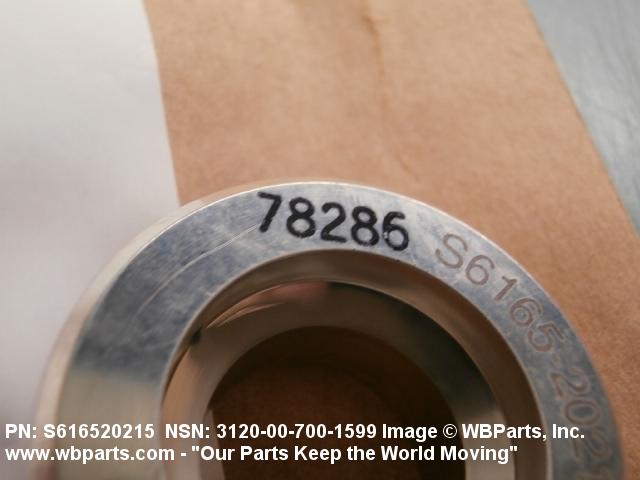

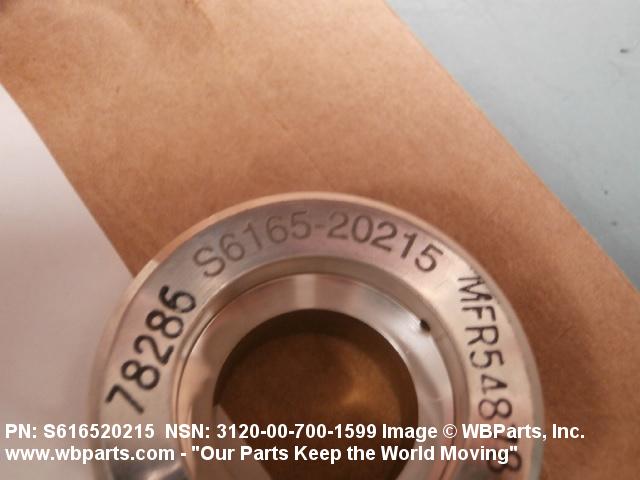

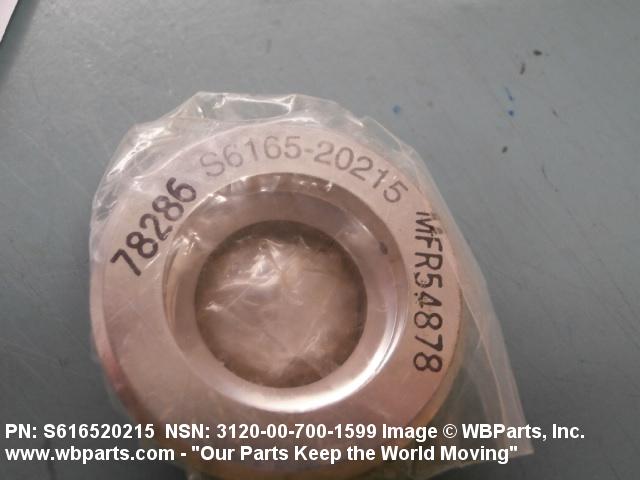

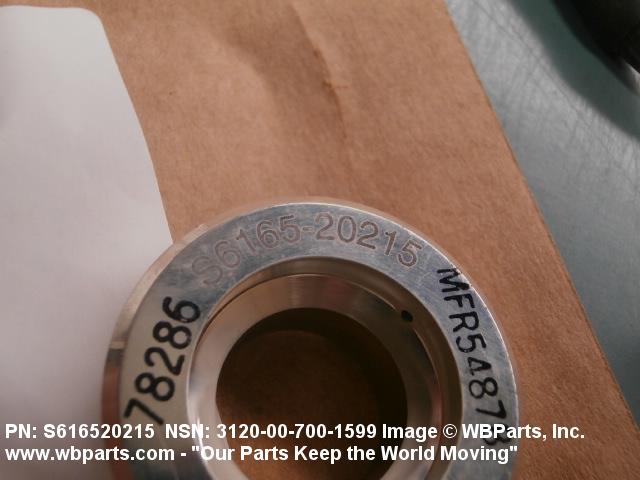

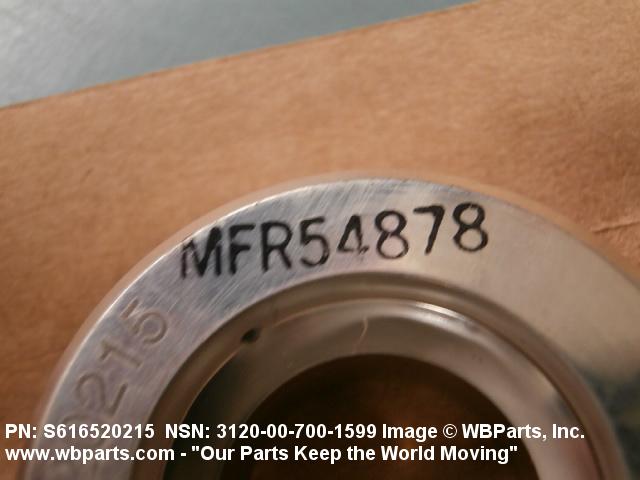

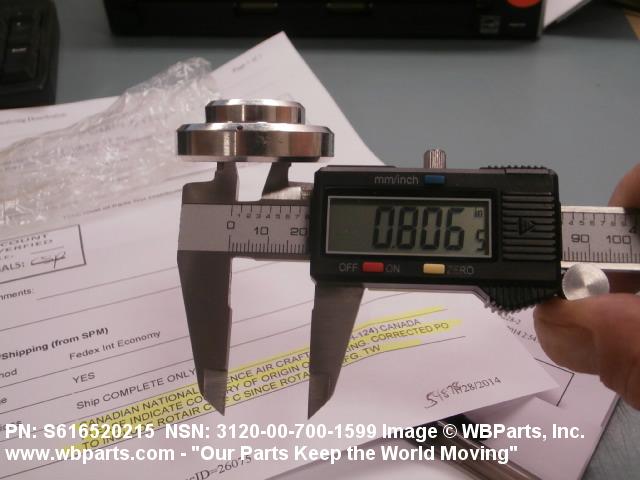

Drawings & Photos | NSN 3120-00-700-1599

Part Number	Request Date	QTY	Origin
3120-00-700-1599	2018-06-169	5	DIBBS
3120-00-700-1599	2014-11-309	15	DIBBS
3120-00-700-1599	2014-10-301	15	DIBBS
3120-00-700-1599	2014-10-274	4	DIBBS
3120-00-700-1599	2014-09-266	4	DIBBS
3120-00-700-1599	2014-09-252	15	DIBBS
S616520215	2014-01-13	1	Canada
S616520215	2013-12-345	3	Canada
S616520215	2013-11-330	1	Canada
3120-00-700-1599	2009-06-152	5	DIBBS
3120-00-700-1599	2008-12-340	5	DIBBS
3120-00-700-1599	2008-03-71	5	DIBBS

Cross Reference | NSN 3120-00-700-1599

Part Number	Cage Code	Manufacturer
S6165-20215	1CJ46	A D A MACHINE CORP DBA HYDRO MACHINE SPECIALISTS
S6165-20215	60223	E O MANUFACTURING COMPANY, INC.
S6165-20215	78286	SIKORSKY AIRCRAFT CORPORATION
S6165-20215	K0058	AGUSTAWESTLAND LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-700-1599

Compare

Related Products | NSN 3120-00-700-1599

3120-00-700-1725, 3120-00-700-1920, 3120-00-700-1926, 3120-00-700-1944, 3120-00-700-1987

Technical Data | NSN 3120-00-700-1599

Characteristic	Specifications
MATERIAL	COPPER ALLOY 630 OVERALL
STYLE DESIGNATOR	22C SOLID

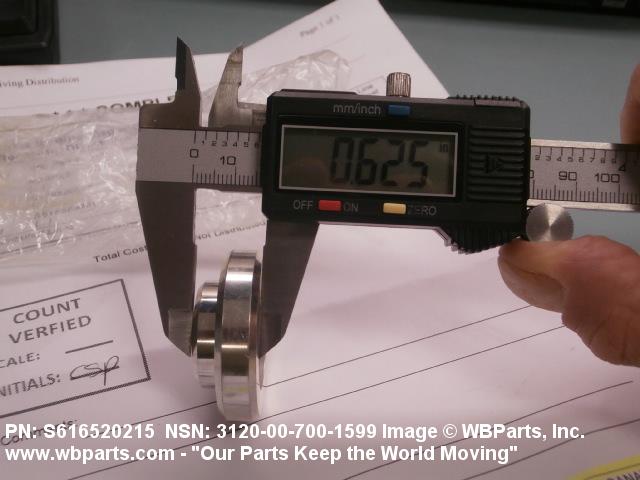

OVERALL LENGTH	0.6250 INCHES NOMINAL

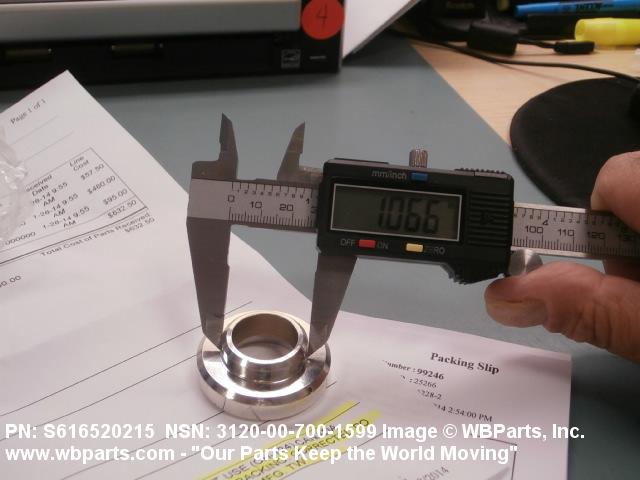

BODY OUTSIDE DIAMETER	1.0620 INCHES MINIMUM AND 1.0670 INCHES MAXIMUM
BODY INSIDE DIAMETER	0.8100 INCHES MINIMUM AND 0.8110 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER	1.6840 INCHES MINIMUM AND 1.6860 INCHES MAXIMUM

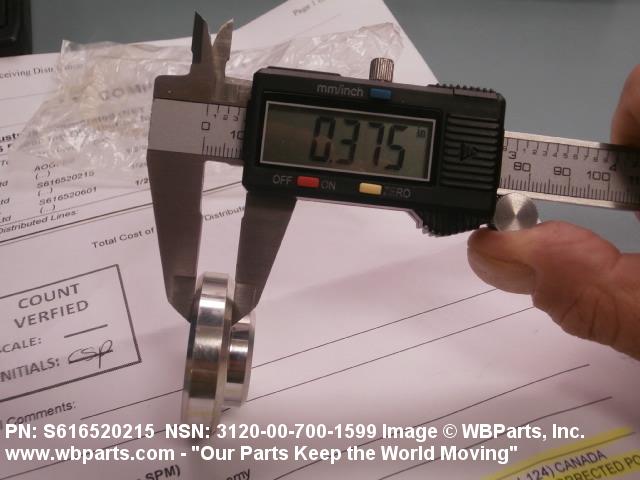

FLANGE WIDTH	0.3750 INCHES NOMINAL
