NSN 3120-00-541-9349 1596631P1, 00-541-9349, 005419349
Product Details | SLEEVE BEARING
3120-00-541-9349 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 1596631P1, 3120-00-541-9349, 00-541-9349, 3120005419349, 005419349
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 02 OCT 1974 | 00-541-9349 | 13205 ( BEARING, SLEEVE ) |

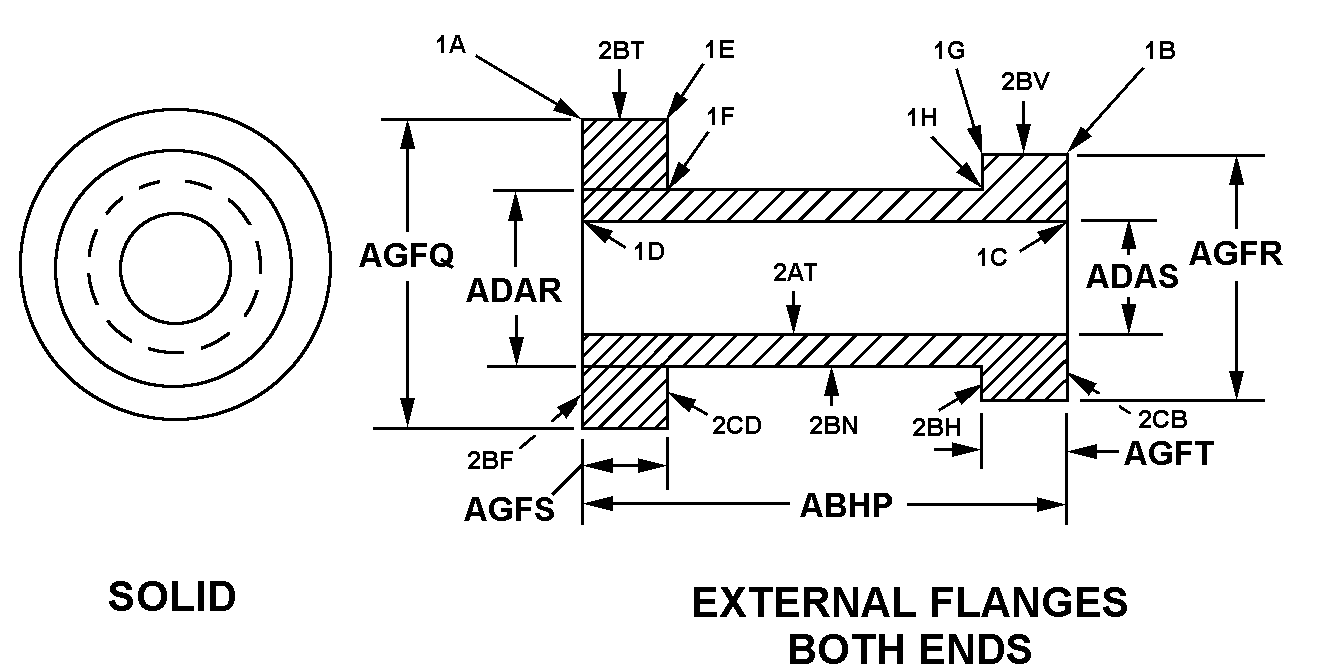

Drawings & Photos | NSN 3120-00-541-9349
Demand History | NSN 3120-00-541-9349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-541-9349 | 2017-10-289 | 5 | DIBBS |
Cross Reference | NSN 3120-00-541-9349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1596631P1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-541-9349
Technical Data | NSN 3120-00-541-9349
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE OR PLASTIC POLYHEXAMETHYLENE ADIPAMIDE OR PLASTIC POLYCAPROLACTAM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-410 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 18C-1 SOLID INTERNAL FLANGE ONE END |
| OVERALL LENGTH | 0.7500 INCHES MINIMUM AND 0.8100 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 1.7100 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.3770 INCHES MINIMUM AND 1.3780 INCHES MAXIMUM |
| LEFT INTERNAL FLANGE HOLE DIAMETER | 1.2300 INCHES MINIMUM AND 1.2700 INCHES MAXIMUM |
| LEFT INTERNAL FLANGE WIDTH | 0.1500 INCHES MINIMUM AND 0.2100 INCHES MAXIMUM |
| LEFT FLANGE OUTSIDE DIAMETER | 2.4700 INCHES MINIMUM AND 2.5300 INCHES MAXIMUM |
| RIGHT FLANGE OUTSIDE DIAMETER | 2.4700 INCHES MINIMUM AND 2.5300 INCHES MAXIMUM |
| LEFT FLANGE WIDTH | 0.1500 INCHES MINIMUM AND 0.2100 INCHES MAXIMUM |
| RIGHT FLANGE WIDTH | 0.2900 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| LUBRICANT ACCOMMODATION STYLE | 69 GROOVED CIRCULAR |
| SURFACE GROOVE LOCATION AND QUANTITY | 1 INTERNAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1596631P1 |
Restrictions/Controls & Freight Information | NSN 3120-00-541-9349
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-541-9349
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
