NSN 3120-00-479-9204 4203941, 420394-1, 00-479-9204
Product Details | SLEEVE BEARING
3120-00-479-9204 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 4203941, 420394-1, 3120-00-479-9204, 00-479-9204, 3120004799204, 004799204
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 MAR 1972 | 00-479-9204 | 13205 ( BEARING, SLEEVE ) |

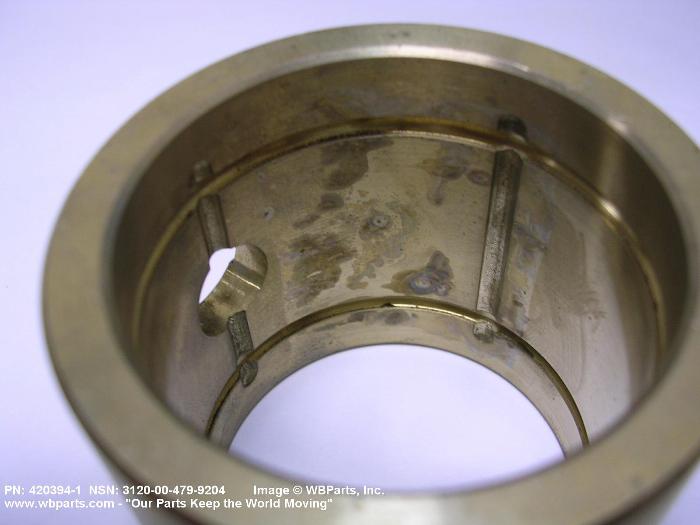

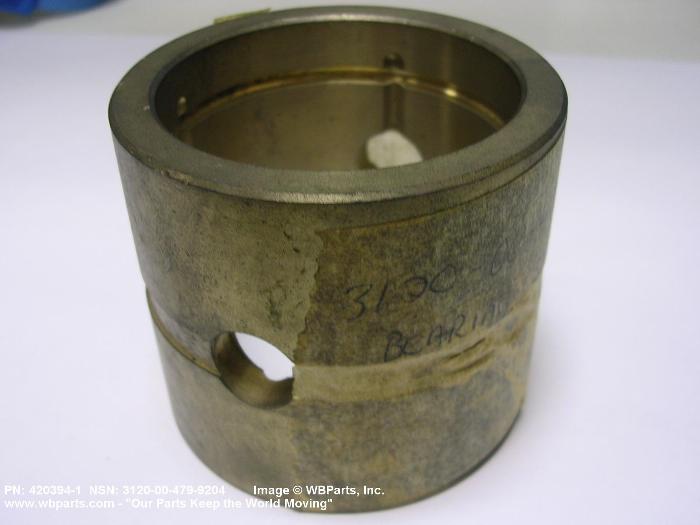

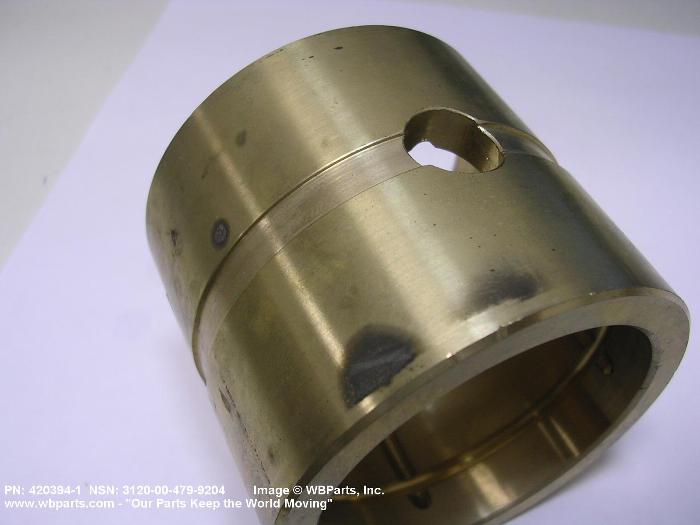

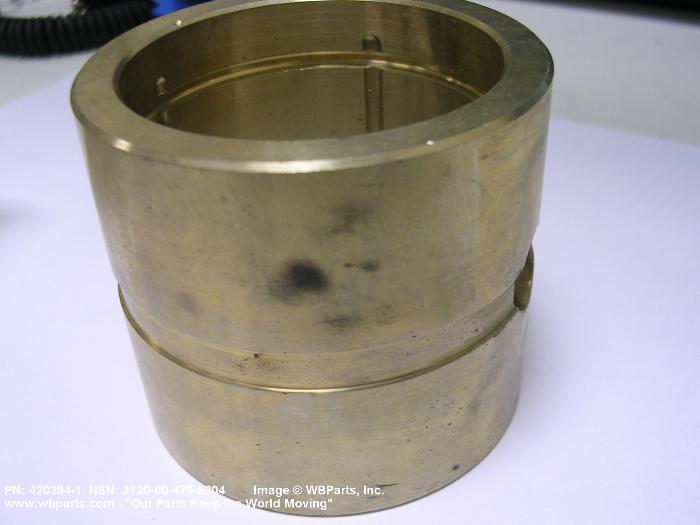

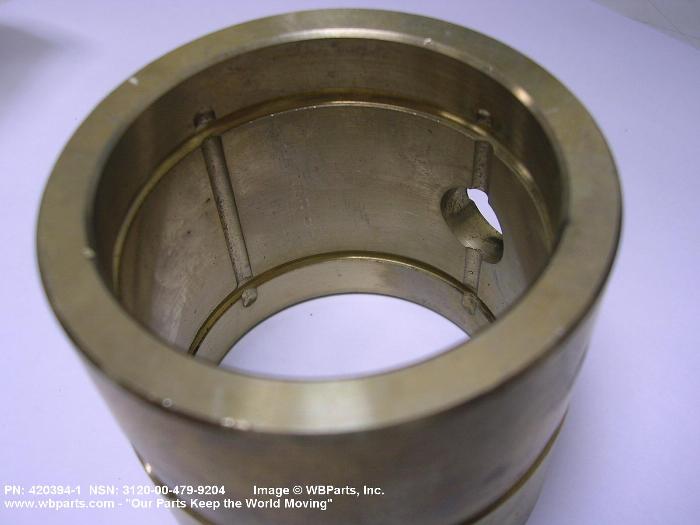

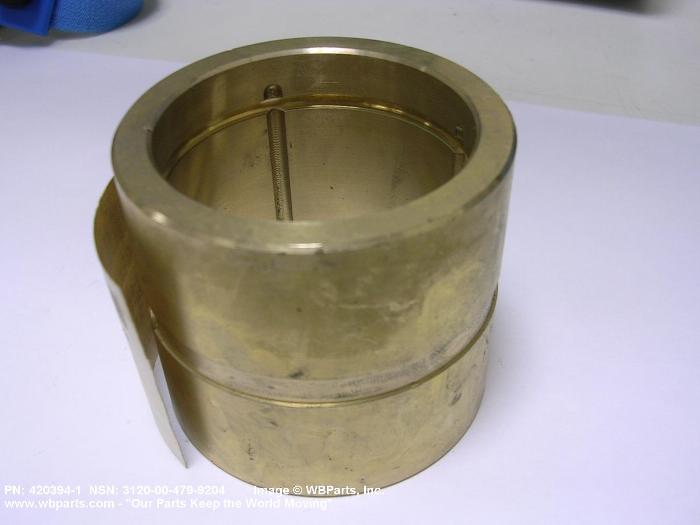

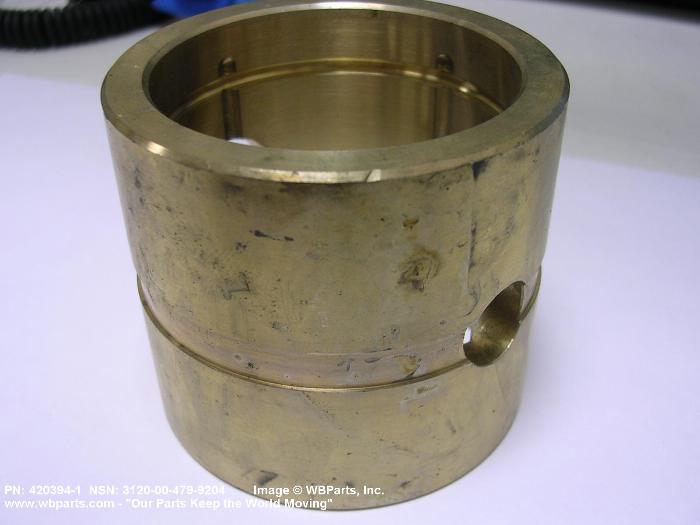

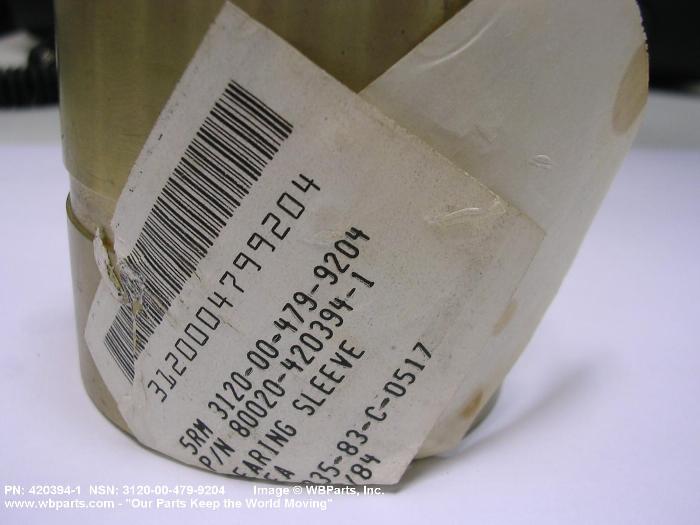

Drawings & Photos | NSN 3120-00-479-9204
Demand History | NSN 3120-00-479-9204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-479-9204 | 2024-11-316 | 72 | DIBBS |
| 3120-00-479-9204 | 2024-07-198 | 74 | DIBBS |
| 3120-00-479-9204 | 2022-10-278 | 77 | DIBBS |
| 3120-00-479-9204 | 2016-07-197 | 50 | DIBBS |
| 3120-00-479-9204 | 2016-07-189 | 50 | DIBBS |
| 3120-00-479-9204 | 2016-07-188 | 16 | DIBBS |
| 3120-00-479-9204 | 2016-06-180 | 16 | DIBBS |
| 3120-00-479-9204 | 2016-03-77 | 33 | DIBBS |
| 3120-00-479-9204 | 2016-03-69 | 33 | DIBBS |
| 3120-00-479-9204 | 2016-02-40 | 48 | DIBBS |
| 3120-00-479-9204 | 2015-12-349 | 20 | DIBBS |
| 3120-00-479-9204 | 2015-12-341 | 24 | DIBBS |
| 3120-00-479-9204 | 2015-11-328 | 1 | DIBBS-RFPs |
| 3120-00-479-9204 | 2015-10-287 | 28 | DIBBS |
| 3120-00-479-9204 | 2015-10-278 | 28 | DIBBS |
| 3120-00-479-9204 | 2007-12-340 | 20 | United States |
Cross Reference | NSN 3120-00-479-9204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 420394-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-479-9204
Technical Data | NSN 3120-00-479-9204
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 2.1875 INCHES MINIMUM AND 2.2188 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.5020 INCHES MINIMUM AND 2.5030 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.0030 INCHES MINIMUM AND 2.0040 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 1 HOLE |
| HOLE DIAMETER | 0.5000 INCHES NOMINAL FIRST |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF BODY |
| LUBRICANT ACCOMMODATION STYLE | 62 GROOVED DOUBLE LOOP AND 69 GROOVED CIRCULAR |
| MANUFACTURERS CODE | 80020 |
| DESIGN CONTROL REFERENCE | 420394-1 |
Restrictions/Controls & Freight Information | NSN 3120-00-479-9204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-479-9204
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
