NSN 3120-00-476-6911 615F443G01, 00-476-6911, 004766911
Product Details | SPHERICAL PLAIN BEARING
3120-00-476-6911 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 615F443G01, 3120-00-476-6911, 00-476-6911, 3120004766911, 004766911
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 00-476-6911 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

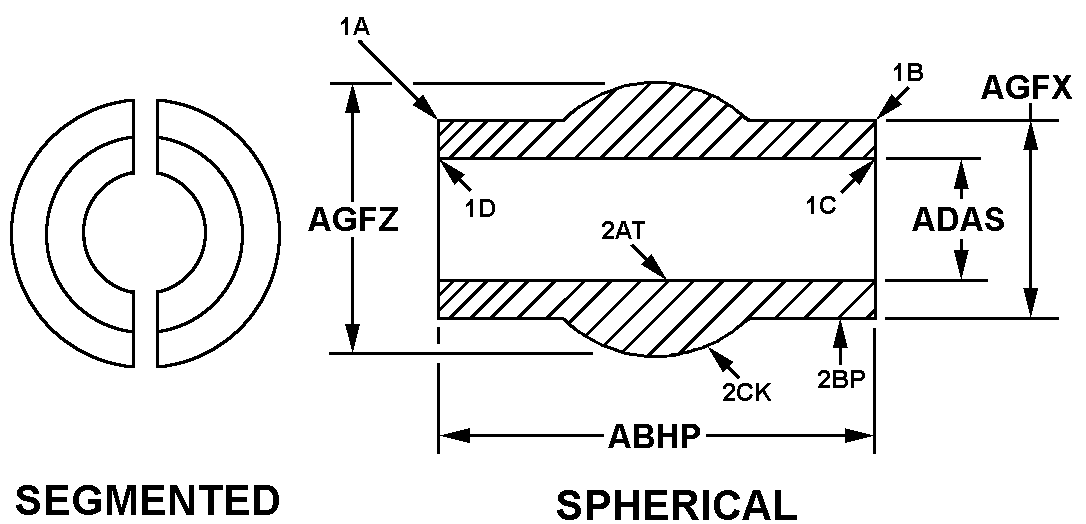

Drawings & Photos | NSN 3120-00-476-6911
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-476-6911
Technical Data | NSN 3120-00-476-6911
| Characteristic | Specifications |
|---|---|
| MATERIAL | TIN ALLOY INNER LAYER |
| STYLE DESIGNATOR | 12B SEGMENTED |
| OVERALL LENGTH | 4.3400 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 7.3770 INCHES MINIMUM AND 7.3790 INCHES MAXIMUM |
| EXTENSION OUTSIDE DIAMETER | 11.9400 INCHES NOMINAL |
| SPHERICAL BODY DIAMETER | 14.2500 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SURFACE FINISH | 32.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY |
| MANUFACTURERS CODE | 90099 |
| DESIGN CONTROL REFERENCE | 615F443G01 |
Restrictions/Controls & Freight Information | NSN 3120-00-476-6911
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
