NSN 3120-00-355-0071 0051301, 00513010, 0051301-0
Product Details | THRUST WASHER BEARING
3120-00-355-0071 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: 0051301, 00513010, 0051301-0, 051301, 3120-00-355-0071, 00-355-0071, 3120003550071, 003550071
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-355-0071 | 13211 ( BEARING, WASHER, THRUST ) |
Drawings & Photos | NSN 3120-00-355-0071
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-355-0071
Technical Data | NSN 3120-00-355-0071
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AC514,FSCM 90940 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 56.0 ROCKWELL C MINIMUM AND 63.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | 23 ROUND |
| OUTSIDE DIAMETER | 2.5000 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| CROSS-SECTIONAL SHAPE STYLE | 35 RECTANGULAR |
| OVERALL THICKNESS | 0.1830 INCHES MINIMUM AND 0.1870 INCHES MAXIMUM |

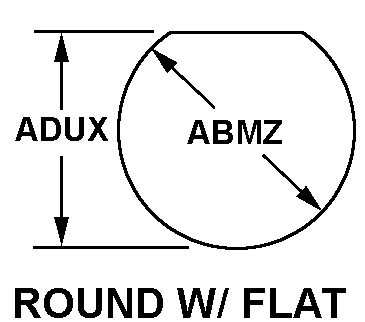

| CENTER HOLE SHAPE STYLE | 44 ROUND W/FLAT |
| DIAMETER | 1.5100 INCHES MINIMUM AND 1.5200 INCHES MAXIMUM |
| CENTER HOLE WIDTH | 1.3950 INCHES MINIMUM AND 1.4050 INCHES MAXIMUM |
| SURFACE CONDITION | GROUND |
| FEATURES PROVIDED | CASEHARDENED |
Restrictions/Controls & Freight Information | NSN 3120-00-355-0071
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
