NSN 3120-00-179-7283 MS17795126, MS17795-126, AA10085
Product Details | SLEEVE BEARING
3120-00-179-7283 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: MS17795126, MS17795-126, AA10085, AA-1008-5, 3120-00-179-7283, 00-179-7283, 3120001797283, 001797283
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JAN 1969 | 00-179-7283 | 13205 ( BEARING, SLEEVE ) |

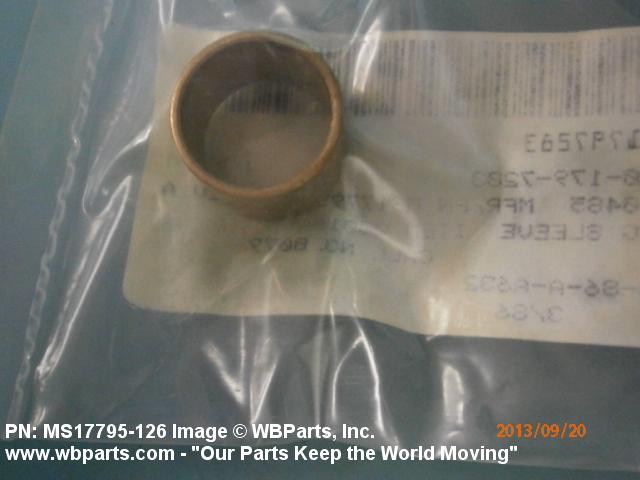

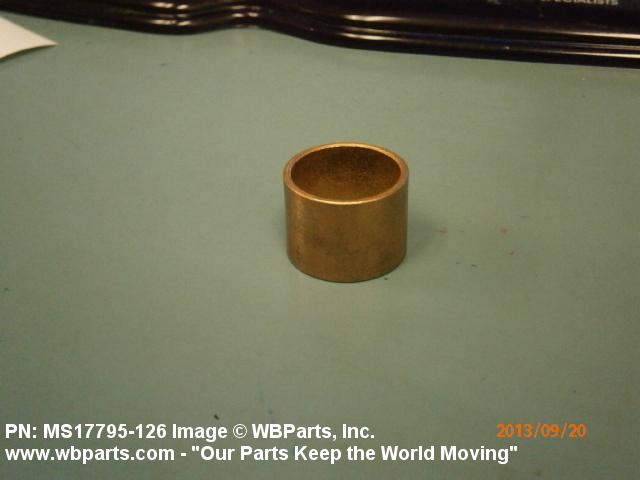

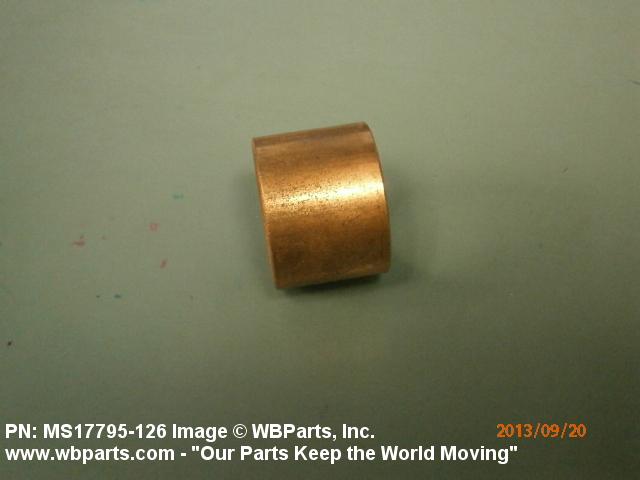

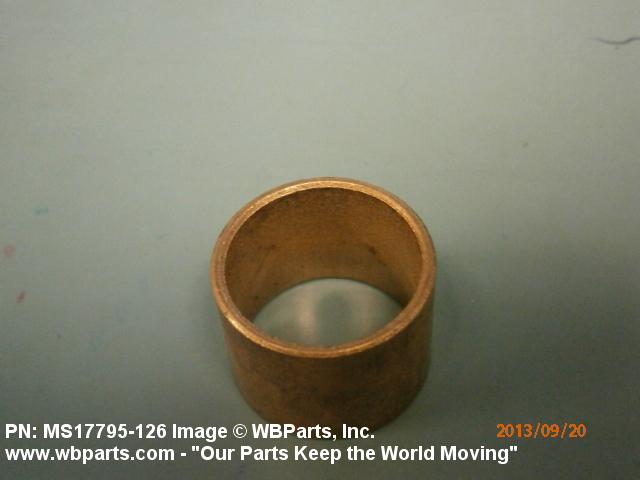

Drawings & Photos | NSN 3120-00-179-7283
Demand History | NSN 3120-00-179-7283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-179-7283 | 2023-03-67 | 3 | DIBBS |
| 3120-00-179-7283 | 2013-07-189 | 55 | United States |
| 3120-00-179-7283 | 2009-05-131 | 77 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-179-7283
Technical Data | NSN 3120-00-179-7283
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-5687,TY 1,COMP A OR B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 70.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

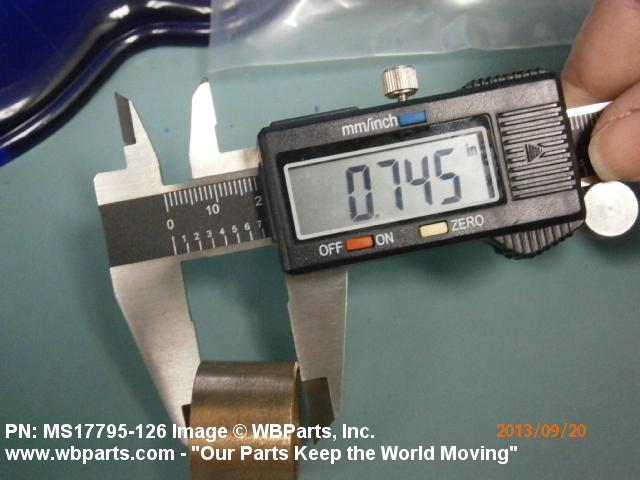

| OVERALL LENGTH | 0.7450 INCHES MINIMUM AND 0.7550 INCHES MAXIMUM |

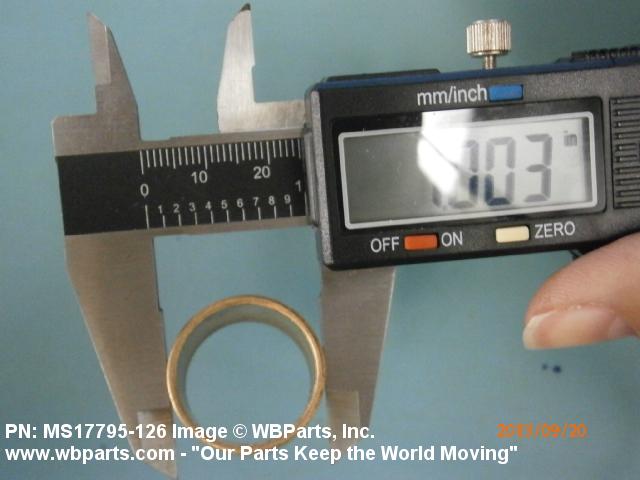

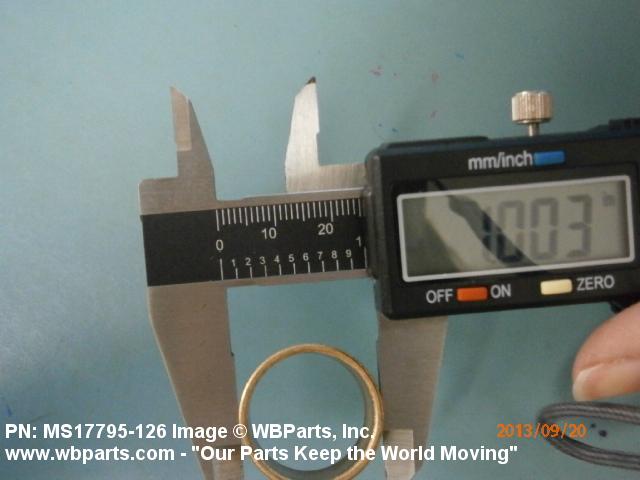

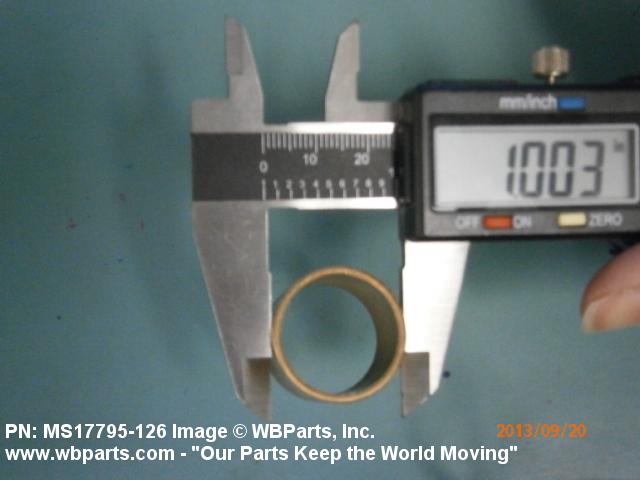

| BODY OUTSIDE DIAMETER | 1.0020 INCHES MINIMUM AND 1.0030 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.8760 INCHES MINIMUM AND 0.8770 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| LUBRICATION MATERIAL | LUBRICATING OIL, MIL-L-15016, SYMBOL 2190 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17795-126 |
Restrictions/Controls & Freight Information | NSN 3120-00-179-7283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-179-7283
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
