NSN 3120-00-025-7746 11677923-1, 00-025-7746, 116779231
Product Details | SLEEVE BUSHING
3120-00-025-7746 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 11677923-1, 3120-00-025-7746, 00-025-7746, 3120000257746, 116779231, 000257746
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 OCT 1972 | 00-025-7746 | 13206 ( BUSHING, SLEEVE ) |

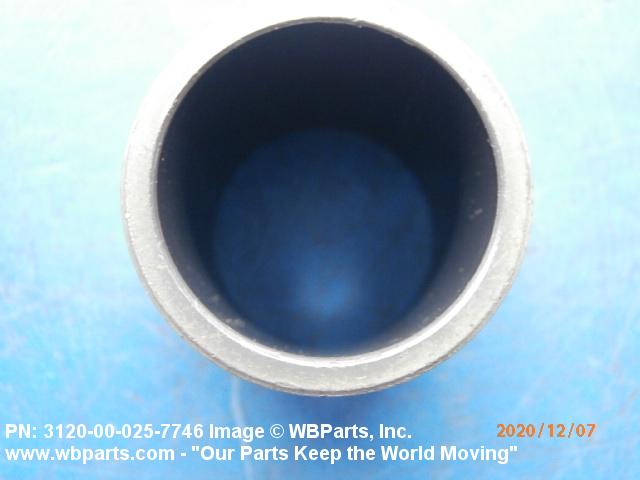

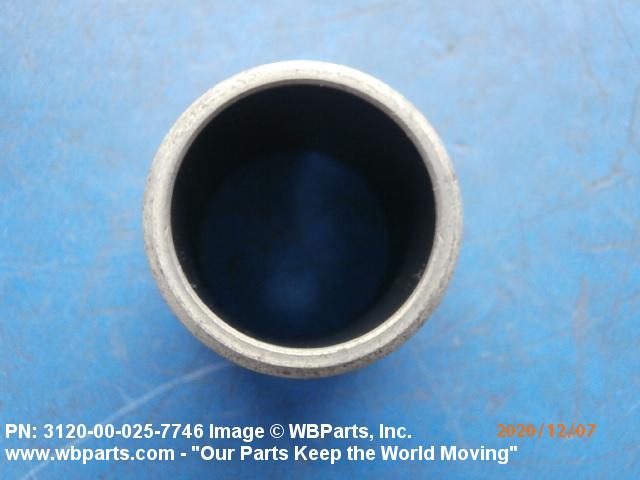

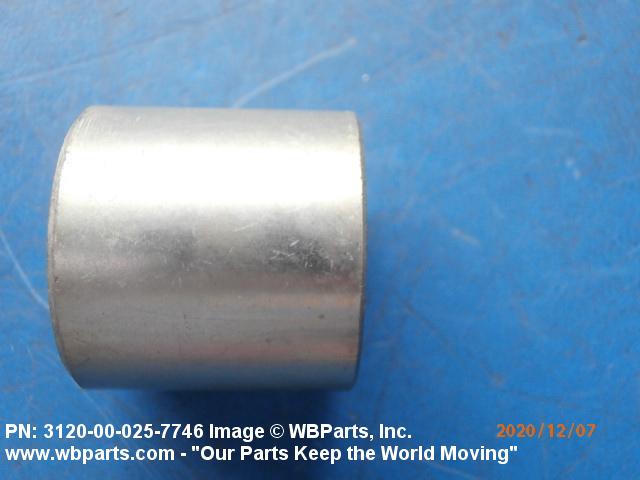

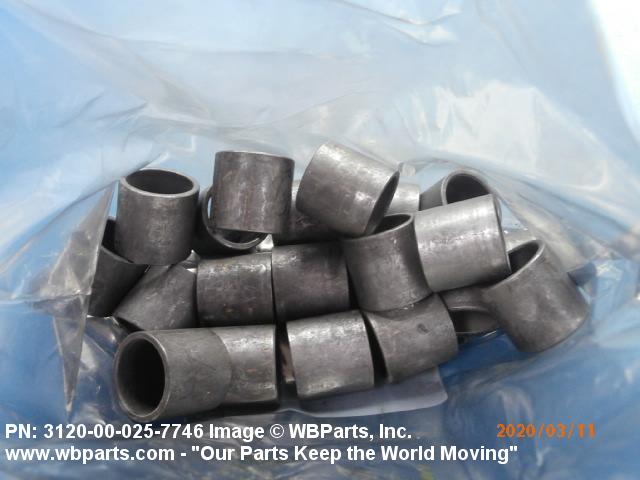

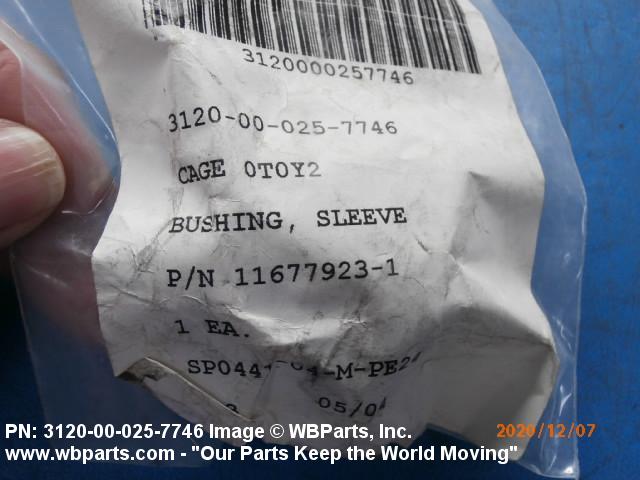

Drawings & Photos | NSN 3120-00-025-7746
Demand History | NSN 3120-00-025-7746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-00-025-7746 | 2019-11-308 | 20 | Denmark |
| 116779231 | 2019-06-172 | 325 | US |
| 3120-00-025-7746 | 2013-07-199 | 635 | DIBBS |
| 3120-00-025-7746 | 2012-09-274 | 1203 | DIBBS |
| 3120-00-025-7746 | 2012-09-249 | 36048 | DIBBS |
| 3120-00-025-7746 | 2012-06-158 | 277 | DIBBS |
| 3120-00-025-7746 | 2012-05-127 | 234 | DIBBS |
| 3120-00-025-7746 | 2012-04-96 | 209 | DIBBS |
| 3120-00-025-7746 | 2012-04-94 | 209 | DIBBS |
| 3120-00-025-7746 | 2012-03-80 | 199 | DIBBS |
| 3120-00-025-7746 | 2010-09-260 | 585 | DIBBS |
| 3120-00-025-7746 | 2010-05-132 | 281 | DIBBS |
| 3120-00-025-7746 | 2010-05-132 | 408 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-00-025-7746
Technical Data | NSN 3120-00-025-7746
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

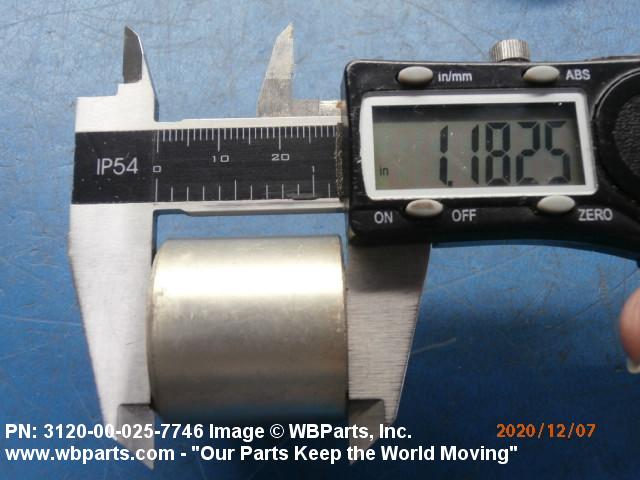

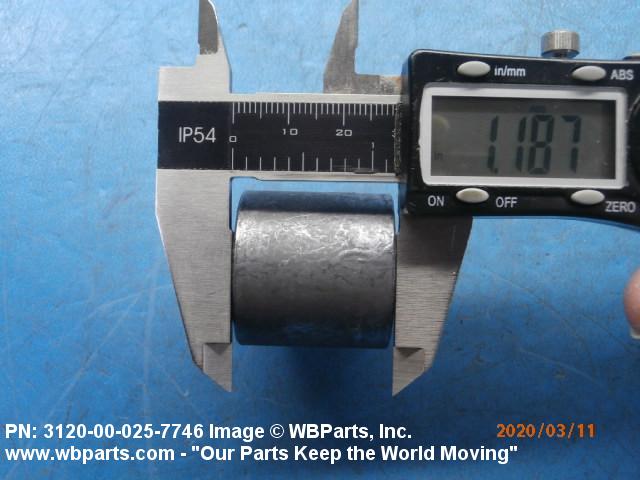

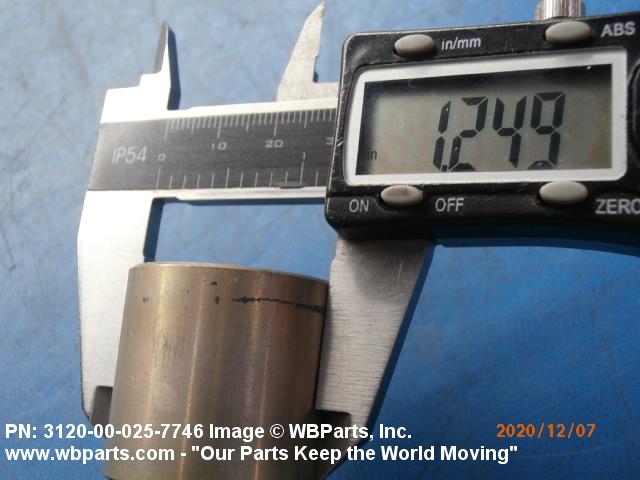

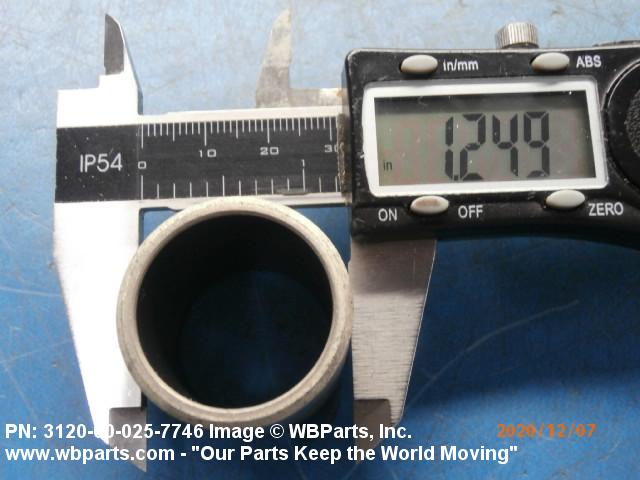

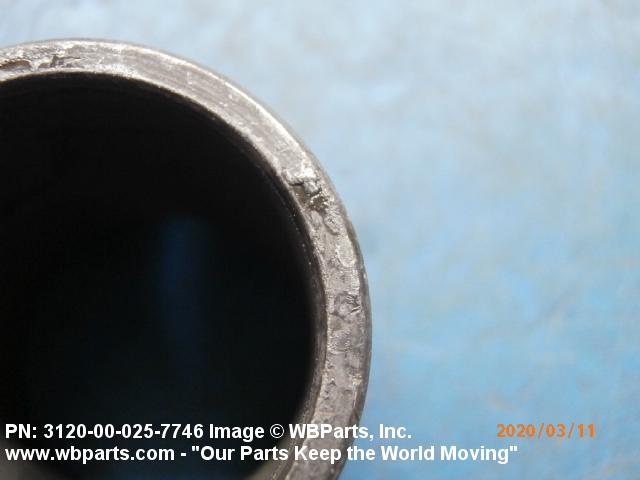

| OVERALL LENGTH | 1.1800 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.2480 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 1.0290 INCHES MINIMUM AND 1.0410 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0160 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-00-025-7746
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
