NSN 3110-01-486-2456 455206-AB2RS2/LHT55, 455206AB2RS2LHT55, 455206AB2RS2LHT55VU150
Product Details | BEARING BALL
3110-01-486-2456 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 455206-AB2RS2/LHT55, 455206AB2RS2LHT55, 455206AB2RS2LHT55VU150, 455206-AB2RS2LHT55VU150 , 5206DD, 5206SBZZH501, 5206SBZZ-H501, 7001377, 3110-01-486-2456, 01-486-2456, 3110014862456, 014862456
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 JUN 2001 | 01-486-2456 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-01-486-2456
Demand History | NSN 3110-01-486-2456
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-486-2456 | 2020-12-336 | 1 | DIBBS-RFPs |
| 3110-01-486-2456 | 2016-02-49 | 50 | DIBBS |
| 3110-01-486-2456 | 2016-02-41 | 50 | DIBBS |
| 3110-01-486-2456 | 2015-11-320 | 1 | DIBBS-RFPs |
| 3110-01-486-2456 | 2015-08-216 | 124 | DIBBS |
| 3110-01-486-2456 | 2015-07-188 | 124 | DIBBS |
| 3110-01-486-2456 | 2014-08-217 | 108 | DIBBS |
| 5206SBZZH501 | 2011-02-40 | 30 | FI |
| 5206SBZZH501 | 2010-10-298 | 5 | US |
| 3110-01-486-2456 | 2009-08-232 | 357 | DIBBS |
| 3110-01-486-2456 | 2009-04-98 | 359 | DIBBS |
| 3110-01-486-2456 | 2008-06-155 | 381 | DIBBS |
| 3110-01-486-2456 | 2008-05-127 | 8 | DIBBS |
| 5206DD | 2008-02-36 | 8 | US |
| 3110-01-486-2456 | 2007-10-278 | 1 | DIBBS |
| 3110-01-486-2456 | 2007-08-229 | 250 | DIBBS |
Cross Reference | NSN 3110-01-486-2456
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 455206-AB2RS2/LHT55 | 7H329 | SKF INDUSTRIES INC |
| 455206-AB2RS2LHT55VU150 | 52676 | SKF USA INC. |
| 5206DD | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| 5206SBZZ-H501 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 7001377 | 01212 | FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT |
| 7001377 | 0C858 | SKF BEARING INDUSTRIES CO |
| 7001377 | 0LTL1 | NTN BEARING CORPORATION OF AMERICA |
| 7001377 | 0MLM6 | MARINE CORPS SYSTEMS COMMAND PROGRAM MANAGER |
| 7001377 | 7H329 | SKF INDUSTRIES INC |
| 7001377 | A9271 | GORIZIANE GROUP SPA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-486-2456
Related Products | NSN 3110-01-486-2456
Technical Data | NSN 3110-01-486-2456
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OVERALL |

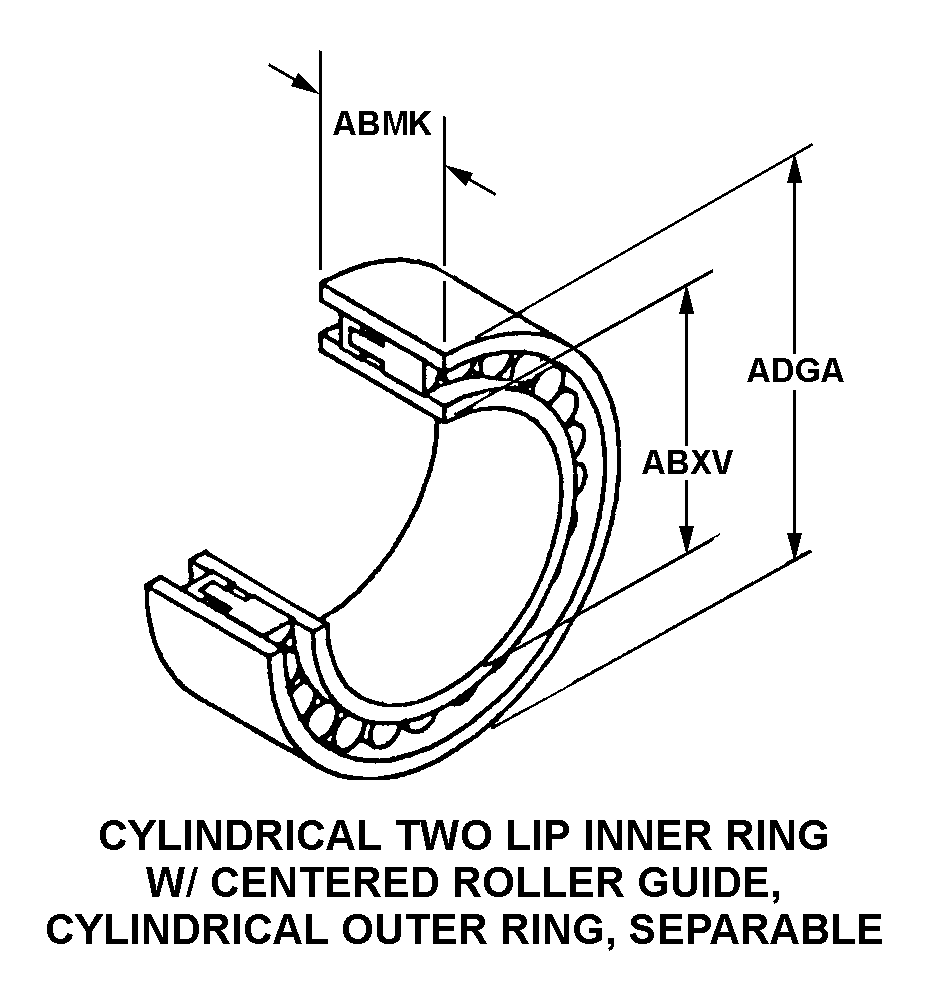

| STYLE DESIGNATOR | 259 CYLINDRICAL TWO LIP INNER RING W/CENTERED ROLLER GUIDE, CYLINDRICAL OUTER RING SEPARABLE |
| OVERALL WIDTH | 1.0575 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM |
| BORE DIAMETER | 1.1807 INCHES MINIMUM AND 1.1811 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.4404 INCHES MINIMUM AND 2.4409 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 2350-01-081-8138 |
| III SUPPLEMENTARY FEATURES | MATERIAL: CAGE - STEEL, SEALS - FLOURO CARBON RUBBER (VITON), GREASE - MOBILE 28; LOAD RADIAL: RADIAL LOAD OF 6,660 LB BASED ON INNER RING ROTATION |
Restrictions/Controls & Freight Information | NSN 3110-01-486-2456
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-486-2456
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
