NSN 3110-01-461-9091 M81793/8-FD1C2N1, M817938FD1C2N1, 01-461-9091
Product Details | ANNULAR BALL BEARING
3110-01-461-9091 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: M81793/8-FD1C2N1, M817938FD1C2N1, 3110-01-461-9091, 01-461-9091, 3110014619091, 014619091
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 JAN 1999 | 01-461-9091 | 00014 ( BEARING, BALL, ANNULAR ) |

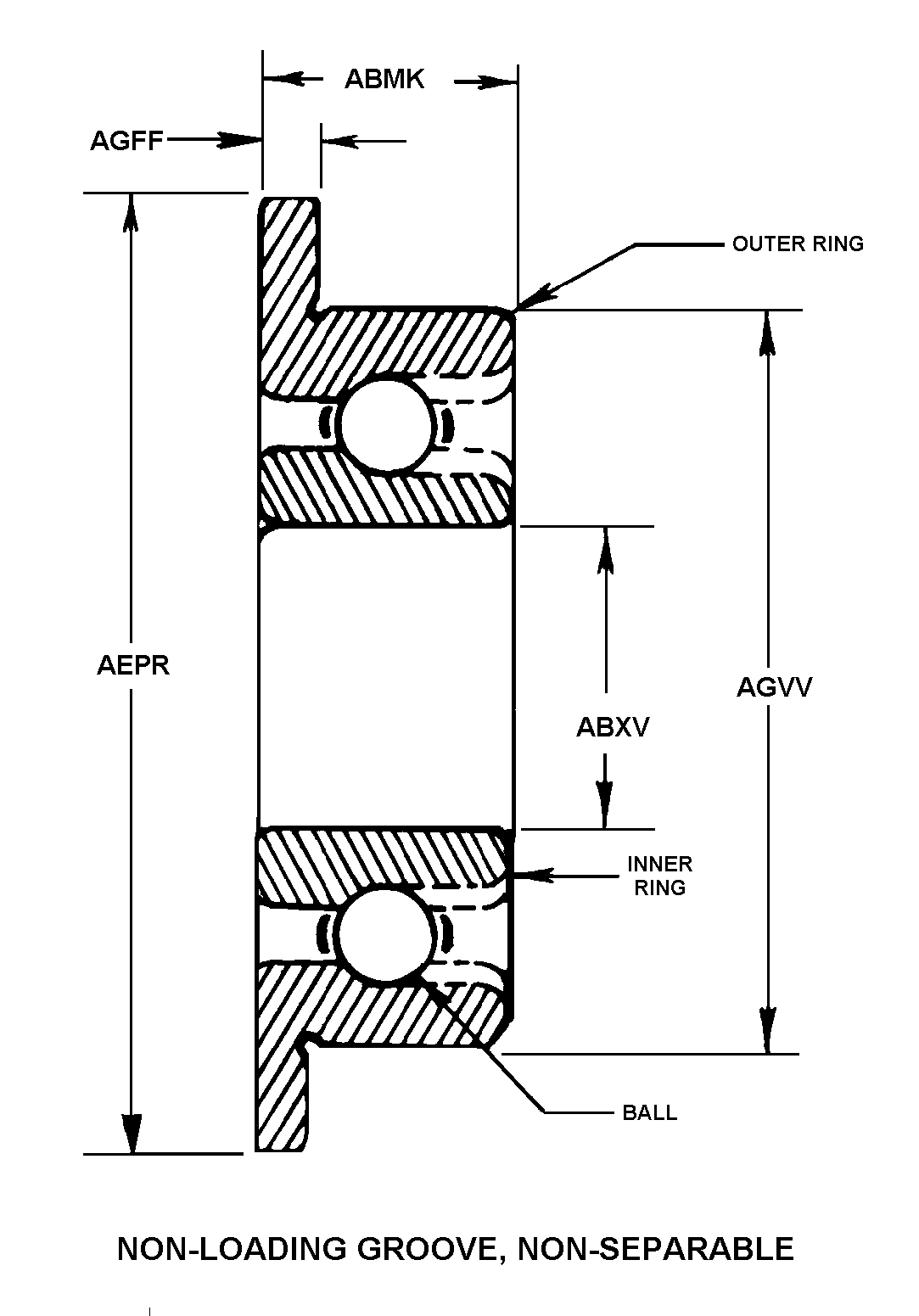

Drawings & Photos | NSN 3110-01-461-9091
Cross Reference | NSN 3110-01-461-9091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M81793/8-FD1C2N1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-461-9091
Technical Data | NSN 3110-01-461-9091
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C SEPARATOR SLUG |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 (UNS44004) 440C FED SPEC 1ST MATERIAL RESPONSE SEPARATOR SLUG |
| STYLE DESIGNATOR | 14A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.1406 INCHES NOMINAL |
| BORE DIAMETER | 0.1250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.3590 INCHES NOMINAL |
| FLANGE WIDTH | 0.0310 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 0.3125 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO. 7P |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| III END ITEM IDENTIFICATION | C-17 ACFT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M81793/8-FD1C2N1 |
Restrictions/Controls & Freight Information | NSN 3110-01-461-9091
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-01-461-9091
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | M | RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
