NSN 3110-01-440-5933 11580713, 01-440-5933, 014405933
Product Details | OUTER BEARING RING
3110-01-440-5933 The outer component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Part Alternates: 11580713, 3110-01-440-5933, 01-440-5933, 3110014405933, 014405933
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 JAN 1997 | 01-440-5933 | 00029 ( RING, BEARING, OUTER ) |
Drawings & Photos | NSN 3110-01-440-5933
Demand History | NSN 3110-01-440-5933
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-440-5933 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-01-440-5933 | 2016-05-130 | 145 | DIBBS |
| 3110-01-440-5933 | 2015-08-240 | 1 | DIBBS-RFPs |
| 3110-01-440-5933 | 2015-05-132 | 150 | DIBBS |
| 3110-01-440-5933 | 2015-04-112 | 272 | DIBBS |
| 3110-01-440-5933 | 2015-03-75 | 102 | DIBBS |
| 3110-01-440-5933 | 2015-03-71 | 167 | DIBBS |
| 3110-01-440-5933 | 2015-02-57 | 72 | DIBBS |
| 3110-01-440-5933 | 2015-02-56 | 130 | DIBBS |
| 3110-01-440-5933 | 2015-02-39 | 72 | DIBBS |
| 3110-01-440-5933 | 2014-12-345 | 61 | DIBBS |
| 3110-01-440-5933 | 2014-07-196 | 47 | DIBBS |
Cross Reference | NSN 3110-01-440-5933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11580713 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-440-5933
Related Products | NSN 3110-01-440-5933
Technical Data | NSN 3110-01-440-5933
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

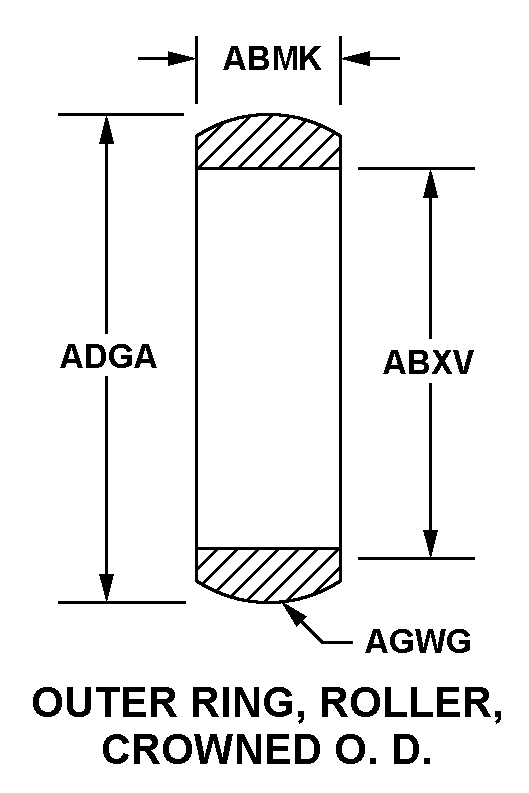

| STYLE DESIGNATOR | 504 OUTER RING, ROLLER, CROWNED OD |
| OVERALL WIDTH | 0.7800 INCHES MINIMUM AND 0.7900 INCHES MAXIMUM |
| BORE DIAMETER | 10.8300 INCHES MINIMUM AND 10.8400 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 11.1300 INCHES MINIMUM AND 11.1400 INCHES MAXIMUM |
| CROWN RADIUS | 0.2600 INCHES MINIMUM AND 0.2800 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | M109A5 155MM SP HOWITZER |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 11580713 |
Restrictions/Controls & Freight Information | NSN 3110-01-440-5933
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-440-5933
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | K | Combat Vehicles |
| Weapons Systems/End Item or Homogeneous Group | KF | Howitzer, Full Tracked, Self- propelled 155mm M109 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
