NSN 3110-01-365-1862 MBEU140409, 10107575 , 01-365-1862
Product Details | BEARING RETAINING PLATE
3110-01-365-1862 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: MBEU140409, 10107575 , 3110-01-365-1862, 01-365-1862, 3110013651862, 013651862
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 02 OCT 1992 | 01-365-1862 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-365-1862
Demand History | NSN 3110-01-365-1862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MBEU140409 | 2024-01-03 | 9 | DIBBS |
| MBEU140409 | 2023-04-114 | 9 | DIBBS |
| MBEU140409 | 2022-09-271 | 3 | DIBBS |
| MBEU140409 | 2022-08-234 | 1 | DIBBS |
| MBEU140409 | 2022-06-159 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-365-1862
Related Products | NSN 3110-01-365-1862
Technical Data | NSN 3110-01-365-1862
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/11,T73 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PLASTIC POLYURETHANE OUTER FACE AS MOUNTED |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-83286 MIL SPEC SINGLE TREATMENT RESPONSE OUTER FACE AS MOUNTED |

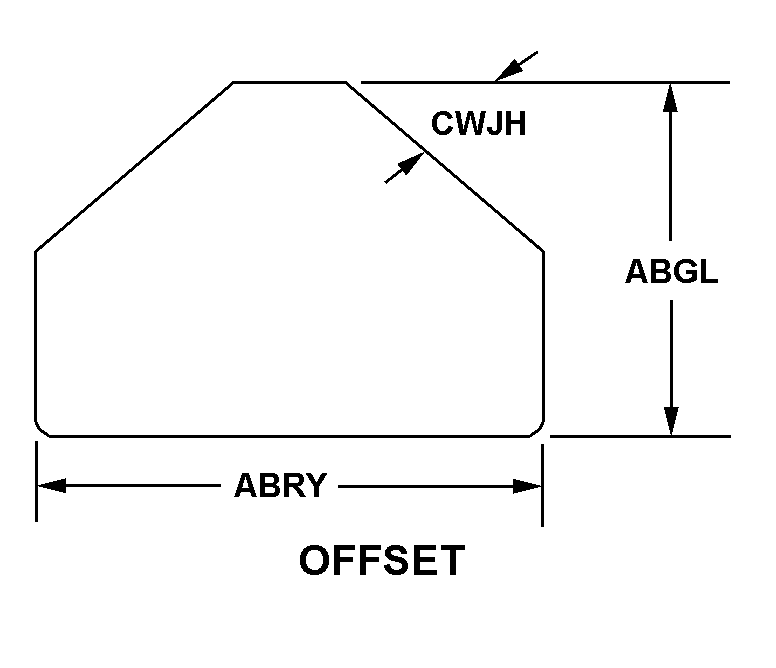

| STYLE DESIGNATOR | B48 OFFSET |
| LENGTH | 1.2930 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | C4A RAISED SURFACE WITH APERTURE |
| APERTURE DIAMETER | 0.4420 INCHES MINIMUM AND 0.4620 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.1200 INCHES MINIMUM AND 0.1400 INCHES MAXIMUM |
| OUTSIDE RAISED SURFACE DIAMETER | 0.5470 INCHES MINIMUM AND 0.5670 INCHES MAXIMUM |
| RAISED SURFACE HEIGHT | 0.0500 INCHES MINIMUM AND 0.0700 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.1590 INCHES MINIMUM AND 0.1790 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D4 HORIZONTAL CENTERLINE |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 0.8430 INCHES MINIMUM AND 0.8630 INCHES MAXIMUM |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.7200 INCHES MINIMUM AND 0.7400 INCHES MAXIMUM |
| SPECIAL FEATURES | LEFT SIDE FLANGE OFFSET 5 DEG 30 MIN,0.400 IN FROM APERTURE CENTER LINE |
Restrictions/Controls & Freight Information | NSN 3110-01-365-1862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-365-1862
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
