NSN 3110-01-313-9427 7236794P1, 01-313-9427, 013139427
Product Details | BEARING RETAINING PLATE
3110-01-313-9427 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 7236794P1, 3110-01-313-9427, 01-313-9427, 3110013139427, 013139427
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 JAN 1990 | 01-313-9427 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-313-9427
Cross Reference | NSN 3110-01-313-9427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7236794P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-313-9427
Related Products | NSN 3110-01-313-9427
Technical Data | NSN 3110-01-313-9427
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OR STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582,COND A ASSN STD ALL MATERIAL RESPONSES OR ASTM A581,COND A ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072-E300 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

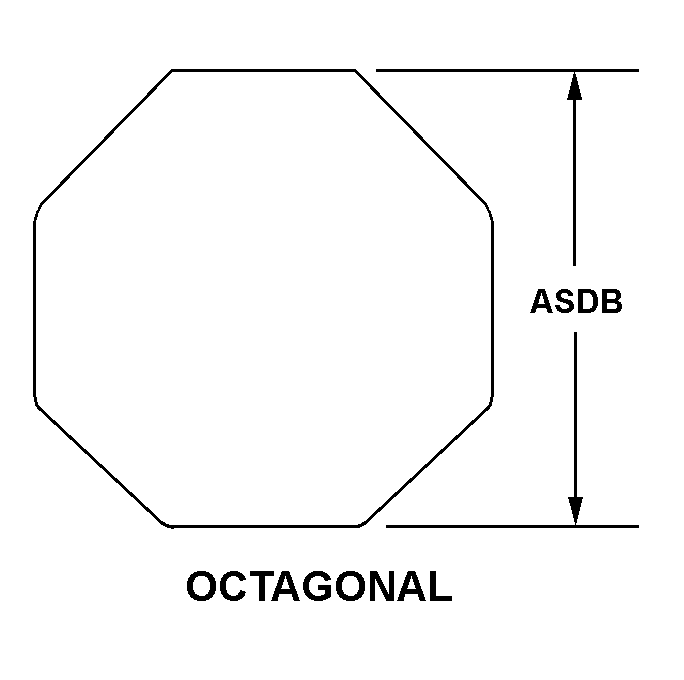

| STYLE DESIGNATOR | B46 OCTAGONAL |
| WIDTH ACROSS FLATS | 2.300 INCHES NOMINAL |

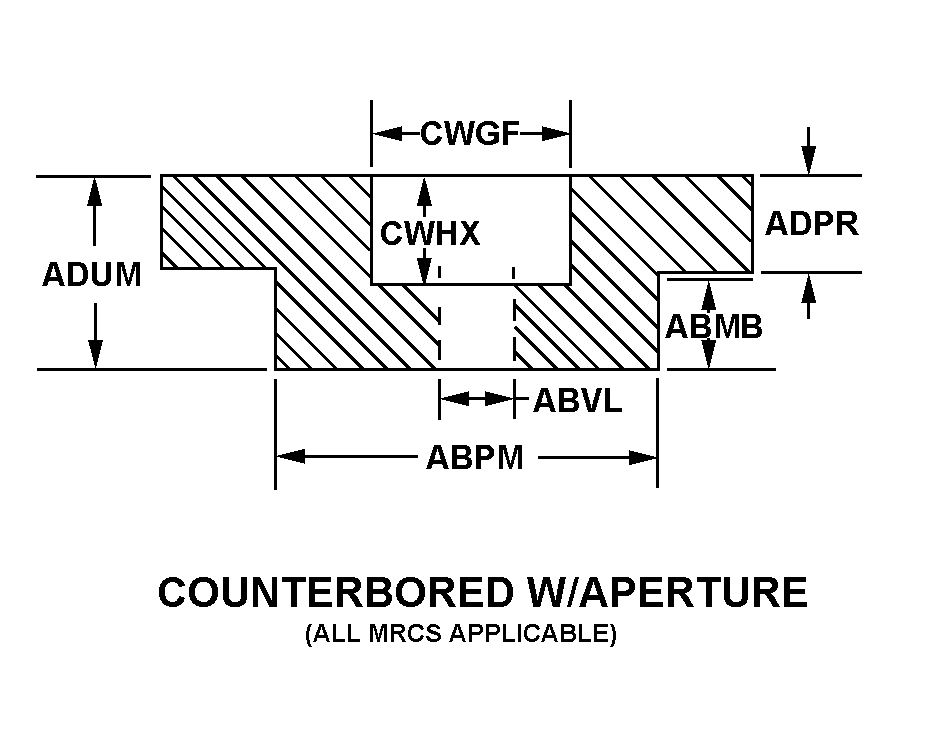

| CROSS-SECTIONAL SHAPE STYLE | C22A COUNTERBORED WITH APERTURE |
| MINOR THICKNESS | 0.840 INCHES NOMINAL |
| BODY DIAMETER | 1.200 INCHES NOMINAL |
| APERTURE DIAMETER | 0.9991 INCHES MINIMUM AND 0.9994 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 1.500 INCHES NOMINAL |
| BODY THICKNESS | 0.300 INCHES NOMINAL |
| OVERALL THICKNESS | 1.140 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.177 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| MOUNTING BOLT CIRCLE DIAMETER | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES APERTURE |
| SPECIAL FEATURES | INTERNAL FLANGE RIGHT END,0.880 IN. HOLE DIA,0.090 IN. T |
| MANUFACTURERS CODE | 03538 |
| DESIGN CONTROL REFERENCE | 7236794P1 |
Restrictions/Controls & Freight Information | NSN 3110-01-313-9427
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-313-9427
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
